MAGUS Metal 630 BD metallographic microscope - MAGUS

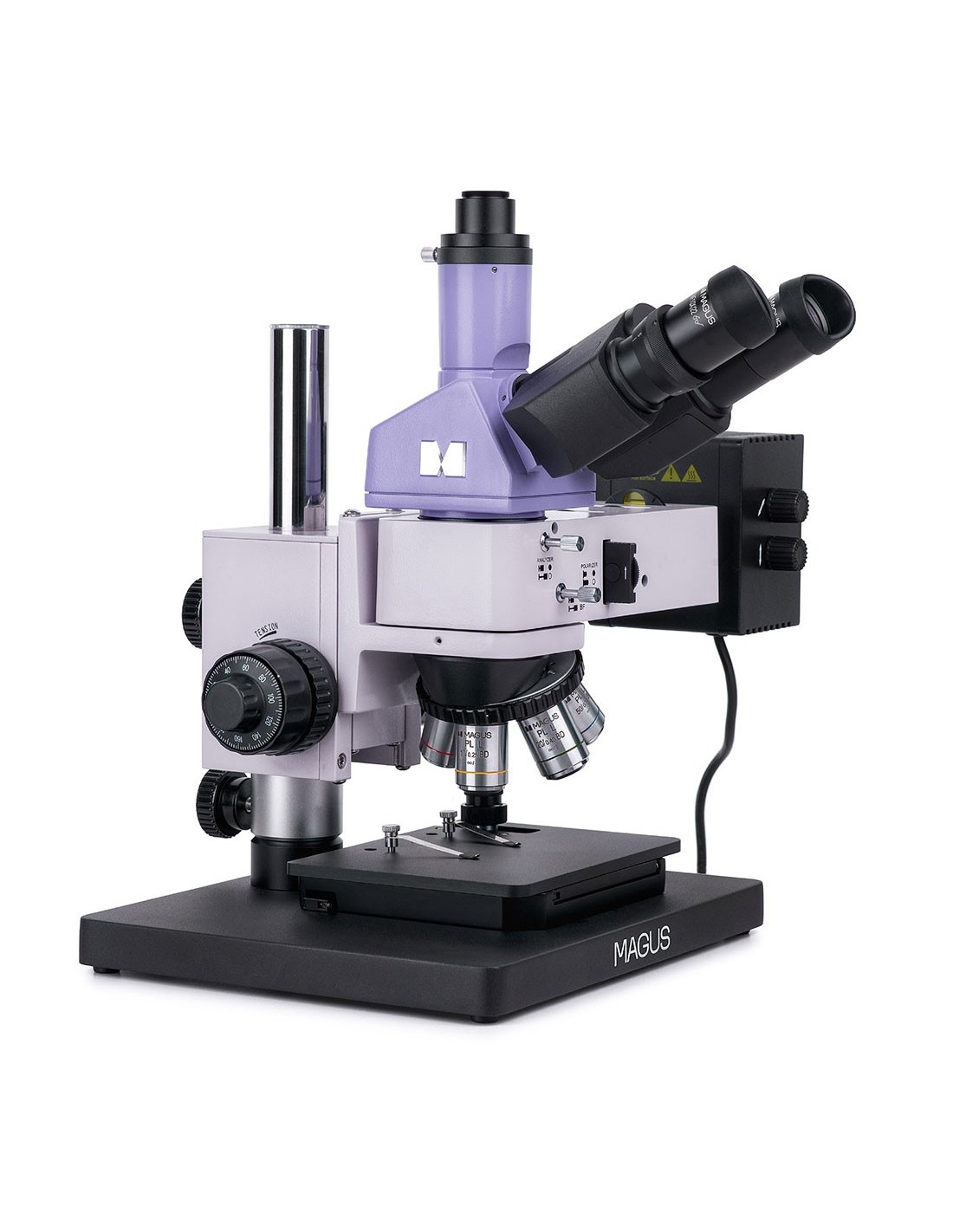

MAGUS Metal 630 BD metallographic microscope for bright field, dark field and polarization microscopy techniques. Powerful halogen illumination produces a quality image with any objective lens and microscopy method. The microscope is designed for quality control and study of the microstructure of semiconductor materials, metals and opaque objects. It is used to conduct research at manufacturing plants, research center laboratories and university departments.

Optics

The trinocular head is equipped with a trinocular tube in which the digital camera (not included) is mounted. You can direct the light beam onto the eyepiece or trinocular tube using a light path selection knob on the camera/eyepiece. The trinocular head is inclined at 30° to facilitate observation. The diopter adjustment ring is positioned on the left optical tube.

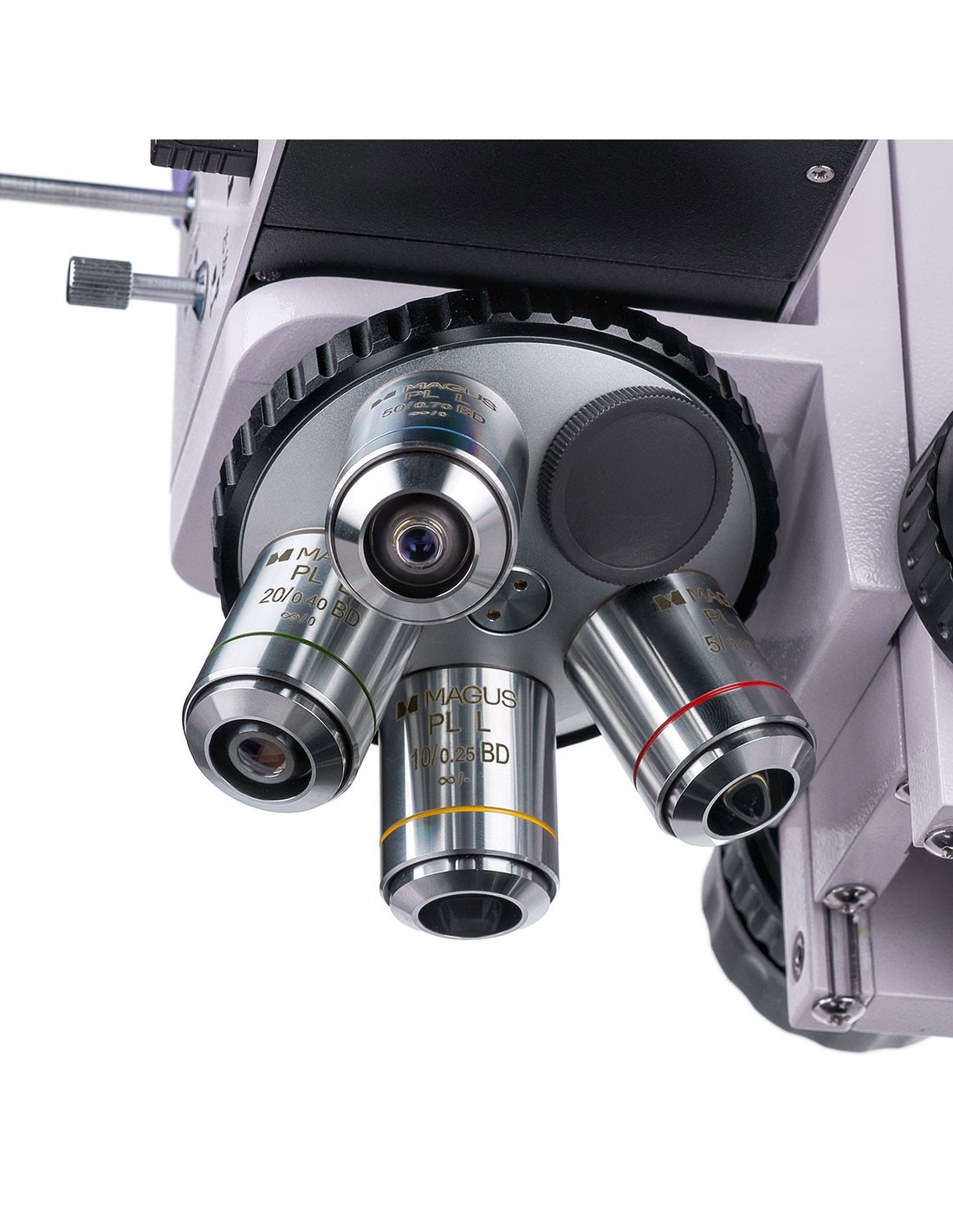

Once the lenses included in the kit have been mounted on the nosepiece, a slot for an additional lens will be available. All base objectives are planachromatic, with a long working distance, suitable for bright and dark field microscopy.

Illumination

For observations in dark field, the microscope has a higher power halogen lamp (50 W). In addition, the reflected light illumination system includes: a set of filters, field and aperture diaphragms, a dark field device, an integrated analyzer and a removable polarizer. The openings and light source can be centered. You can configure the Köhler illumination method.

Stage and focusing mechanism

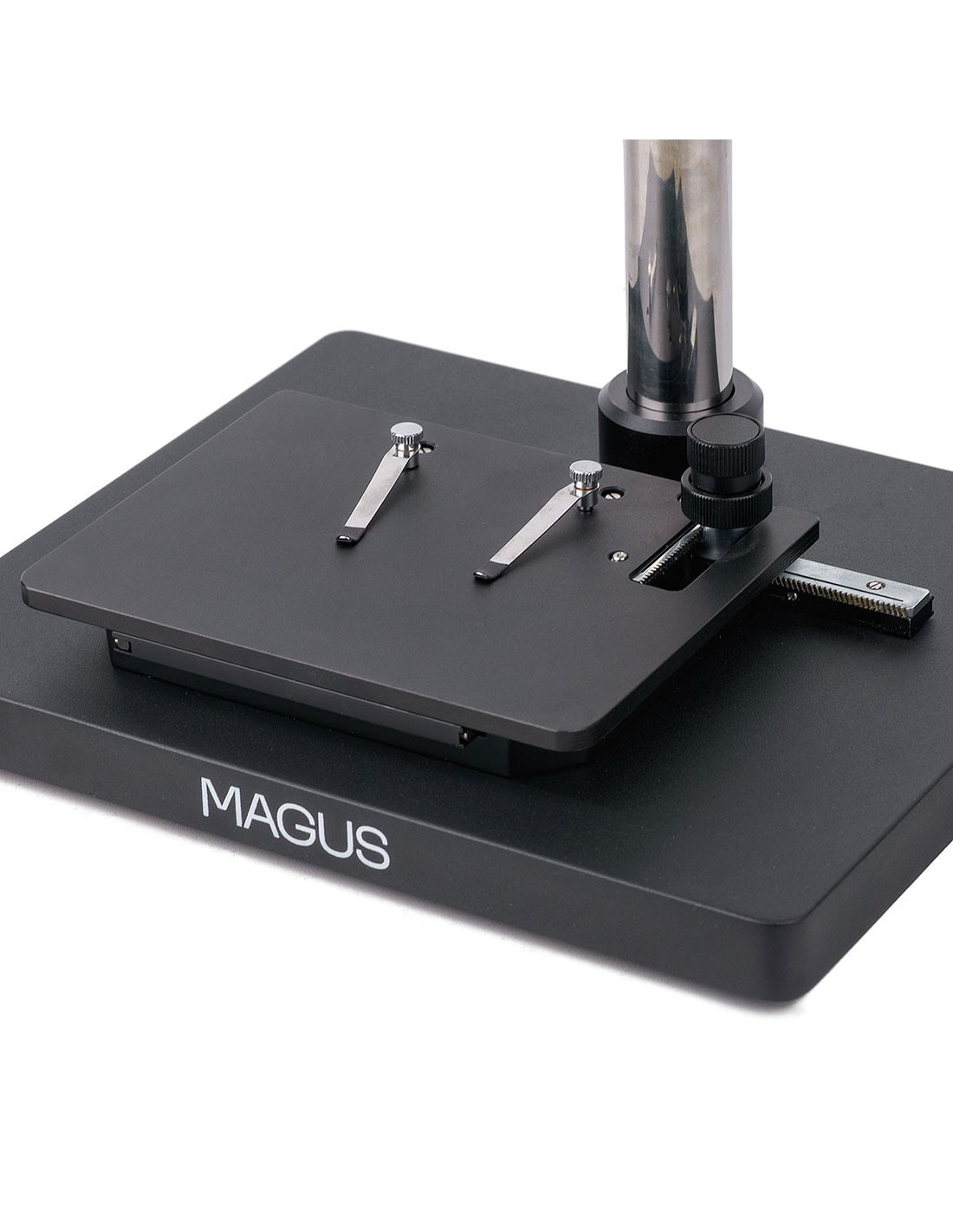

The microscope features a stand and focusing mechanism from interesting design and the analyzed sample can be of any size and height. It is also characterized by its small dimensions, which allow the microscope to be positioned on surfaces with a maximum height of 40 cm. The coarse and fine focus knobs are coaxial and are located on both sides of the microscope body. You can also adjust the coarse tension adjustment.

Accessories

Additional accessories of the MAGUS Metal 630 BD microscope can be ordered separately. These include compatible eyepieces, objectives with a long working distance for bright and dark field techniques, calibration slides and digital cameras.

Key features:

• Suitable for studying opaque specimens of any height and size
• Trinocular head with trinocular tube for mounting a digital camera and beam splitter 100:0 and 0:100
• Reflected light observations using bright field, dark field and polarization microscopy techniques
• The power of the halogen light source has been increased to 50 W (suitable for dark field)
• Aperture and field diaphragms for Köhler illumination and a set of color filters, centering of both diaphragms and a light source.
• Compact design support for mounting the microscope in small spaces
• A wide range of optional accessories

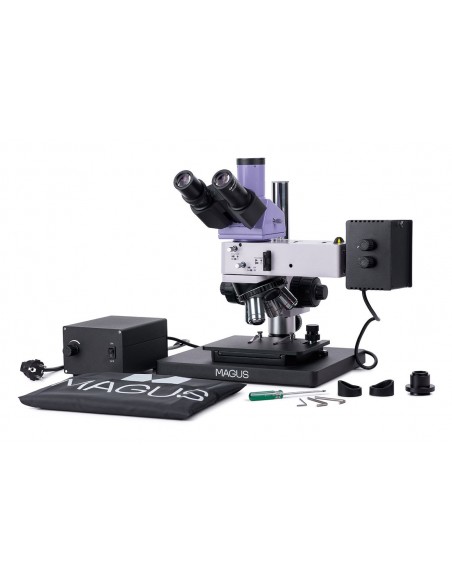

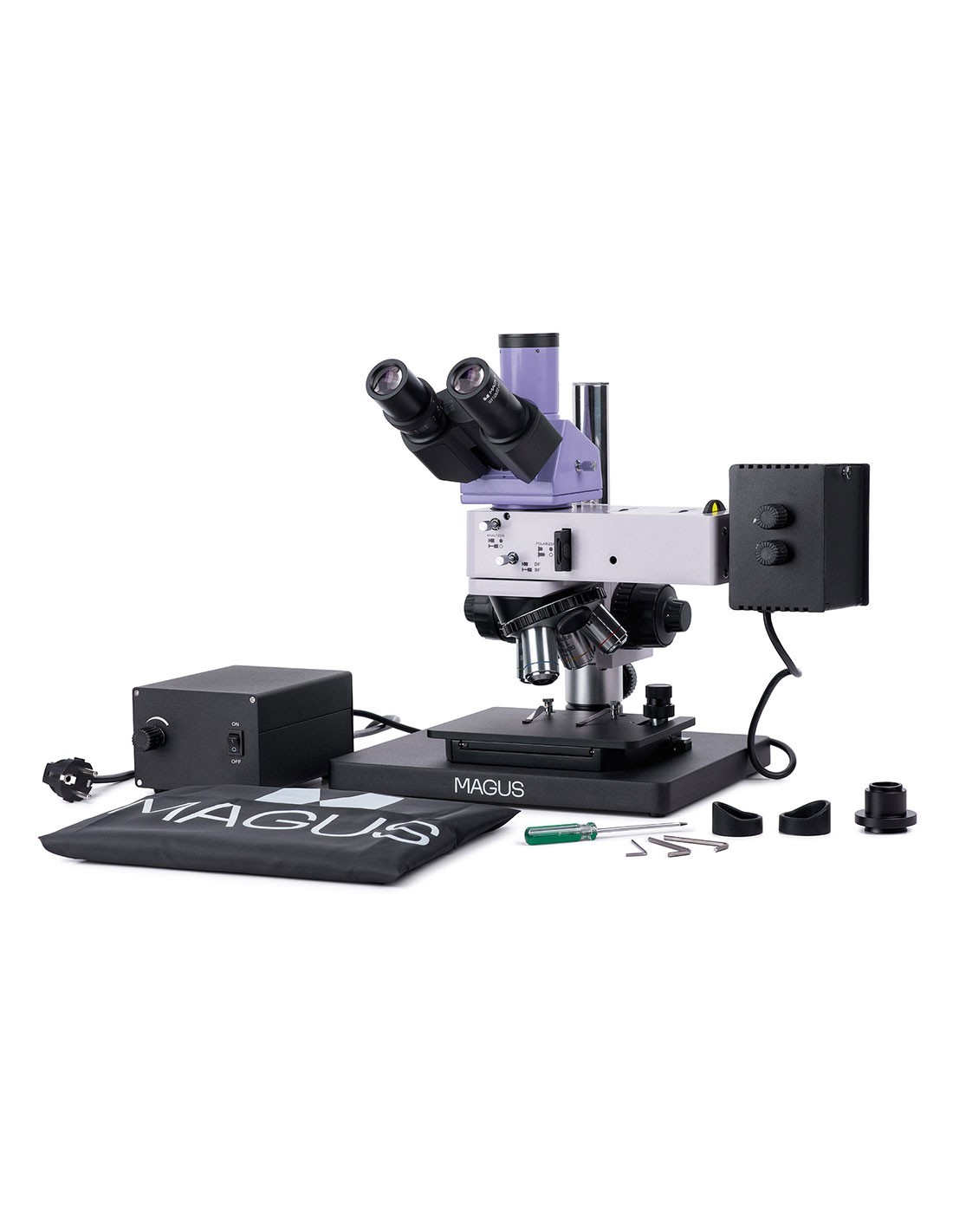

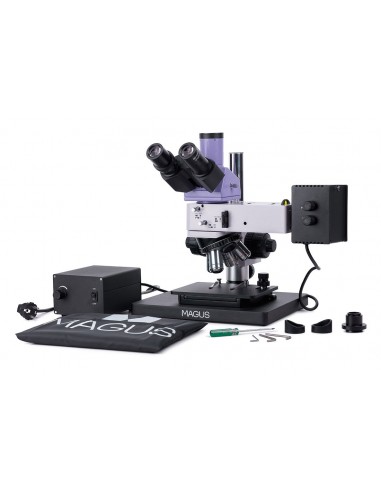

The package contains:

• Support with focusing mechanism, stage and nosepiece nosepiece
• Illuminator for reflected light observations with bulb housing
• Trinocular head
• Infinity planachromatic objective: PL L5x/0.12 BD WD 9.7 mm
• Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
• Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
• Planachromatic infinity objective: PL L50х/0.70 BD WD 2.5 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs .)
• 1x C-mount adapter
• Allen key
• Base with power input
• Power cable
• Reflected light illuminator power cable
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with graduated scale
• 12.5x/14 mm eyepiece (2 pcs.)
• 15x eyepiece /15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.)
• Objective plan achromatic at infinity: PL L40x/0.60 BD WD 3.0 mm
• Plan achromatic at infinity objective: PL L60x/0.70 BD WD 1.9 mm
• Objective infinity plan achromatic: PL L80x/0.80 BD WD 0.8 mm
• Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4 mm
• Digital camera
• Calibration glass
