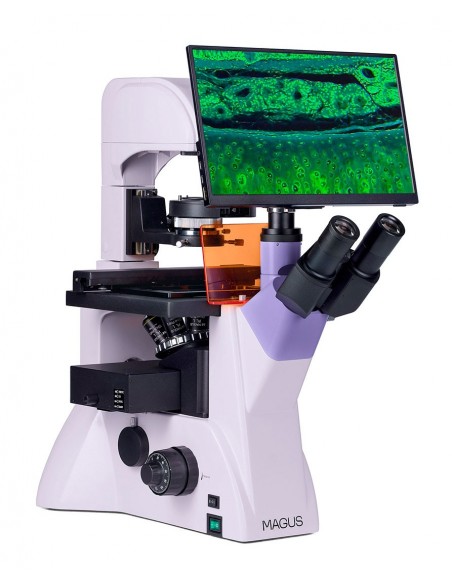

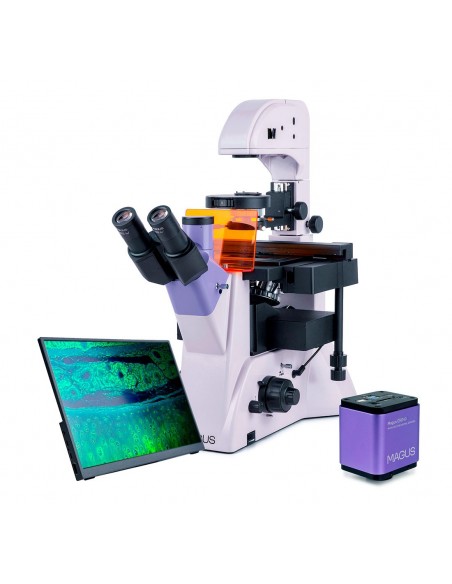

The MAGUS Lum V500L is an inverted microscope for fluorescence microscopy in reflected light and brightfield and phase contrast microscopy in transmitted light. For fluorescence microscopy, filters for DAPI, FITC and TRITC fluorochromes are used. The inverted design allows you to analyze samples contained in laboratory glassware, such as Petri dishes, test tubes, etc. The height of the glassware can reach 55 mm or 165 mm when the stand is tilted. The optics are designed for laboratory glassware with a 1.2 mm thick bottom. This microscope is ideal for research and routine work in the laboratory and can be used for educational purposes.
Digital camera
MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on the monitor resolution.
The camera is equipped with an 8 MP sensor and produces realistic images at a 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).

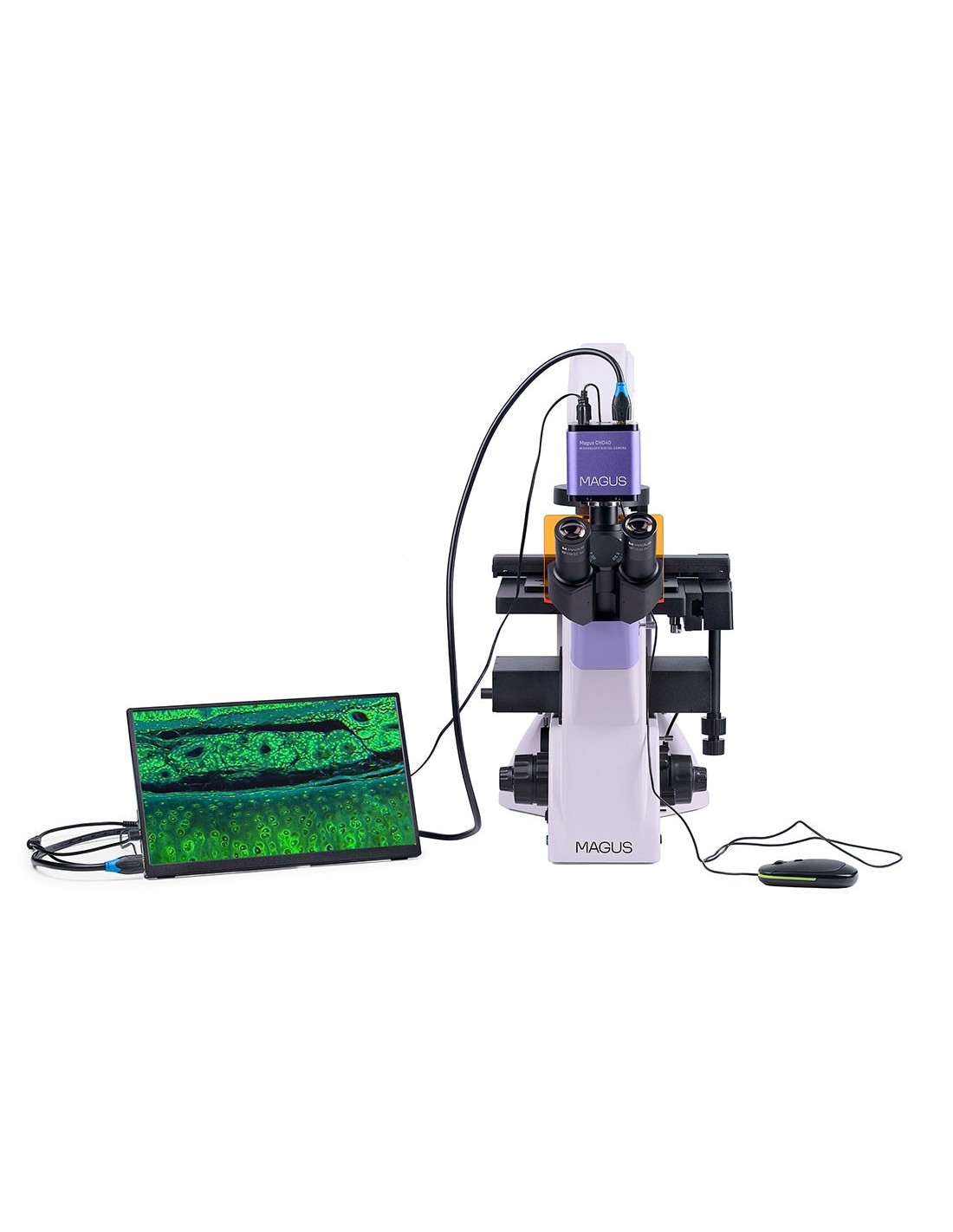

The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

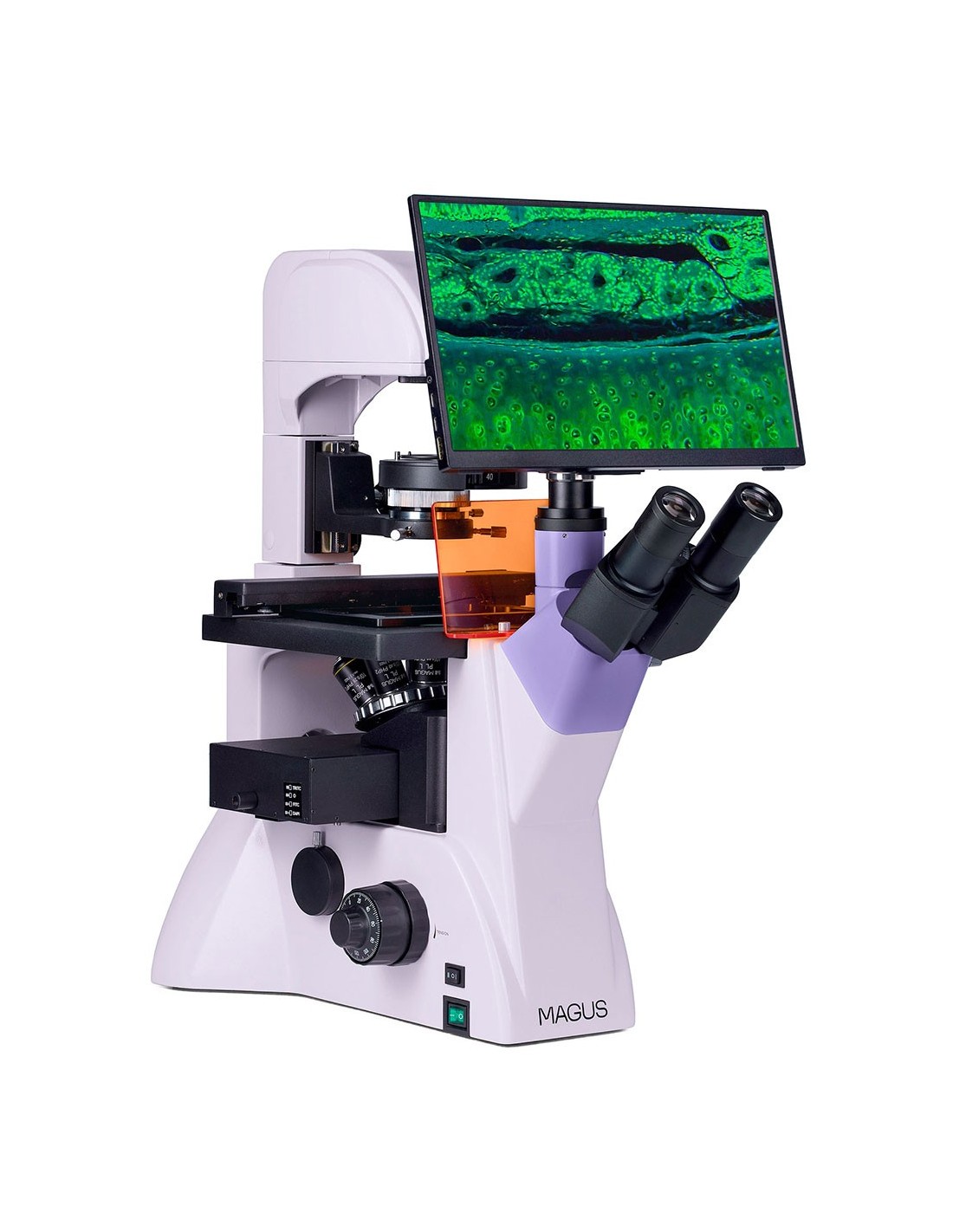

The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf via a foldable stand or install it directly on the camera or microscope base.
Optics

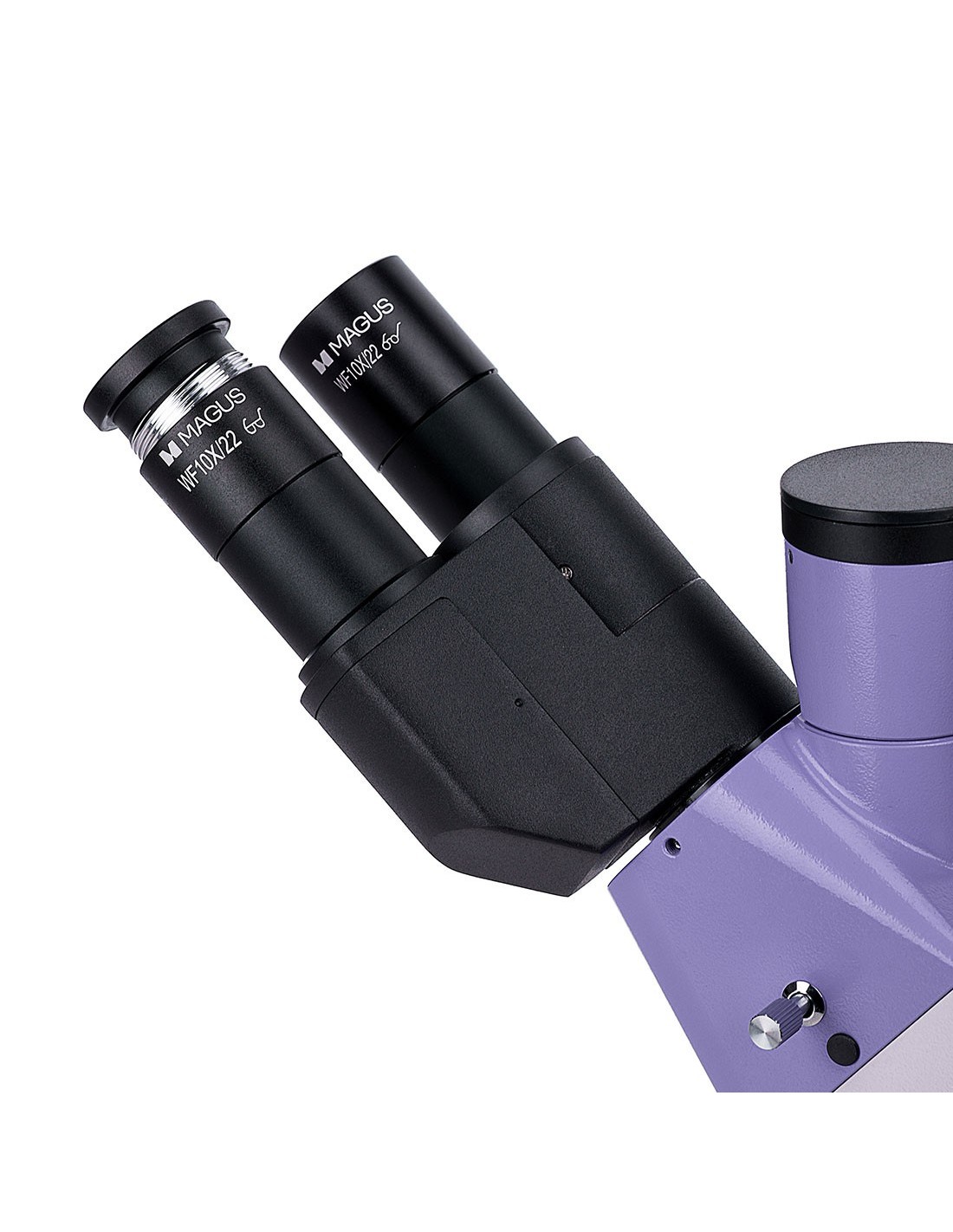

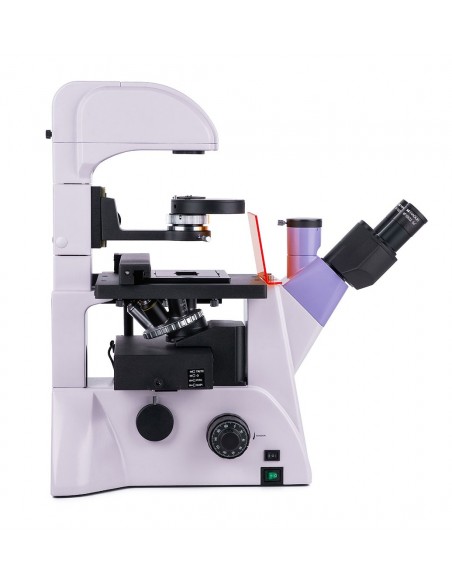

Two options for l Installing a Digital Camera and Monitor: The trinocular tube is designed to accommodate a monitor, while the side port on the microscope frame is designed for a digital camera. On both optical paths there is a beam splitter: 100/0 and 0/100 (microscope frame), 80/20 (trinocular head). The 45° inclination of the eyepiece tube allows you to make observations in complete comfort. When assembling the microscope, the user can rotate the optical tubes 180°.

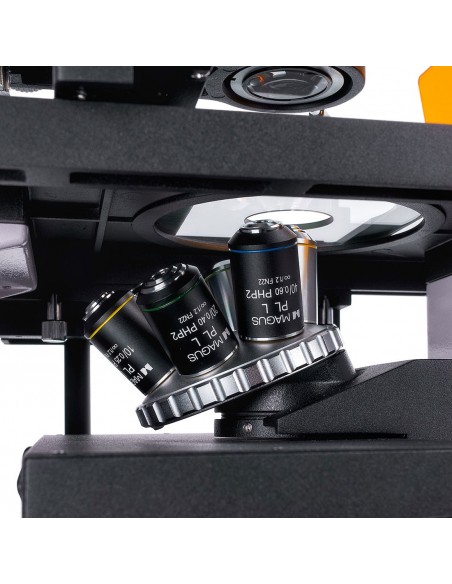

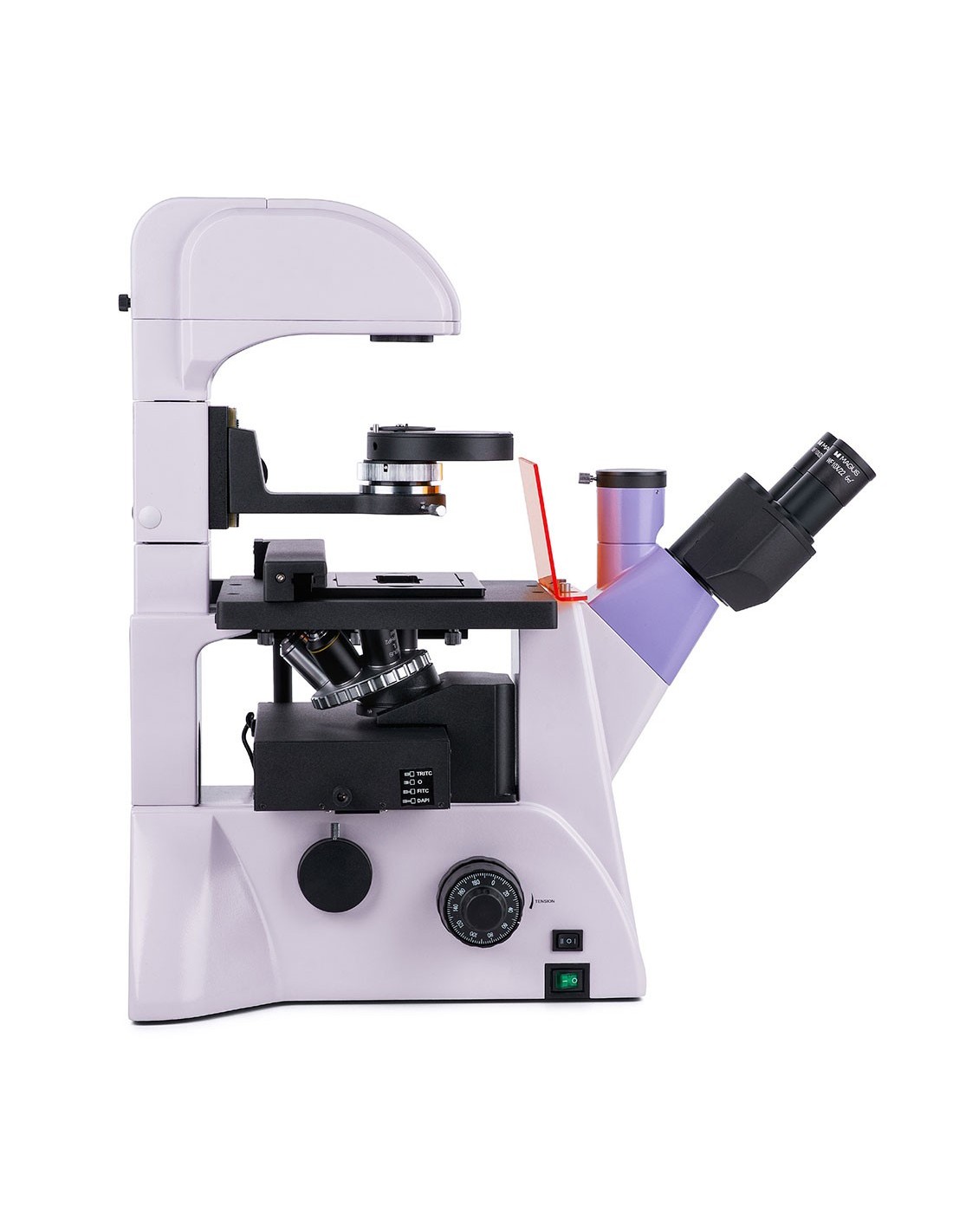

The package includes six planachromatic objectives: three for use in bright field and fluorescence microscopy, the others three for phase contrast microscopy. The lenses are infinitely corrected and have a long working distance. The nosepiece revolver has six slots for housing as many objectives. The nosepiece is placed on a support underneath the stage.
Illumination

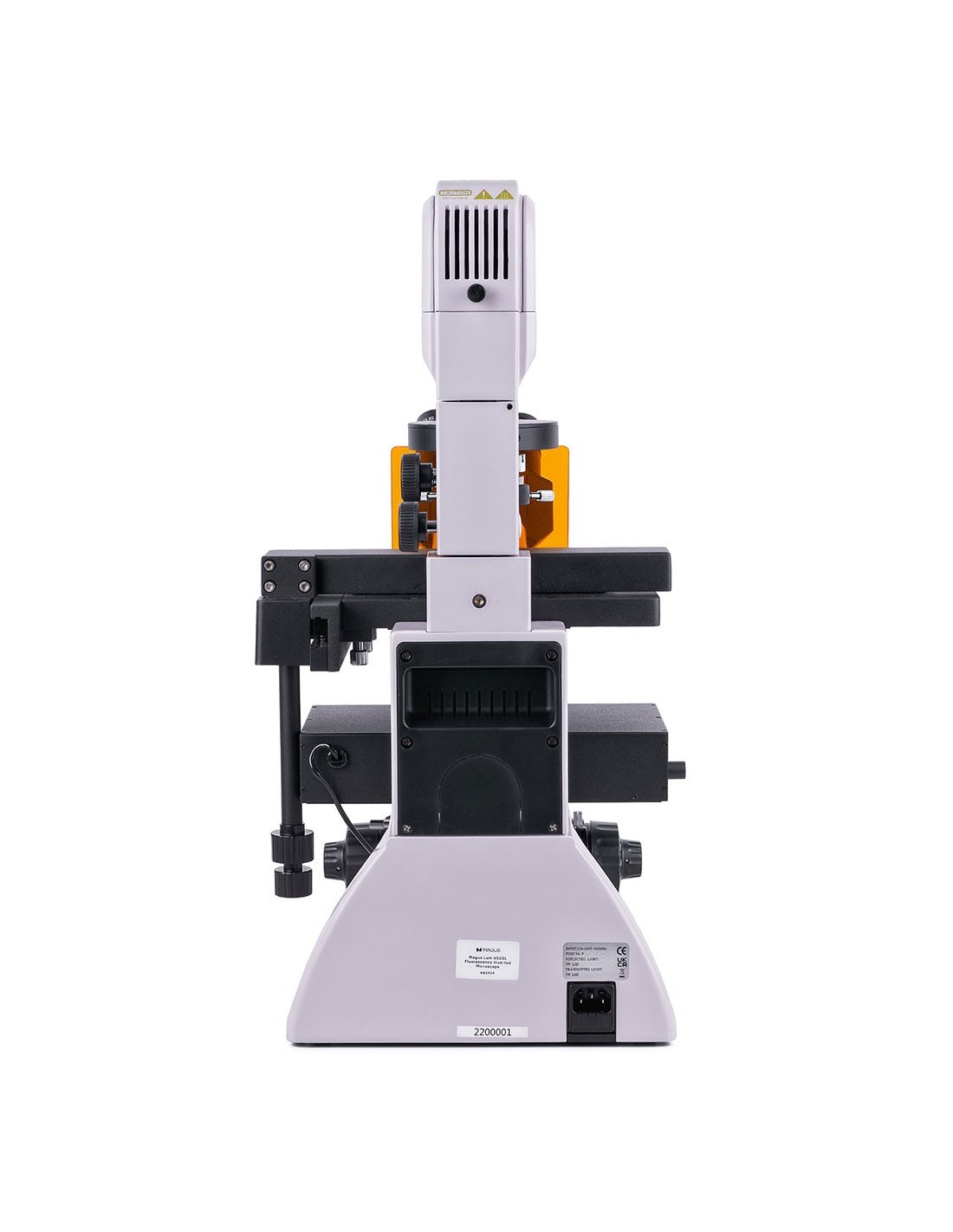

The fluorescence excitation source is a 5 W LED with a life of 50,000 hours, without the need for replacement during the useful life of the instrument. The instrument is equipped with three excitation filters: filters for DAPI, FITC and TRITC fluorochromes. LED lighting is more energy efficient and easier to maintain than a mercury vapor lamp, making it advisable for use in university-level education. LED lighting is consistent in terms of color temperature. The LED turns on and off quickly and does not overheat during prolonged use.
The light source for transmitted light observations is always a 5 W LED. Its light intensity is sufficient for each of the objectives used for bright field or phase contrast microscopy techniques.
Both light sources, both reflected and transmitted light, can be adjusted according to the Köhler method. This allows you to reach the maximum resolution limit for each objective lens and obtain a clear, sharp image without artefacts or edge darkening.
The microscope is equipped with a phase contrast condenser: three slots are used for phase contrast objectives with 10x, 20x and 40x magnification, while the fourth slot is for bright field microscopy. Phase contrast rings can be centered. You can switch from one microscopy technique to another just by turning a knob.
Stage and focusing mechanism

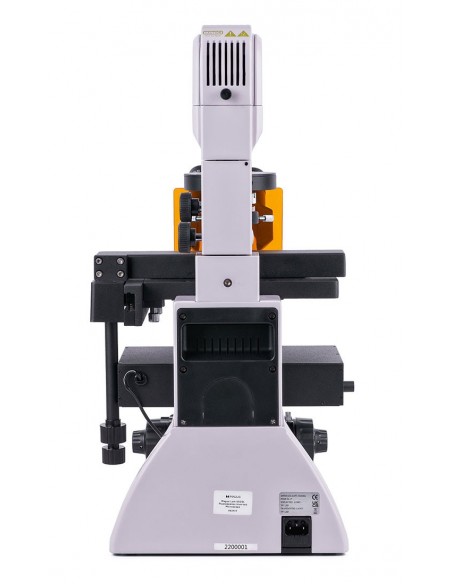

The fixed stage is equipped with a translator insert for moving laboratory glassware and is equipped with three supports for plates of various sizes. Laboratory glassware can be moved on the horizontal plane, along two axes perpendicular to each other. The microscope features a mechanism for coarse and fine focusing. The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The knobs have an ergonomic design that allows the user to maintain a relaxed posture while working.
Accessories
The microscope can be equipped with additional eyepieces , calibration slides or a digital camera from the MAGUS line of accessories.
Key features of the microscope:
- Inverted design for observing samples contained in laboratory glassware with a bottom thickness of 1.2 mm and a height of up to 55 mm, or 165 mm with an inclined support
- Microscopy techniques: fluorescence (reflected light), bright field and contrast phase (transmitted light)
- Köhler illumination configurable for transmitted and reflected light; light source with long-life 5 W LED, without the need to replace bulbs
- The instrument is equipped with three excitation filters: filters for DAPI, FITC and TRITC fluorochromes
- Phase contrast condenser, allows for quick and practical switching between the various microscopy techniques
- Trinocular head; two options for installing a camera or monitor: beam splitter with ratio 100/0 and 0/100 (microscope frame), 80/20 (trinocular head)
Key features of the camera:
- The camera works independently without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
- The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

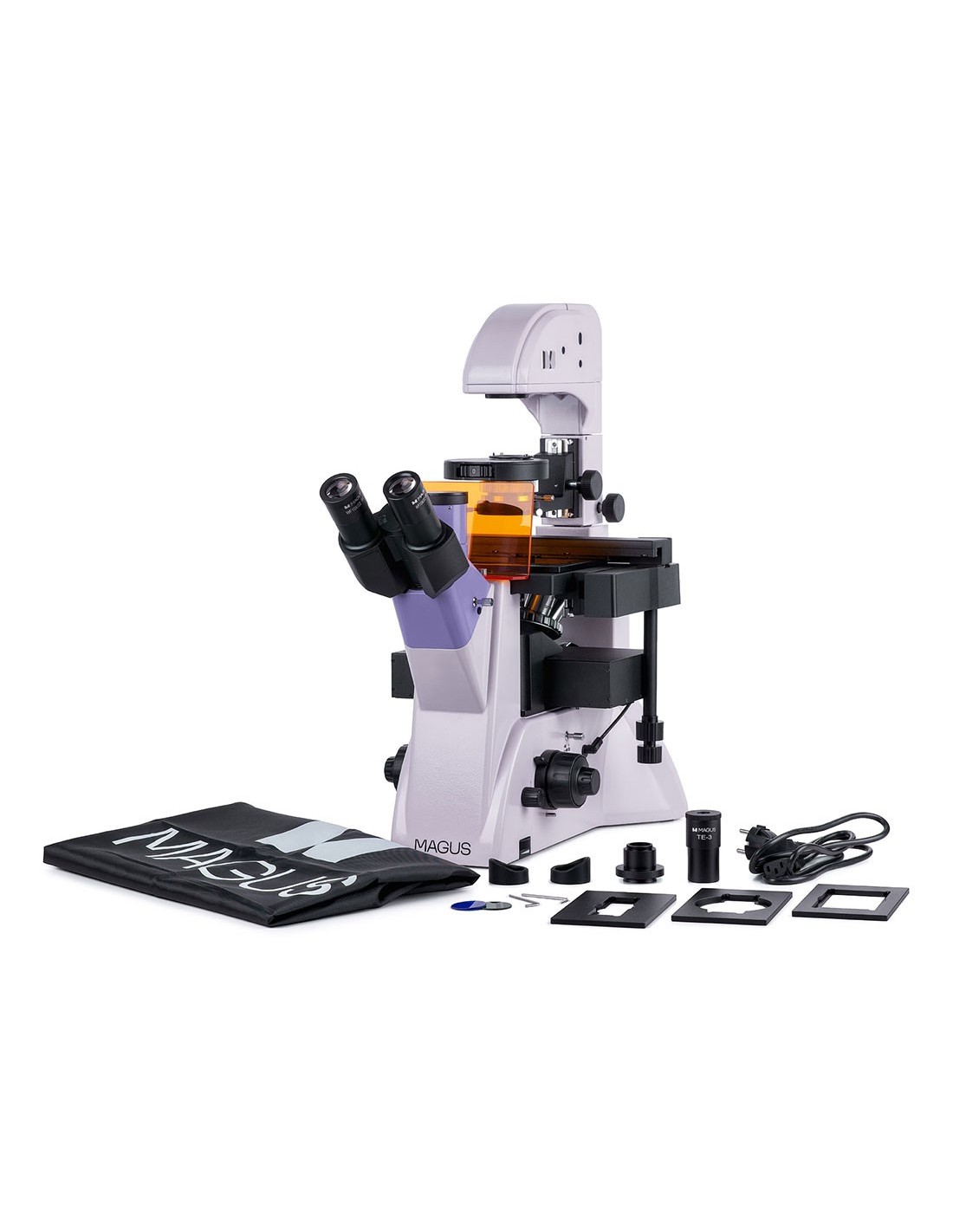

The package contains:
- MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
- MAGUS MCD40 LCD monitor
- Base with integrated power input, light source for reflected and transmitted light observations, condenser, focusing mechanism, stage and nosepiece
- Trinocular head
- Plan achromatic infinity objective: PLL 10x/0.25 for phase contrast, WD 4.3 mm
- Plan achromatic infinity objective: PLL 20х/ 0.40 WD 8.0 mm
- Plan achromatic infinity objective: PLL 40x/0.60 WD: 3.5 mm
- Plan achromatic infinity objective: PLL 10x/0 .25 PHP2 WD 4.3 mm
- Plan achromatic infinity objective: PLL 20x/0.40 PHP2 WD 8.0 mm
- Plan achromatic infinity objective: PLL 40x/0 ,60 PHP2 WD 3.5 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- UV screen
- 1x C-mount adapter
- Allen key
- Power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs. )
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs) .)
- Calibration glass
| Brand | MAGUS |
| EAN | 5905555018256 |
| 38x61x82 cm |
| Shipping weight | 26.75 kg |
| Type | biological, light/optical |
| Trinocular head | Trinocular |
| Vertical tube | Siedentopf, 180° rotatable< /td> |
| Magnification, x | 100–400 in basic configuration (*optional: 40–500/600/800/1000) |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | plan achromatic objectives at infinity (∞): PLL 10x/0.25/4.3; PLL 20x/0.40/8.0; PLL 40x/0.60/3.5; phase contrast: PLL 10x/0.25/4.3 PHP2; PLL 20x/0.40/8.0 PHP2; PLL 40x/0.60/3.5 PHP2; parfocal distance: 45 mm |
| Nosepiece revolver | for 6 objectives |
| Working distance, mm | 4.3 (10х); 8.0 (20x); 3.5 (40x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 227x208 |
| Range of movement of the stage, mm | 77/134.5 |
| Table features | fixed, with translator insert and Ø118 mm glass plates; Ø118 mm; plate supports: 86x129.5 mm, Ø87.5 mm; 34x77.5 mm, Ø68.5 mm; 57x82 mm, Ø60 mm |
| Capacitor | NA 0.6; working distance: 55 mm; phase contrast turret; with fixing screws |
| Diaphragm | iris aperture diaphragm |
| Focus | coaxial knobs for coarse and fine focusing (macro and fine), positioned on both sides |
| Illumination | halogen, fluorescent< /td> |
| Brightness adjustment | yes |
| Power supply | AC mains, 85 –265 V, 50/60 Hz |
| Type of light source | light source for reflected light observations: 5 W LED; Light source for transmitted light observations: 5 W LED |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Special features | phase contrast condenser (turret) with available housing and phase contrast ring plates for 10x, 20x, and 40x objectives; auxiliary centering microscope |
| User level | expert users, professionals |
| Level of difficulty assembly and installation | complicated |
| Fluorescent module | filters: ultraviolet (UV), violet (V), blue (B), green (G) |
| Fluorescence filter: filter type/excitation wavelength/dichroic mirror/emission wavelength | ultraviolet ( UV), 320–380 nm/425 nm/435 nm; violet (V) 380–415 nm/455 nm/475 nm; blue (B) 450–490 nm/505 nm/515 nm; green (G) 495–555 nm/585 nm/595 nm |
| Application | laboratory/medical |
| Illumination position | double |
| Research method | bright field, phase contrast microscope, fluorescence |
| Set with pencil case/case/bag | dust cover |
| === Delimiter ===< /td> | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| A color/monochrome | color |
| Megapixel | 8 |
| Resolution maximum, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm)< /td> |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB, stick (USB), Wi-Fi adapter (USB) |
| Sensitivity to light | 1028 mV with 1/30 s |
| Signal to noise ratio | 0.13 mV with 1/30 s< /td> |
| Exposure time | 0.14 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@ 3840x2160 (USB 3.0) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH ), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED< /td> |
| LED backlight life, h | 50000 |
| Interface | HDMI< /td> |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C ) |
| Energy consumption, W | 12 (max.) |
