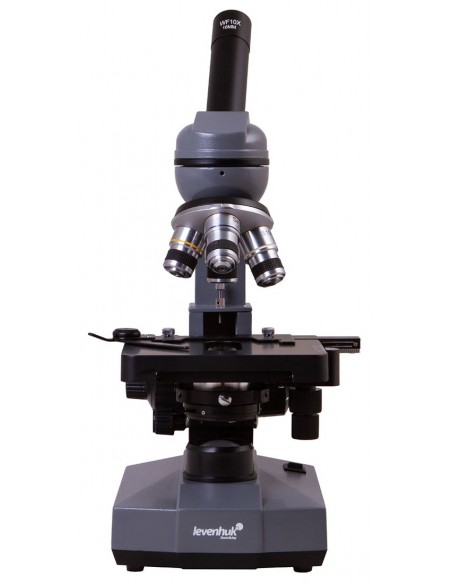

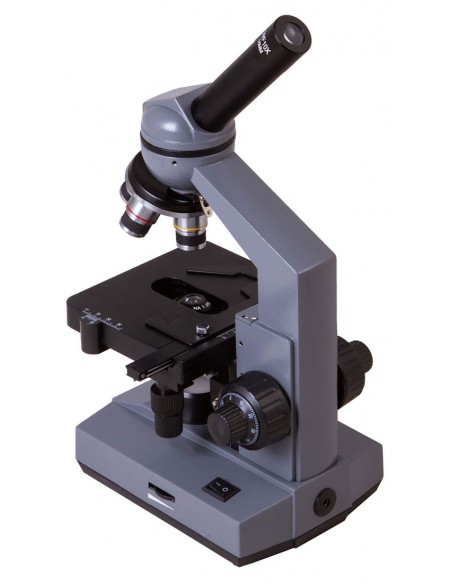

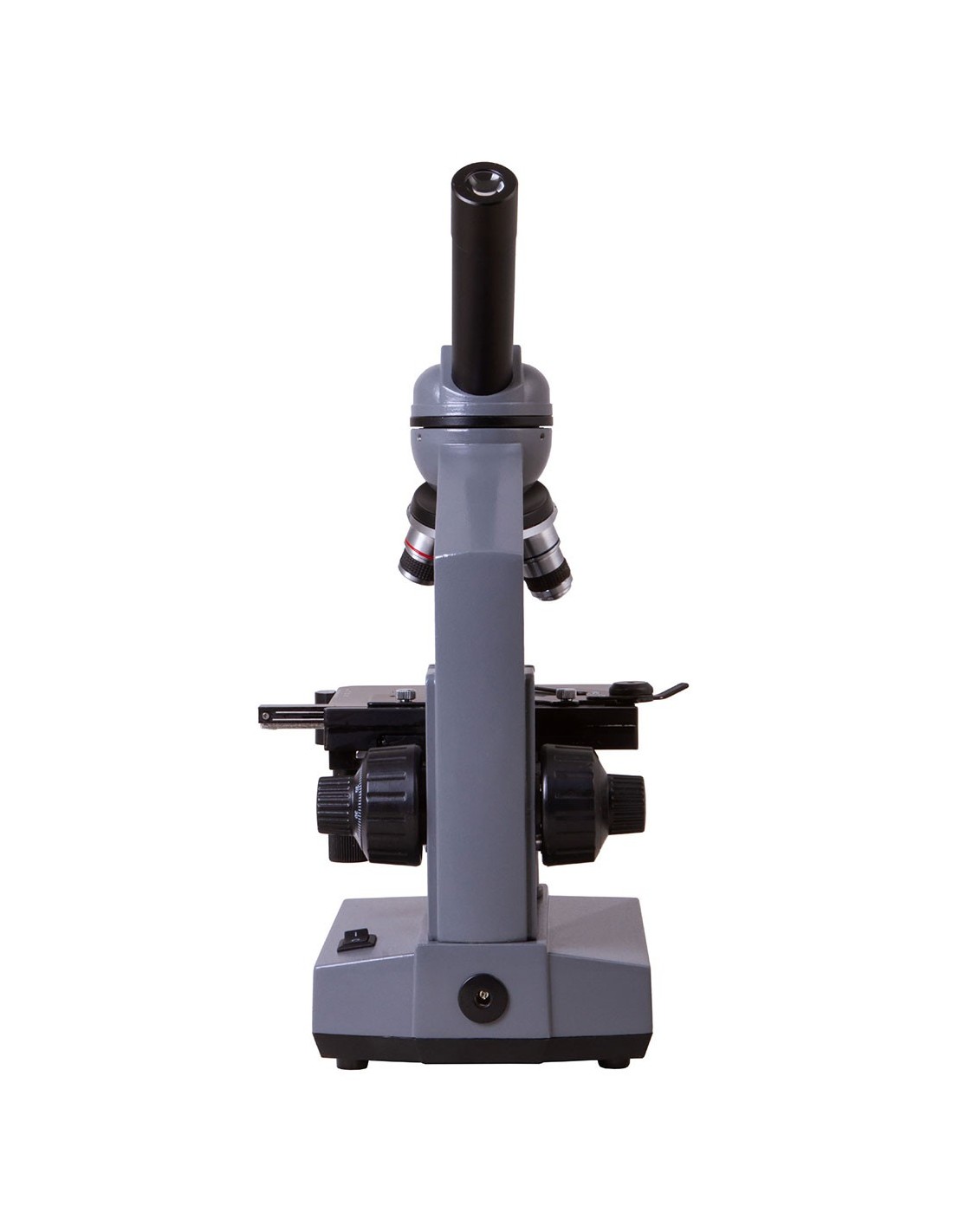

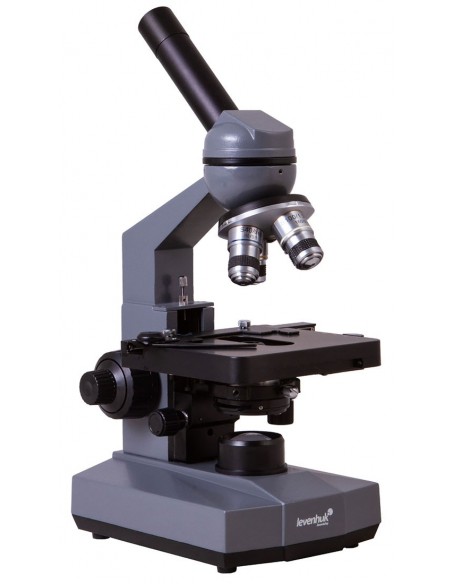

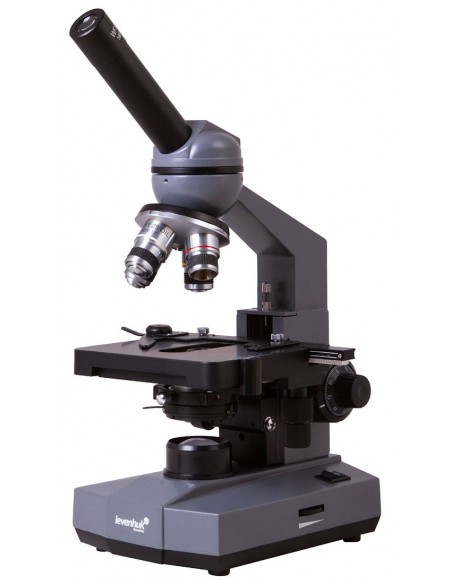

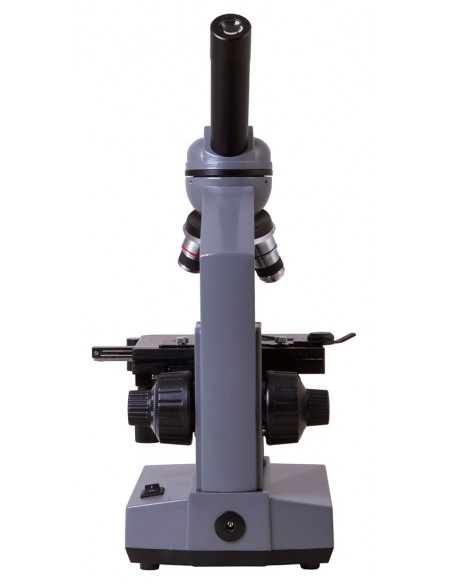

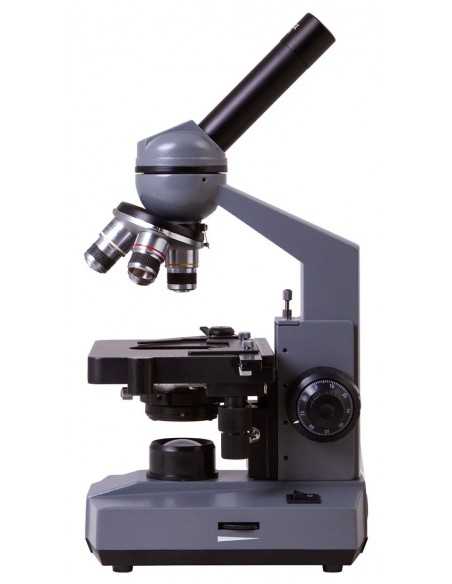

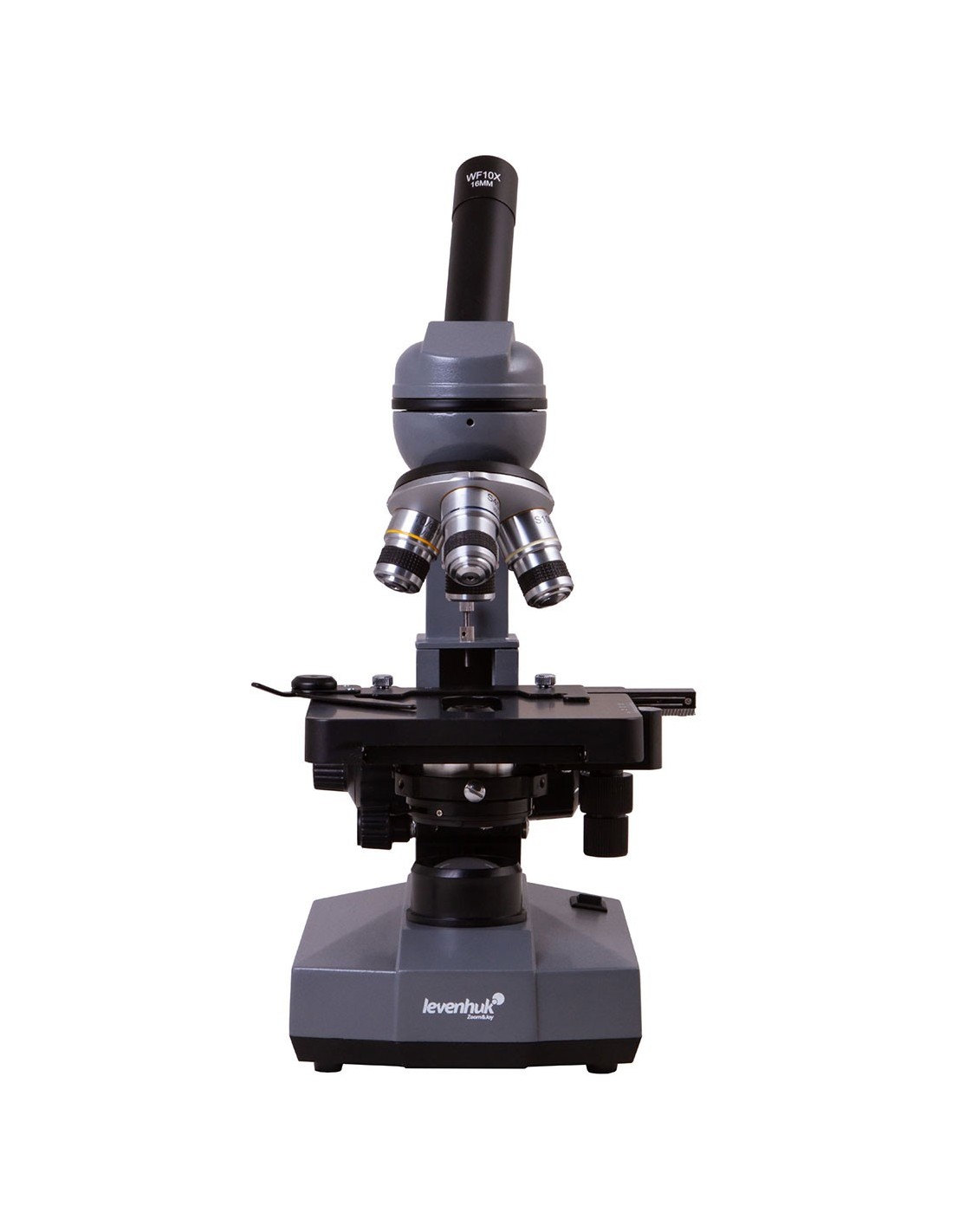

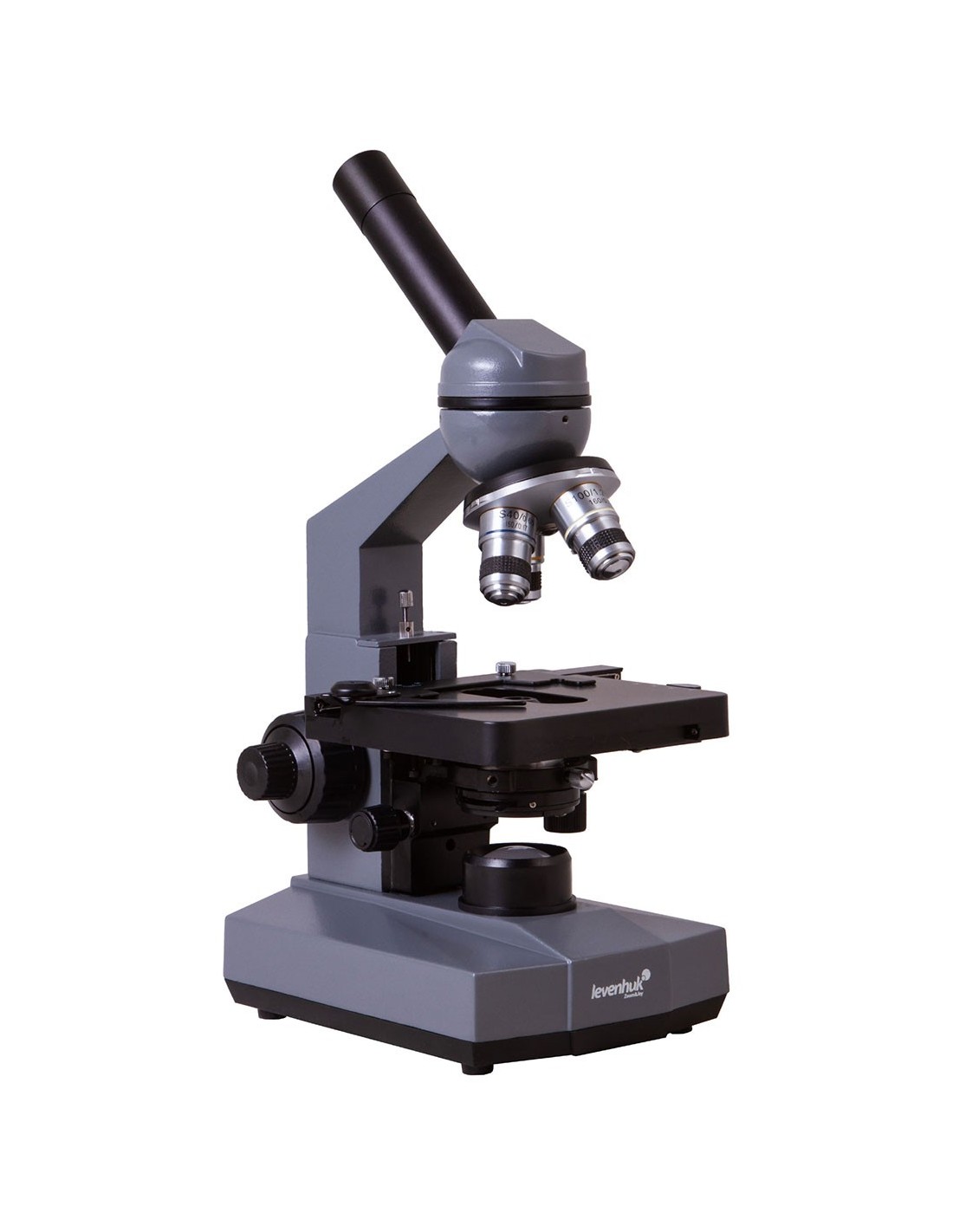

The Levenhuk 320 PLUS microscope is a laboratory model for professional observations. It is suitable for carrying out morphological, hematological, biochemical and many other research in laboratories of medical institutes and scientific and research centres. Assistants and university professors can use the Levenhuk 320 PLUS for their lessons to medical and healthcare professions students.

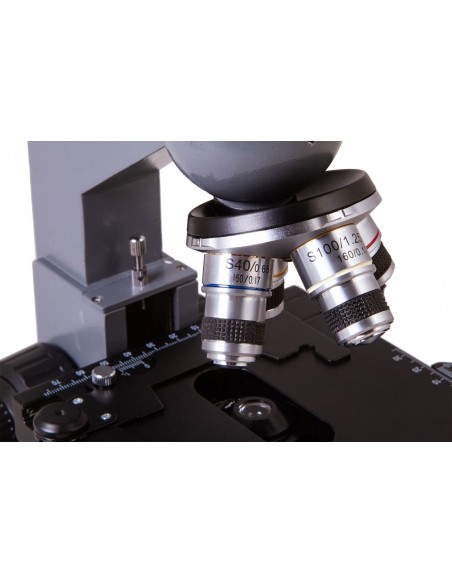

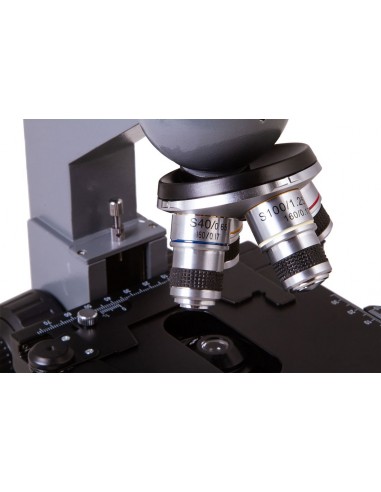

The microscope features achromatic optics that provide a contrast-rich, sharp and detailed image, without optical aberrations . Thanks to the included eyepieces, the microscope creates a planar and wide field of view, which allows you to observe large objects with a complicated structure. The head of the monocular microscope can be rotated 360°. The microscope has a magnification range of 40–1600x. The 100x objective allows you to use the oil immersion method; a bottle of immersion oil is included in the kit.
The samples are fixed on a stage. The stage can be moved along two axes: the mechanical translator is used for precise positioning of the samples under the objective. To adjust the sharpness, a coaxial mechanism for coarse and fine adjustment of the focus is used.
The LED lighting at the bottom of the microscope is used to illuminate the sample under examination and is equipped with adjustment of brightness. The optical beam passes through an Abbe condenser which regulates its brightness via an iris diaphragm. The kit includes optical filters that increase the contrast and sharpness of the observed image. The lighting can be powered by AC mains or batteries. Therefore, it is possible to use Levenhuk 320 PLUS even outdoors, during field expeditions and seminars.
Features:
- Rotating monocular head
- Magnification: 40–1600x
- Achromatic wide-angle optics
- 0.75W LED illumination with brightness adjustment
- Mains powered AC power or batteries

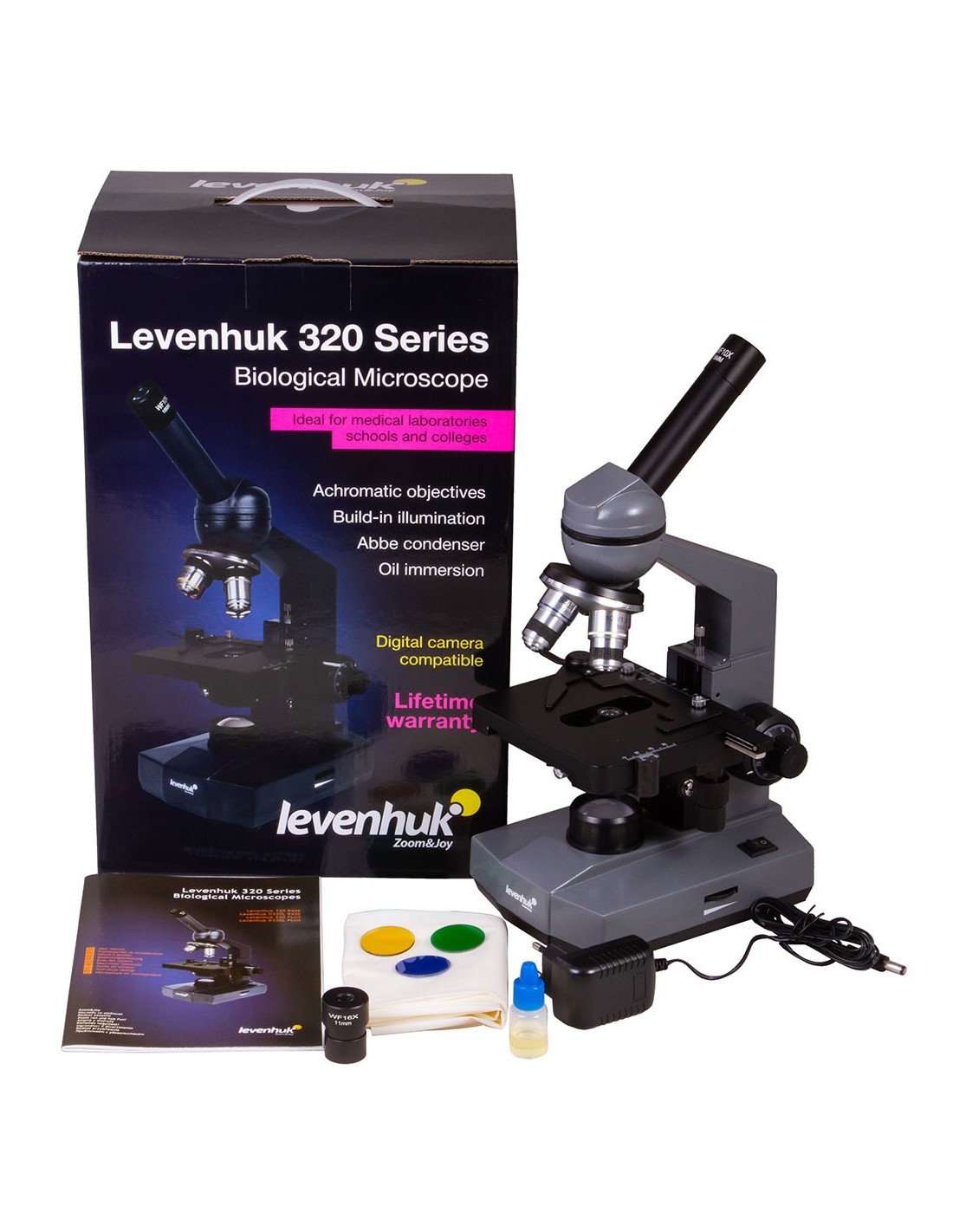

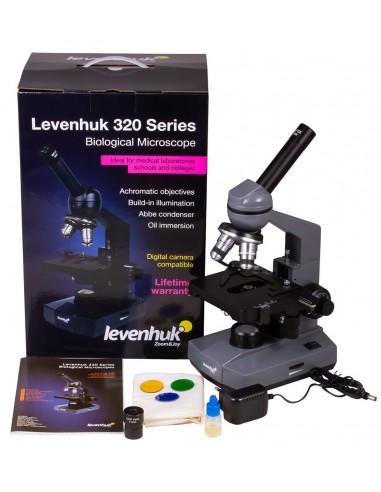

The kit includes:
- Microscope
- Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
- Wide-angle eyepieces with pointer: WF10x and WF16x
- Filters: blue, green, yellow
- Bottle of oil for diving
- AC adapter
- Dust cover
- User manual and lifetime warranty
Attention: strong> Refer to the specification table for the correct mains voltage and never attempt to plug a 110V device into the 220V socket and vice versa, without using a converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.
Some of the things you can observe under the microscope:
strong>
The Levenhuk 320 PLUS microscope is also compatible with other Levenhuk digital cameras (additional cameras to be purchased separately). Levenhuk cameras are installed in the eyepiece tube, in place of an eyepiece.
| Brand | Levenhuk Inc., USA |
| Lifetime | guarantee |
| EAN | 5905555004495 |
| Package size (LxWxH) | 39x25x21 cm |
| Shipping weight | 3.26 kg |
| Type | biological, light/optical |
| Tested | monocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 40 — 1600 |
| Magnification range | from 1280x and above |
| Ocular tube diameter, mm | 23.2 |
| Eyepieces | WF10x with pointer, WF16x with pointer |
| Achromatic objectives | : 4x, 10x, 40xs, 100xs (oil immersion) |
| Nosepiece nosepiece | for 4 objectives |
| Stage, mm | 110x125 |
| Range of movement of the stage, mm | 58/25 |
| Stage features | double mechanical layer |
| Condenser | Abbe condenser with NA 1.25 and iris diaphragm |
| Diaphragm | iris |
| Focus | coaxial; coarse (20 mm) and fine (0.02 mm) |
| Body | metal |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | 220V/50Hz or 3 AA batteries (not included) |
| Power: batteries/built-in battery | yes |
| Type of light source | 0.75 W |
| Optical filters | blue , green, yellow |
| Extra items | immersion oil included |
| User level | expert users |
| Assembly and installation level of difficulty | easy |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
