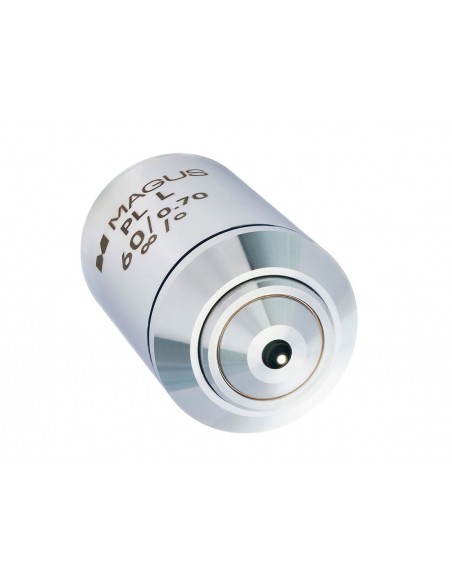

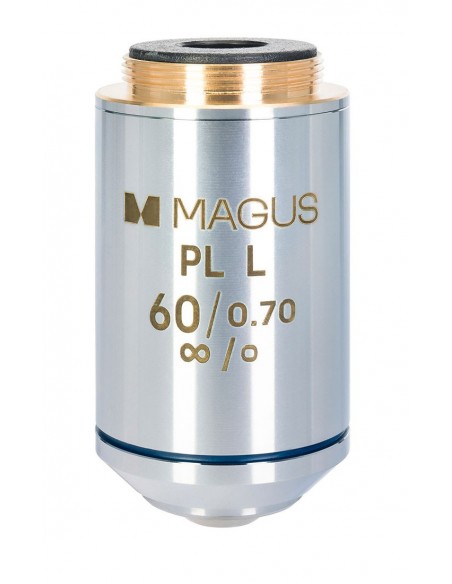

MAGUS 60PLL 60х/0.70 Plan L WD 2.08mm Lens - MAGUS

Art. OM-83464
€299.95
Tax included

Metallurgical target designed for research at long working distances. Suitable for working with embossed samples. The working distance of the lens is 2.08mm. Cover glass is not required for operation. The objective is designed for use with microscopes with an infinity corrected optical system. The parfocality of the objective is 45 mm.



Metallurgical target designed for research at long working distances. Suitable for working with embossed samples. The working distance of the lens is 2.08mm. Cover glass is not required for operation. The objective is designed for use with microscopes with an infinity corrected optical system. The parfocality of the lens is 45 mm.

The 60x planachromatic lens corrects chromatic aberration for red and blue colors and spherical aberration for green. The field of view is in focus both at the center and at the edges – 90%. Therefore, the objective works well with eyepieces with a wide field of view of 22mm. The highest image detail is achieved in combination with eyepieces with 5 to 15x magnification. Pairing with a 10x/22 mm eyepiece will produce a field of view of 0.36 mm.

The maximum resolution of the objective is 0.39 µm. The model generates a useful magnification under the microscope from 350x to 700x.

Compatibility:

  • MAGUS Metal 600 metallographic microscope
  • MAGUS Metal 630 metallographic microscope
  • MAGUS Metal 650 metallographic microscope
  • MAGUS Metal V700 inverted metallographic microscope
Specifications
Lens material optical glass
Class of lenses by degree of aberration correction plan achromatic
Focal length of the tube corrected to infinity (∞)
Contrast technique bright field
Magnification, x 60
Aperture 0.70
Working distance, mm 2.08
Parfocal distance, mm 45
Clip thickness, mm without a cover glass
Spring mechanism
Immersion −
Body material copper
BrandMAGUS
Warranty2 days
EAN5905555021119
Package size (LxWxH)7x4x4 cm
Shipping weight0.145 kg
