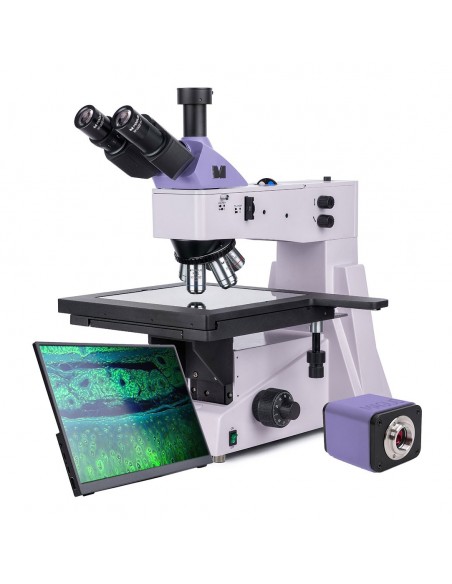

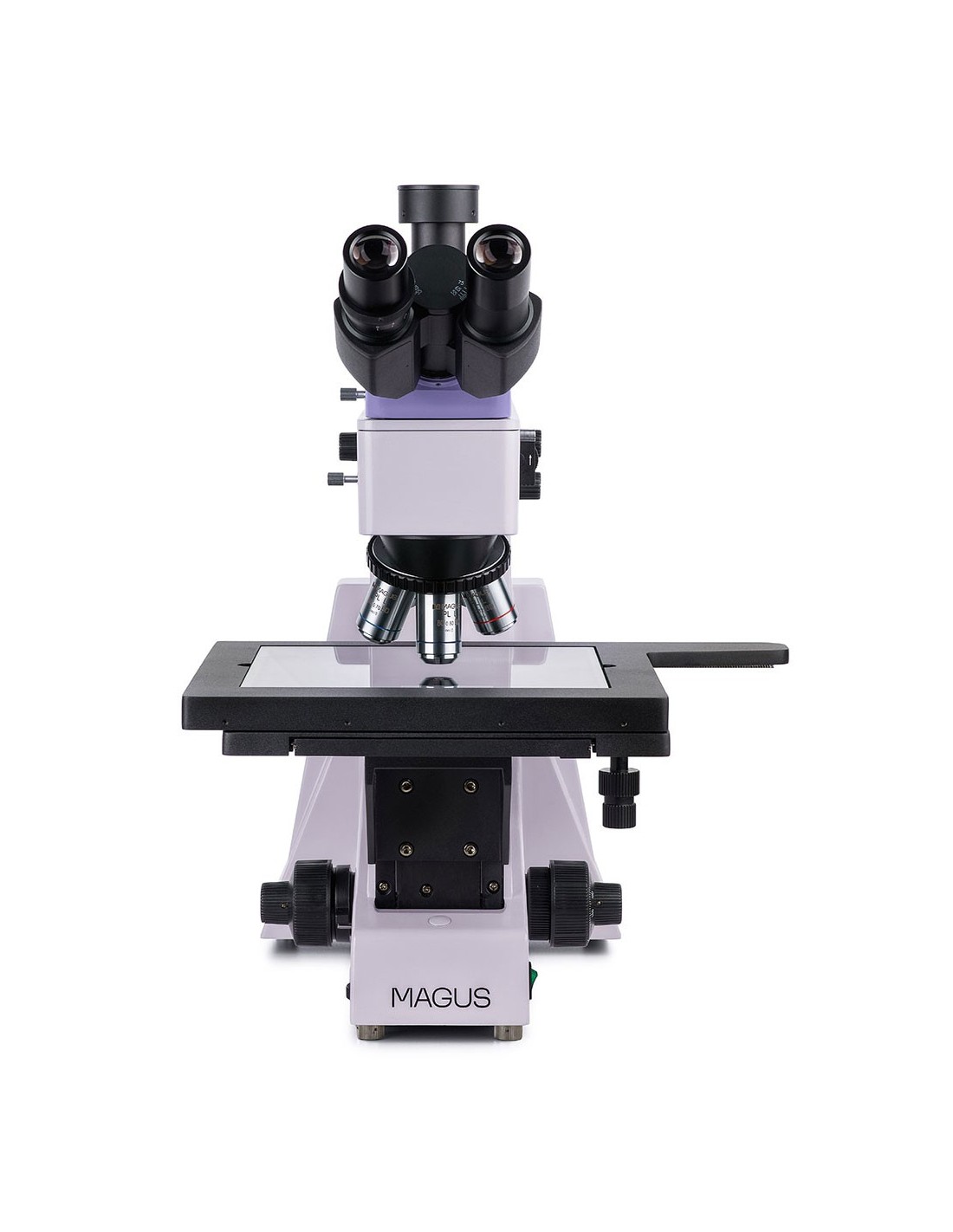

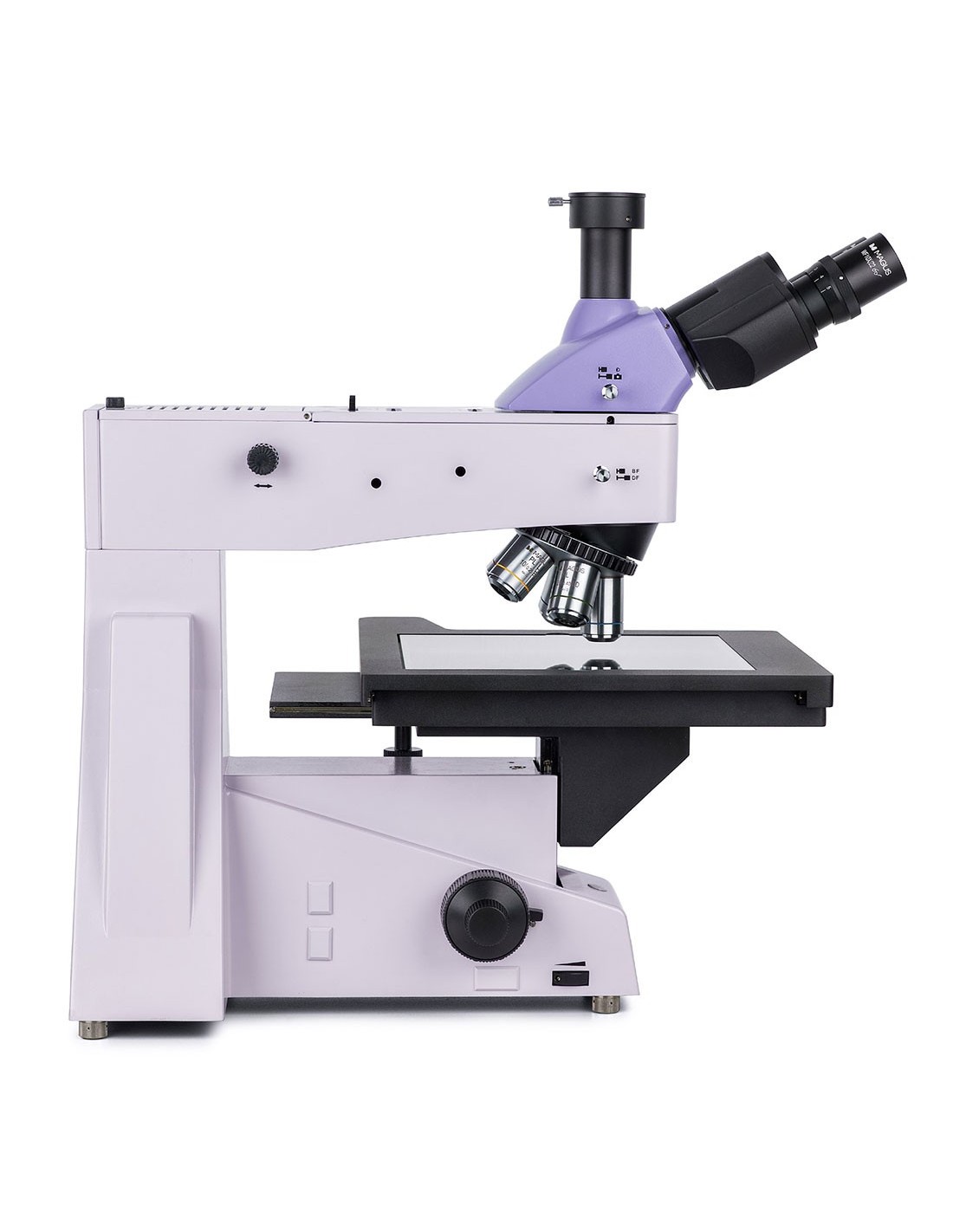

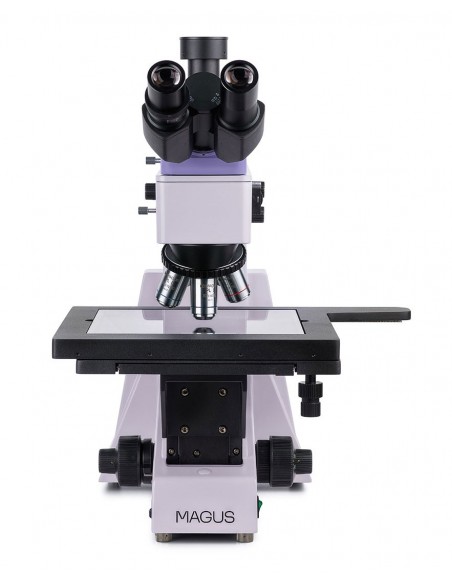

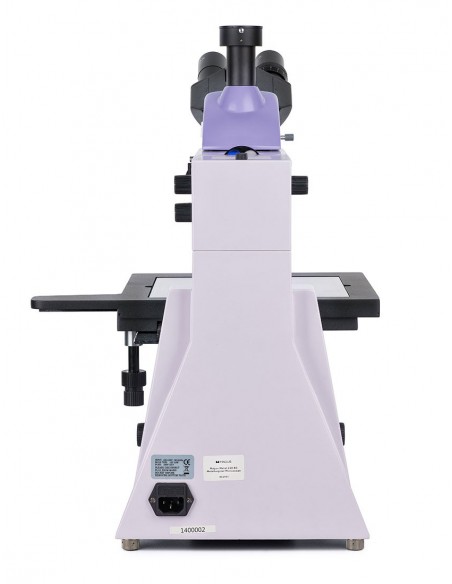

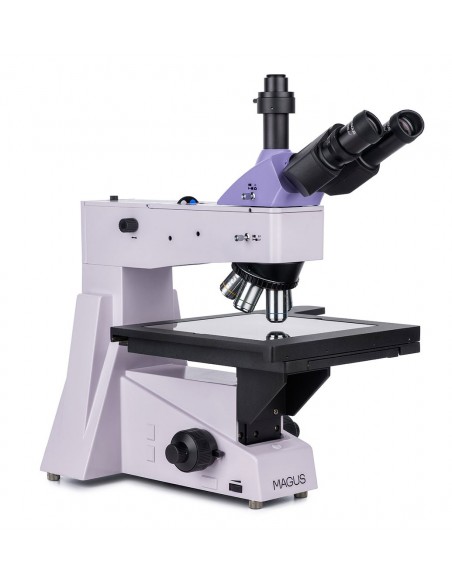

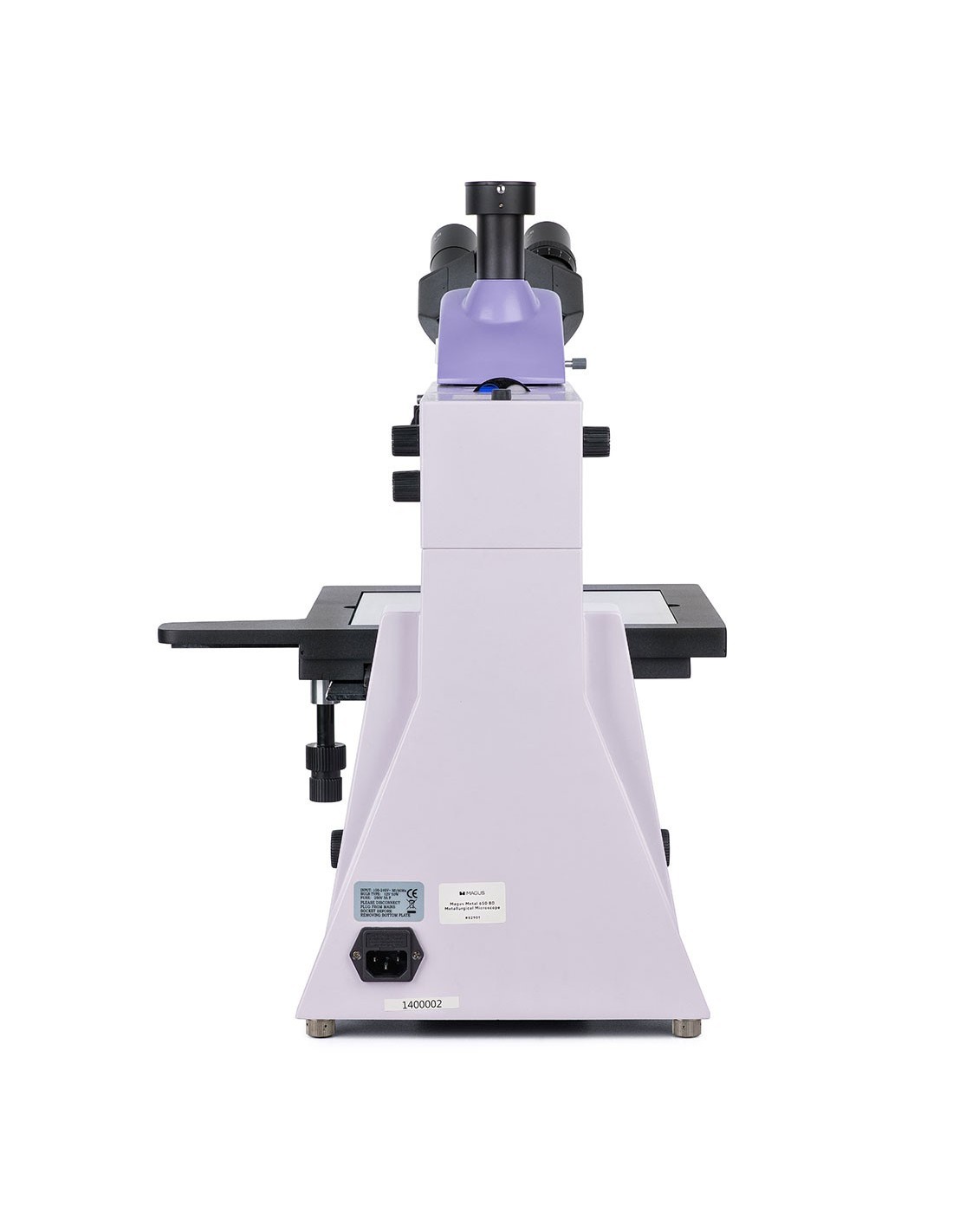

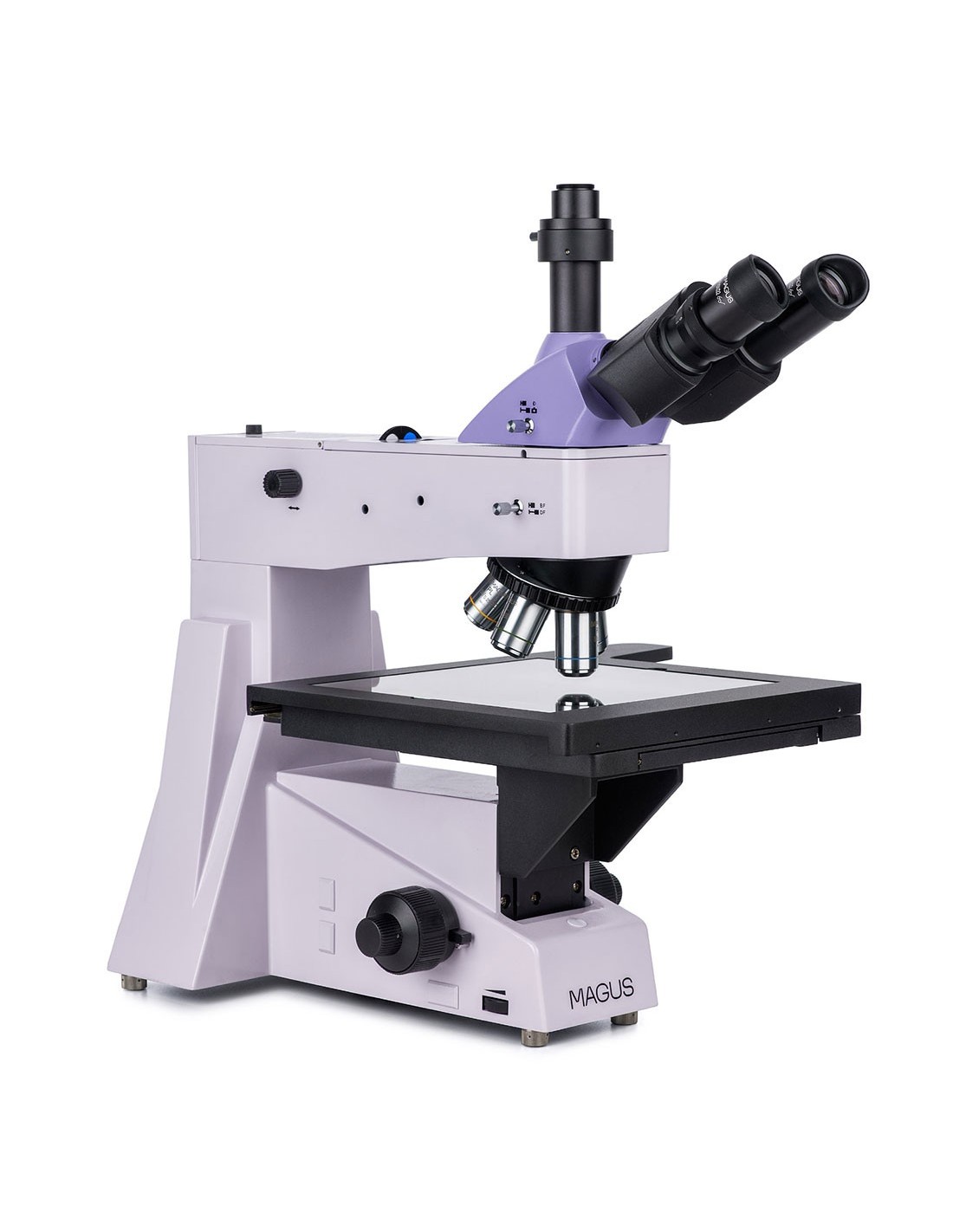

The MAGUS Metal D650 BD LCD digital metallographic microscope is suitable for observing the surfaces of photomasks, integrated circuits, printed circuit boards and other long and wide objects. It features a large stage that can accommodate large specimens and fine focusing with a value of 0.7 µm for high precision observations at high magnification. Microscopy techniques in bright field, dark field and polarized light. The microscope is suitable for quality control laboratories, research centers and university departments.
Digital camera
MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on monitor resolution.
The camera is equipped with an 8 MP sensor and produces realistic images at 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0 . When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor
The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf using a folding stand or install it directly on the camera or microscope base.
Optics

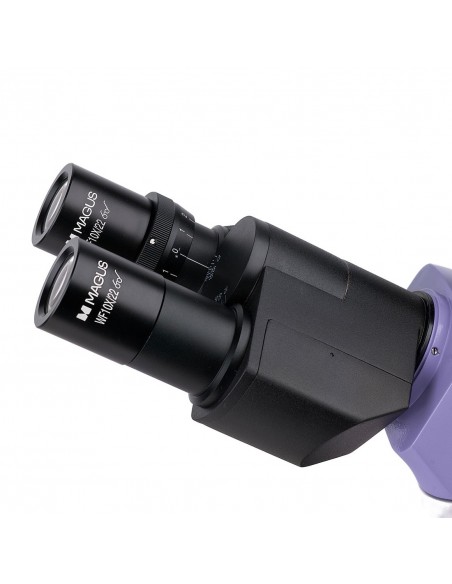

The trinocular head is equipped with a trinocular tube for housing a digital camera. The light/camera selection dial directs the light beam to the camera for bright, well-detailed photos and videos that can be viewed on the external screen. The camera is not included in the basic configuration. The left eyepiece features an image adjustment ring.

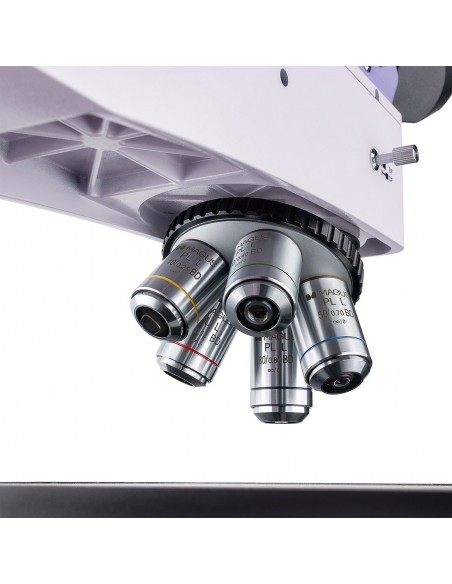

Planachromatic objectives with the BD symbol are specially designed for bright- and dark-field microscopy techniques. The lenses have a long working distance. The kit includes five objectives, one for each nosepiece socket. Each installed lens can be replaced with an optional one if necessary. Infinity corrected optics with magnification from 50x to 800x. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination
The reflected light illumination system is designed so that all observations are well detailed regardless of the objective used and microscopy techniques. The light source is a 50W halogen lamp which creates a bright, warm and uniform light. You can use the Köhler lighting method to adjust the lighting. Filters to create a colorful effect and a polarization device (integrated analyzer and removable polarizer) are included. The light source, aperture and field diaphragms can be centered. The illumination system also includes a dark field device.
Stage and focusing mechanism
The large 280x270 mm stage is a special feature of the microscope. It has a range of motion of 204mm on the X and Y axis. Focus is adjusted by rotating the coarse and fine focus knobs. They work smoothly and thanks to the fine focus value, the operation at a high magnification level is precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing handles are positioned at the base of the microscope so you can assume a relaxed and comfortable position. This way the operator can keep his hands resting on the table instead of holding them in the air.
Accessories
To get the most out of the MAGUS Metal 650 microscope BD you can purchase other additional accessories, such as eyepieces, long working distance objectives for bright field and dark field, calibration slides and digital cameras.
Key features of the microscope:
- Precise focusing: fine focus value of 0.7 µm, coarse focus with a locking knob and tension adjustment
- Stage large size for easily observing long and wide objects, wide range of stage movement on two axes
- Planachromatic optics, trinocular head with 100:0 and 0:100 beam splitter, trinocular tube for installation of the camera
- Light source, centrable aperture and field diaphragms, Köhler illumination adjustment, polarization device, color filter set, dark field microscopy techniques
- Illuminator – 50W halogen lamp with 220V power supply and brightness adjustment
- Optional accessories
Key camera features:
- The camera works independently without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
- The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

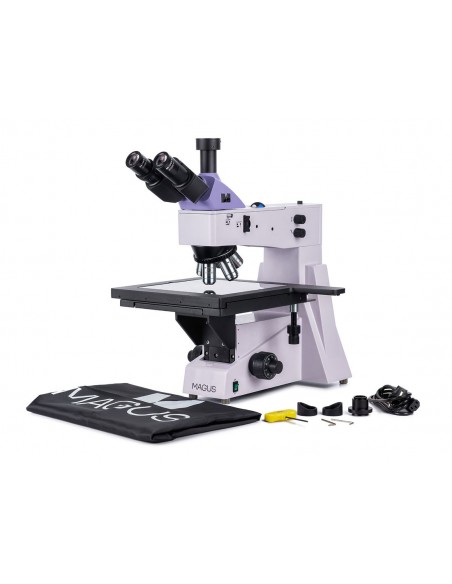

The package contains:
- MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
- MAGUS MCD40 LCD monitor
- Base with power input, reflected light illuminator, focusing mechanism, stage and nosepiece
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
- Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5 mm
- Infinity planachromatic objective: PL L80x/0.80 BD WD 0.8 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- 1x C-mount adapter
- Allen key
- AC mains power cable
- Dust cover
- User manual and warranty card
Available on request:
- Eyepiece 10x/22 mm with graduated scale
- Eyepiece 12, 5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- 25x/9 mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
- Infinity plan achromatic objective: PL L60x /0.70 BD WD 1.9 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4 mm
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018430 |
| Package size (WxDxH) | 58x49x60 cm |
| Shipping weight | 23.75 kg |
| Delimiter | MAGUS Metal 650 BD metallographic microscope |
| Type | light/optical, metallographic |
| Tested |
| Tested |
| td> | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–800 base (*optional: 50–1000/1250/1500/2000/ 2500) |
| Magnifying range | from 800x to 1280x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale , 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L50x/0.70 BD, PL L80x/0.80 BD; parfocal distance 45 mm (*option: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 (5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 280x270 |
| Range of movement of the stage, mm | 204/204 |
| Stage features | two-axis mechanical |
| Eyepiece diopter adjustment, diopters | ±5 (on the barrel left) |
| Iris | Integrated field and aperture |
| Focus | coaxial, coarse focus (30 mm, 13.1 mm/rev, with locking knob and tension adjustment) and fine focus (0.0007 mm) |
| halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/50 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Lighting position | upper |
| Research method | bright field, dark field, polarized light |
| Set with case/case/bag | dust cover |
| === Boundary === | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors | Wi-Fi, HDMI 1.4, USB 3.0 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB , stick (USB), Wi-Fi adapter (USB) |
| Light sensitivity | 1028 mV at 1/30 s |
| Signal-to-noise ratio | 0.13 mV with 1/30 s |
| Exposure time |
| Video recording | yes |
| Frame rate , fps@resolution | 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@3840x2160 (USB 3.0) |
| Place of installation | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH ), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C ) |
| Energy consumption, W | 12 (max.) |
