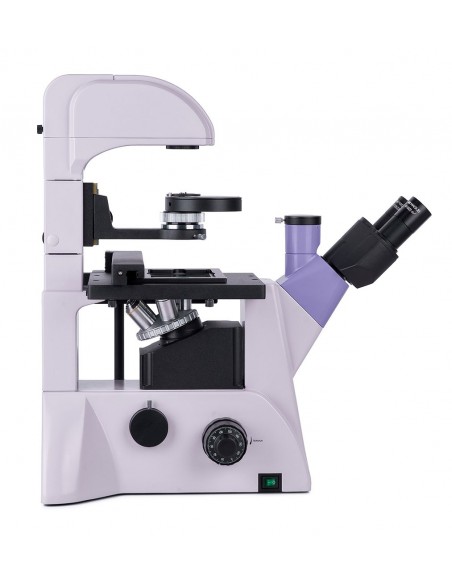

The MAGUS Bio VD350 LCD is an inverted biological microscope used for the study of samples with and without added dye, contained in laboratory glassware: Petri dishes, test tubes, crucibles, etc. The height of the glassware can start from 55 mm and, by tilting the illuminator support, reach 165 mm. The bottom of observation-compatible glassware can be up to 1.2 mm thick. This microscope, which uses phase-contrast transmitted light and bright-field microscopy techniques, has a trinocular tube and a side camera port for installing a monitor and digital camera, respectively. This model is suitable for routine work in professional and research laboratories, as well as for teaching.
Digital camera
The MAGUS CHD30 digital camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 px. The camera features high light sensitivity, autofocus function and is suitable for fluorescent observations.
The camera uses an HDMI interface to connect directly to a TV monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect it to a PC via Wi-Fi.
Video is recorded at 60 fps or 25 fps depending on the video output interface.
The camera combines high FPS speed and HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor
MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

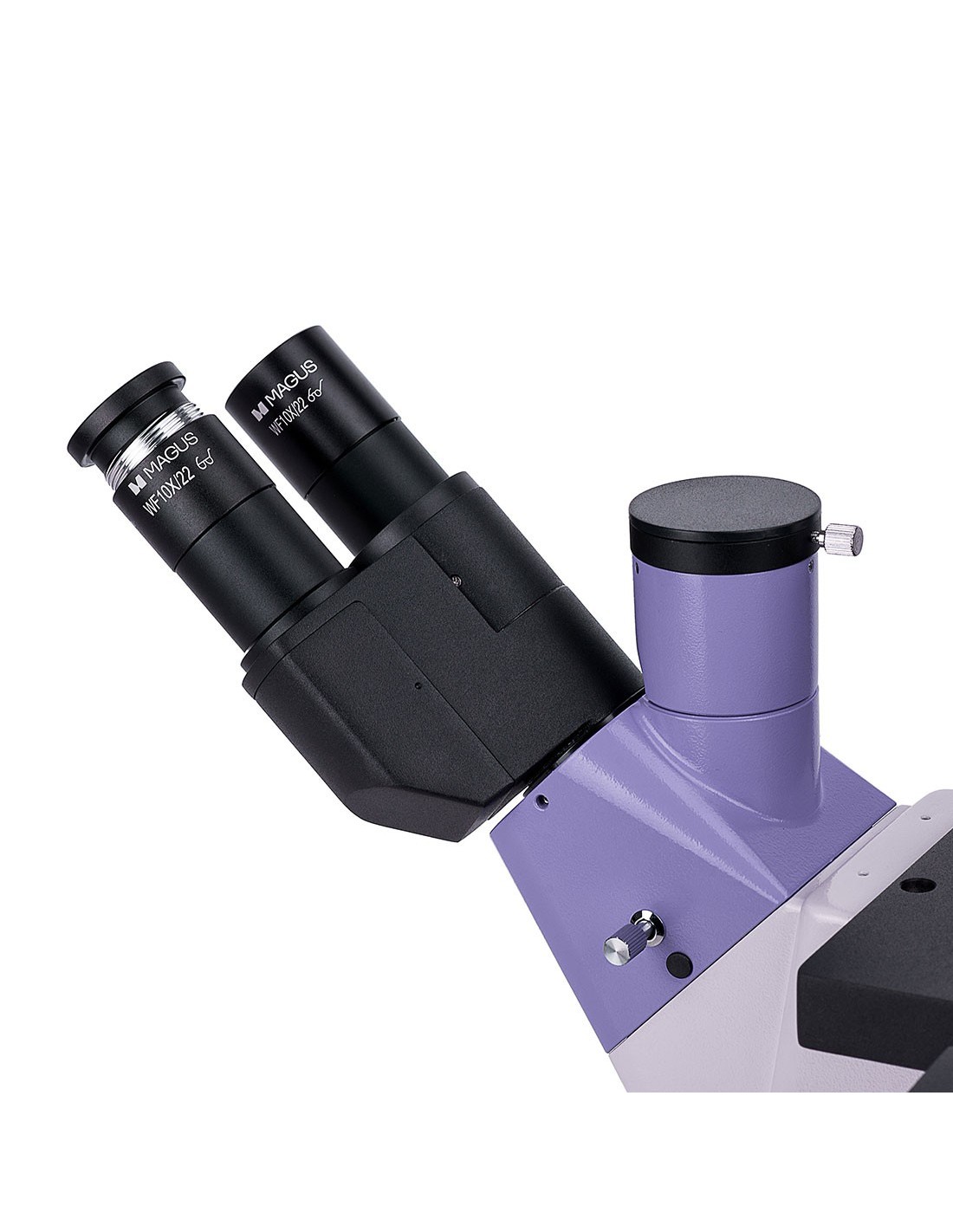

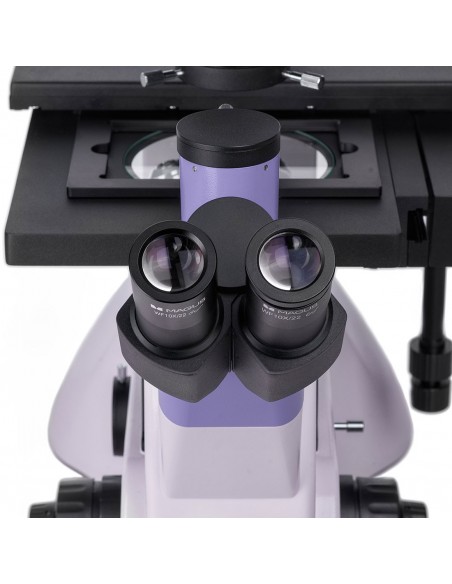

During the assembly of the microscope it is possible to select the position of the trinocular head: it can be rotated 180° to adjust the height of the exit pupil. Use the vertical tube to house the monitor and the side port on the microscope frame to install a digital camera. The beam splitter inserted in the stand divides the optical beam with a ratio of 100/0 or 0/100 while the beam splitter in the trinocular tube has a ratio of 50/50 (when open) or 100/0 (when closed).
Four infinity planachromatic objectives are included in the package, one of which is designed for phase contrast microscopy. Once all four objectives are installed, there is a free slot on the nosepiece for adding an additional objective.
Illumination
The capacitor for Phase contrast allows you to easily and practically switch from one microscopy technique to another. It has four working positions: with free aperture for bright field observations, 10x, 20x and 40x apertures for phase contrast with an appropriate magnification objective.

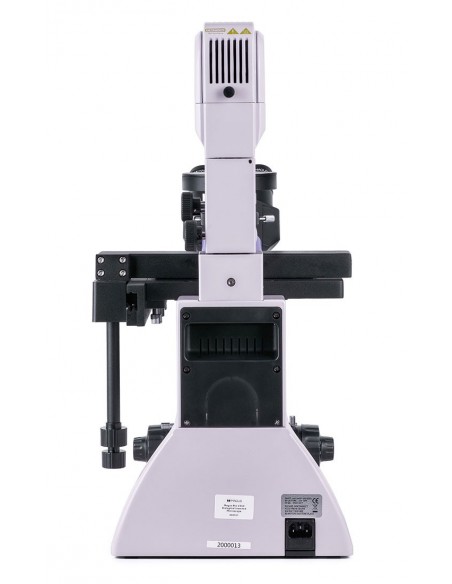

The light source for transmitted light observations it is a 30 W halogen lamp that emits light with a color temperature designed for greater visual comfort. The brightness is adjustable and the lamp is powered via AC electricity. The lighting system makes it possible to set up Köhler lighting to improve image quality.
Stage and focusing mechanism
In the box four plate holders are included. The supports can be moved along the X-axis and Y-axis via a translator insert, while the stage remains stationary. The housings are designed to accommodate glassware of various sizes.
The focusing mechanism is smoothly adjustable. The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. Fine focus scale value: 2 μm. The knobs are positioned at the base of the microscope and allow you to keep your hands in a more relaxed position while working.
Accessories
Additional accessories are available to maximize the potential of the microscope: eyepieces, phase contrast objectives, digital cameras and calibration slides.
Key features of the microscope:
- MAGUS CHD30 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, USB Wi-Fi adapter, 12 V/1 A AC power adapter (Euro), Installation CD with drivers and software, user manual and warranty certificate)
- MAGUS MCD20 LCD monitor
- For observing samples on laboratory glassware up to 55 mm high and with a bottom thickness of up to 1.2 mm
- By tilting the illumination support it is possible to use glassware with a height of up to 165 mm
- Bright field and phase contrast techniques; condenser for phase contrast with field diaphragm
- Stage with 4 plate holders of various sizes; mechanical insert for moving the sample in the horizontal plane
- The microscope has a 180° rotatable head
- Two options for installing the monitor and camera: the vertical tube and a port on the microscope frame
- Light source for transmitted light observations: 30 W halogen lamp powered by AC power supply
- A wide range of optional accessories
Key features of the camera:
- The camera works independently without a connection to a PC via the HDMI interface. It is possible to connect to a PC via USB 2.0 interface
- The autofocus in HDMI mode makes it easy to adjust the image sharpness
- The camera has a resolution of 1920x1080 pixels, the choice ideal for viewing images on a Full HD monitor
- 60 fps for observing moving objects, video recording and moving the specimen without delays or stutters
- 25 fps via Wi -Fi, sufficient for focus adjustment and image processing using software
- Color SONY CMOS sensor, low noise and high light sensitivity
- Software for recording and editing photos and videos, external display functions, linear and angular measurements
The package contains:
- MAGUS CHD30 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, USB Wi-Fi adapter, 12 V/1 A AC power adapter (Euro), CD installation manual with drivers and software, user manual and warranty certificate)
- MAGUS MCD20 LCD monitor
- Support with integrated power supply, transmitted light source, focusing mechanism, stage, condenser mount, rotating objective holder and trinocular tube
- Condenser for phase contrast
- Trinocular head
- Infinity planachromatic objective: PHP2 10x/0.25 contrast of phase WD 4.27 mm
- Plan achromatic objective at infinity: PL 10x/0.25 WD 4.27 mm
- Plan achromatic objective at infinity: PL 20x/0.40 WD 8.0 mm
- Infinity planachromatic objective: PL 40x/0.60 WD 3.5 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Centering telescope
- Round stage plate
- Mechanical translator for moving samples li>
- Support for plate (4 pcs.)
- C-mount adapter
- Color filter
- Power cable for AC mains
- Dust cover
- User manual and warranty card
Available upon request:
- Eyepiece 10x/22 mm with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective: PL 4x/0.10 WD 21 mm
- Infinity plan achromatic objective: PHP2 20x/0.40 phase contrast WD 8.0 mm
- Infinity plan achromatic objective: PHP2 40x/0.60 WD 3 phase contrast .5 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018133 |
| Package size (LxWxH) | 49x34x73 cm |
| Shipping weight | 22.25 kg |
| Delimiter | MAGUS Bio V350 inverted biological microscope |
| Type | biological, light/optical, digital< /td> |
| Head | trinocular |
| Vertical tube | Siedentopf, 180 rotatable ° |
| Head inclination angle | 45° |
| Magnification, x | 100–400 in the basic configuration (*optional: 40–500/600/800/1000) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL 10x/0.25; PL 20x/0.40; PL 40x/0.60; PHP2 10x/0.25 phase; parfocal distance: 45 mm (*optional: PL 4x/0.10; PHP2 20x/0.40 phase; PHP2 40x/0.60 phase) |
| Nosepiece nosepiece |
| Nosepiece | for 5 objectives |
| Working distance, mm | 4.27 (10x); 8.0 (20х); 3.5 (40x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 227x208 |
| Range of movement of the stage, mm | 77/114 |
| Table features | fixed, with Ø118 mm glass plate and mechanical slider; plate holder: 86x129.5, Ø90 mm; 34x77.5 mm, Ø68.5 mm; 57x82 mm, Ø60 mm; 29x77.5 mm, Ø35 mm |
| Condenser | NA0.6, working distance: 55 mm; turret for phase contrast |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| coaxial, coarse focus (with micrometer screw tension adjustment knob and fixing knob) and fine focus (0.002 mm micrometer screw) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Type of light source | 12 V /30 W |
| Optical filters | yes |
| Operating temperature range, °C |
| td> | 5 — 35 |
| Special Features | phase contrast capacitor (turret) with available housing and contrast ring plates phase for 10x, 20x and 40x objectives; auxiliary centering microscope |
| User level | expert users, professionals |
| Level of difficulty assembly and installation | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Research method | bright field, phase contrast microscope |
| Set with pencil case/case/bag | dust cover |
| === Delimiter === | Camera digital |
| Sensor | SONY CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/1.9" (7.20x4.05 mm) |
| 3.75x3.75 |
| Autofocus | yes |
| Interface connectors | Wi-Fi, HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB, Wi-Fi adapter (USB) |
| 802.11n, 150 Mbps, 20 dBm |
| Light Sensitivity | 1120 mV with 1/ 30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.06 ms – 918 ms |
| Video recording | yes |
| Location installation | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen ( WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range , % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Energy consumption, W | 12 (max.) |
