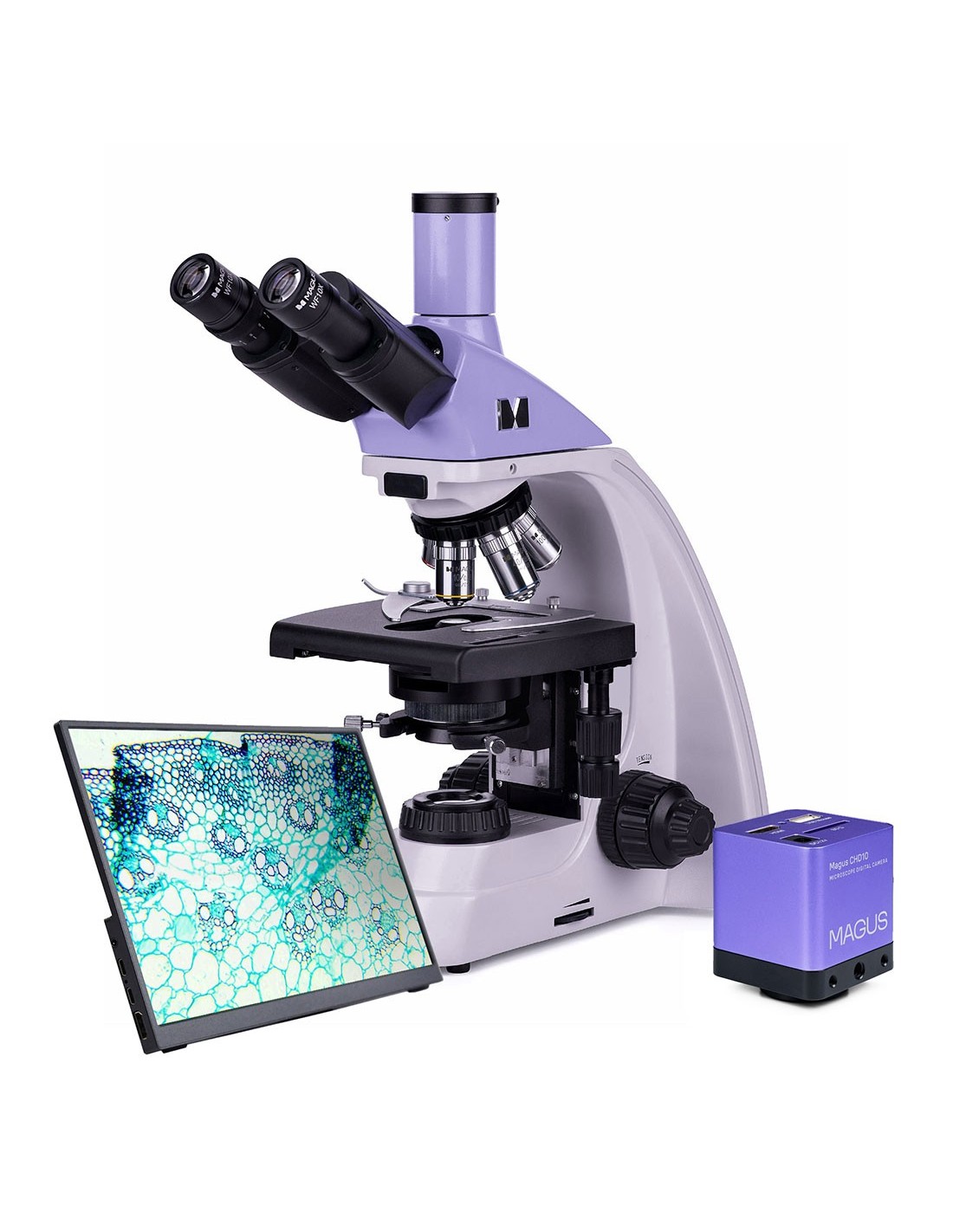

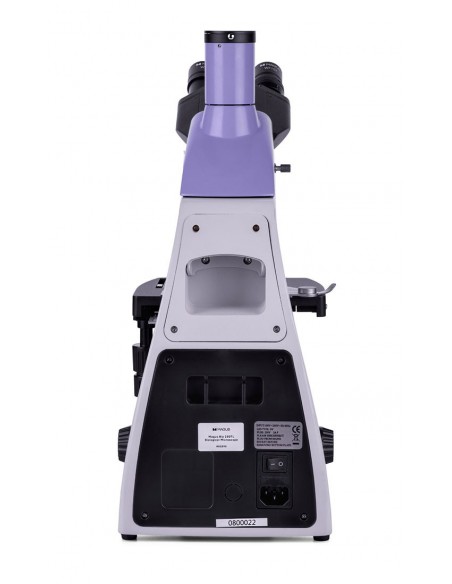

The MAGUS Bio 230TL biological microscope is an essential tool for a healthcare laboratory, diagnostic center or research institute. This microscope is equipped with a trinocular head and light source for transmitted light (LED) observations and is suitable for the analysis of semi-transparent preparations and naturally transparent samples. In its basic configuration, observations are made using the brightfield observation technique. With the use of additional accessories, it will be possible to carry out research with additional microscopy techniques such as dark field, polarized light and phase contrast observations.
Digital camera
MAGUS CHD10 is the camera with HDMI interface. The camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 pixels.
It is a standalone camera that does not require a connection to the computer or the installation of additional software. You can connect the camera directly to a TV, monitor or projector to display an image.
The HDMI interface allows for fast and stable speed transfer from the camera to the external screen. Video is recorded at 60 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

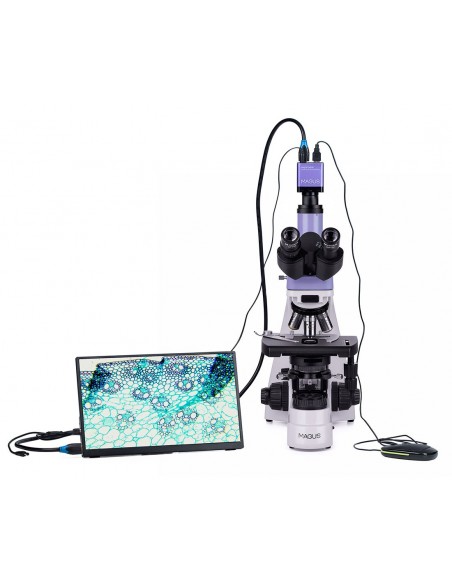

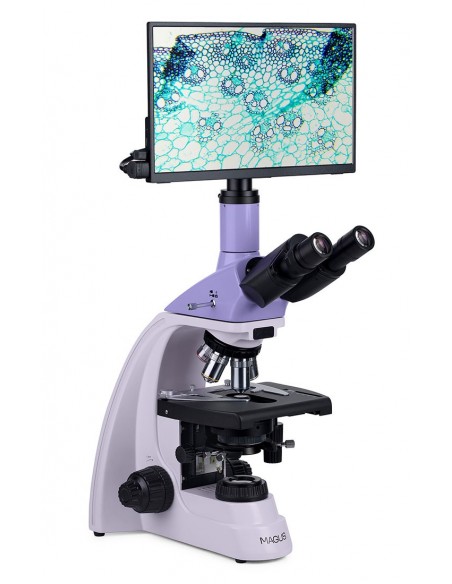

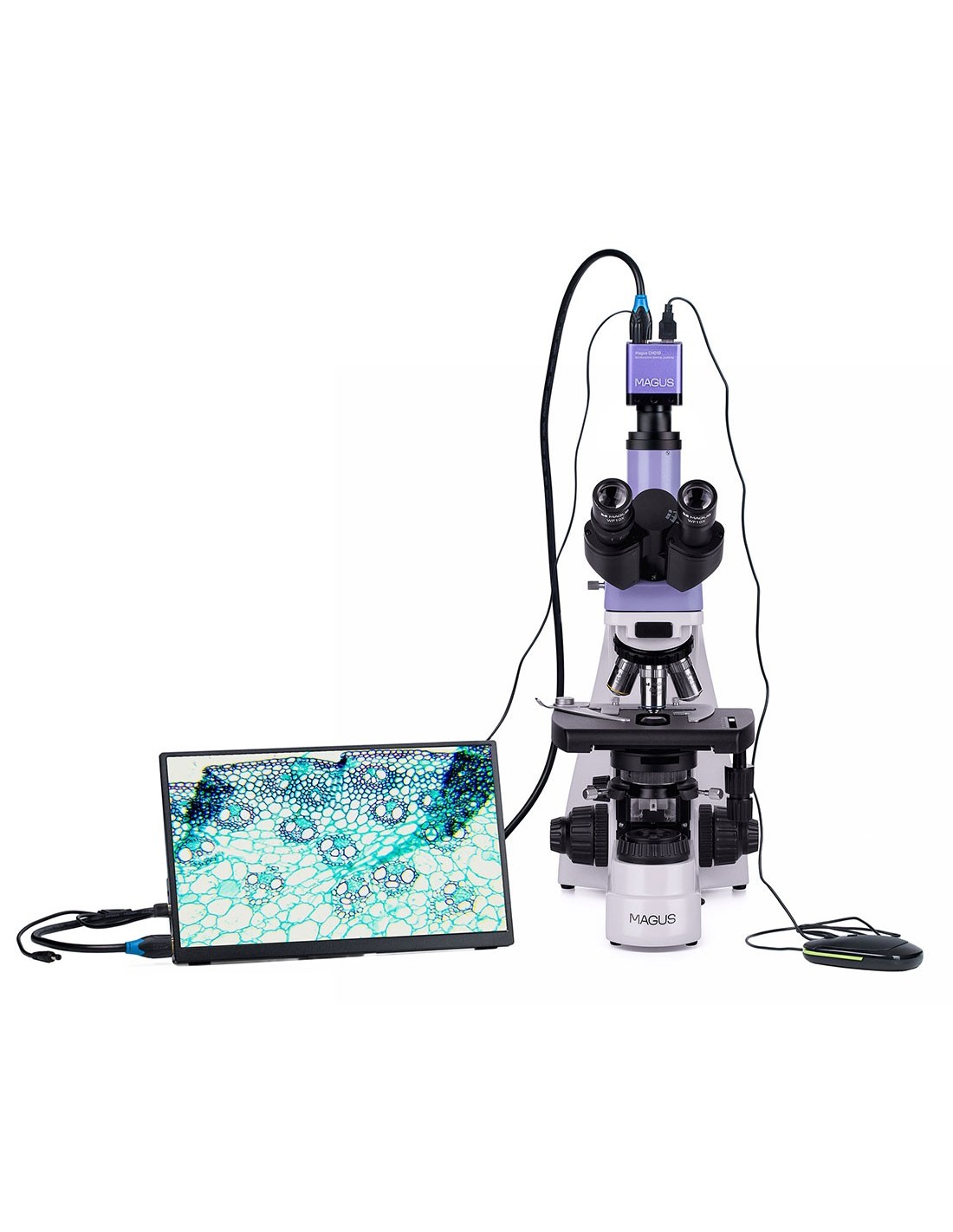

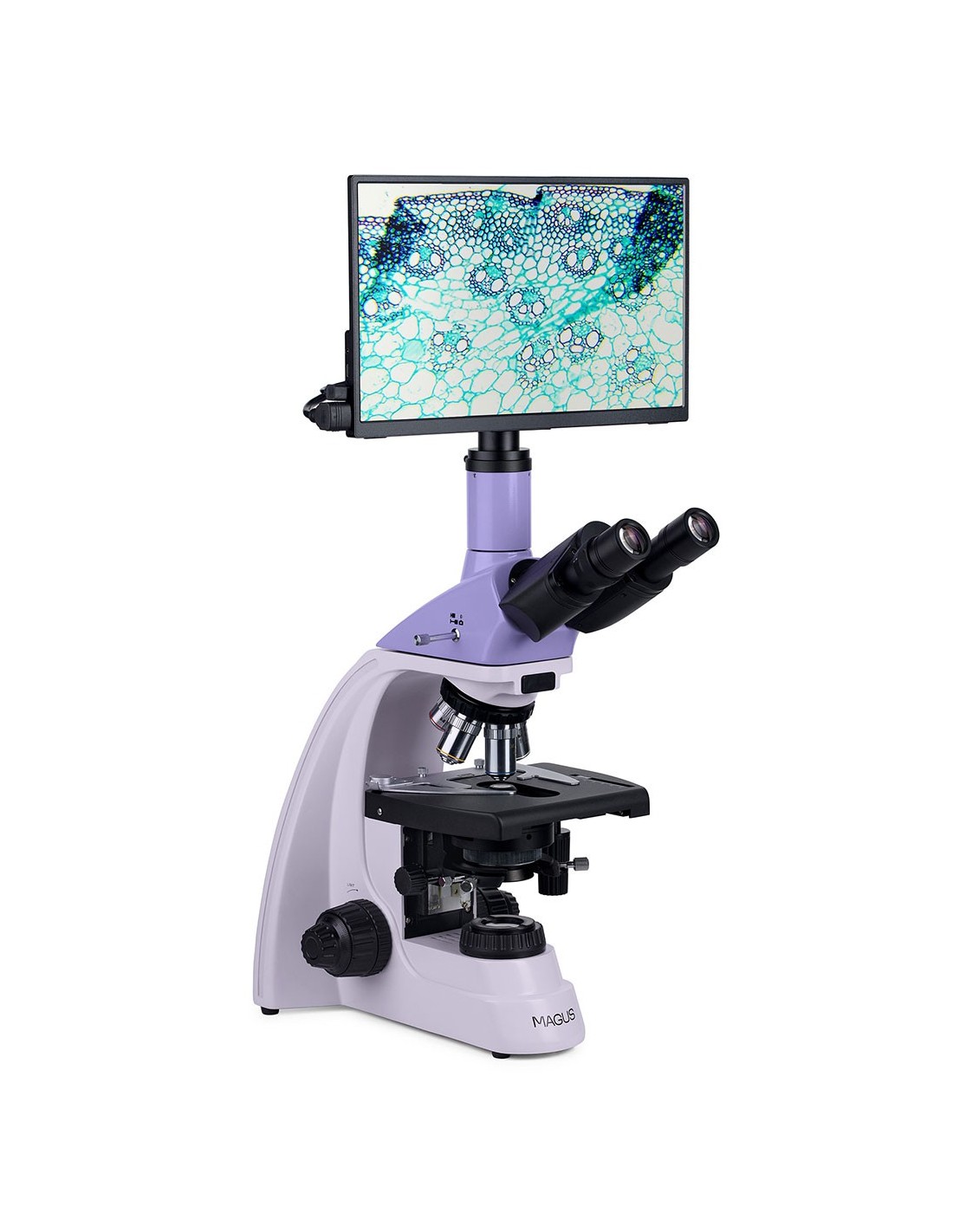

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

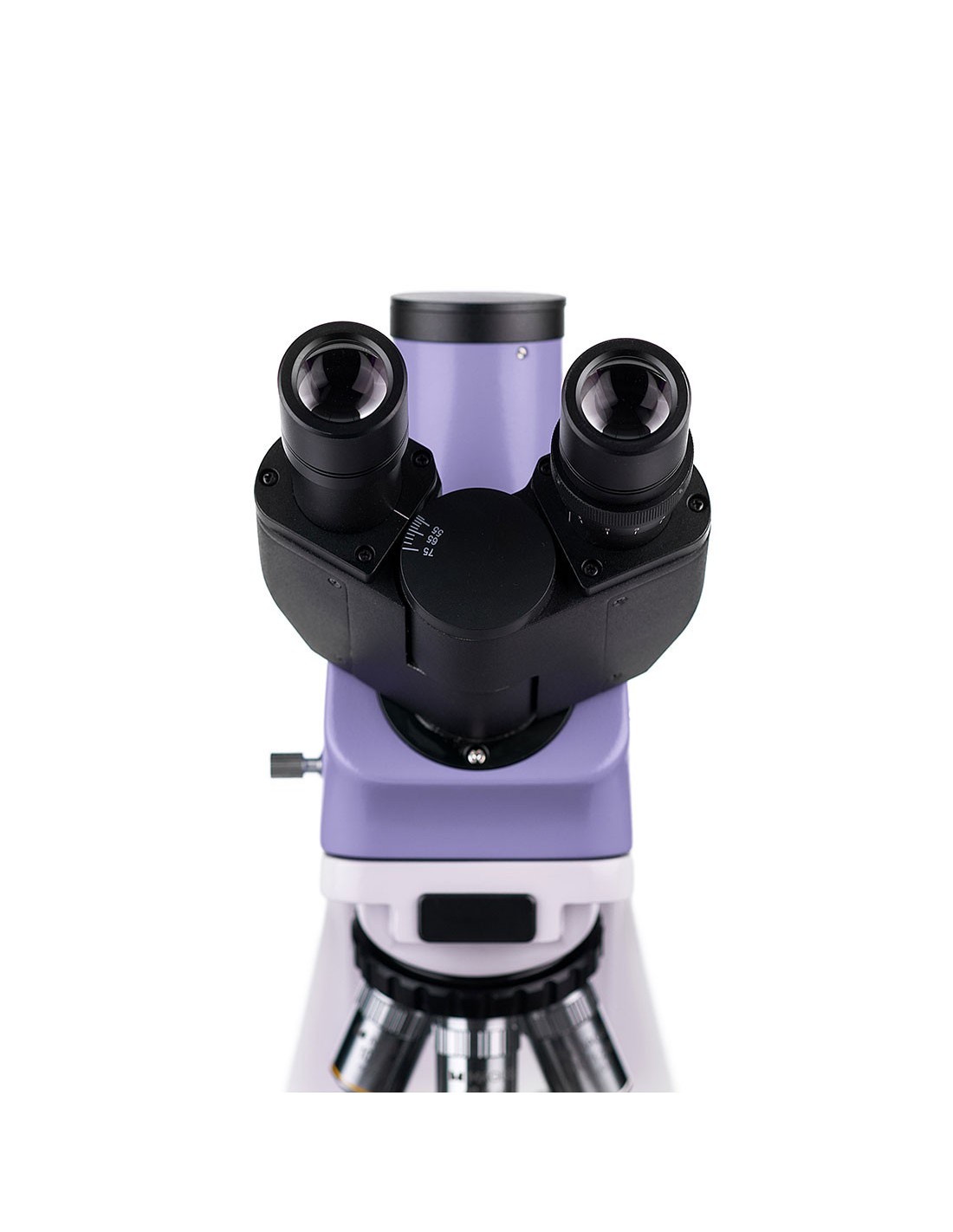

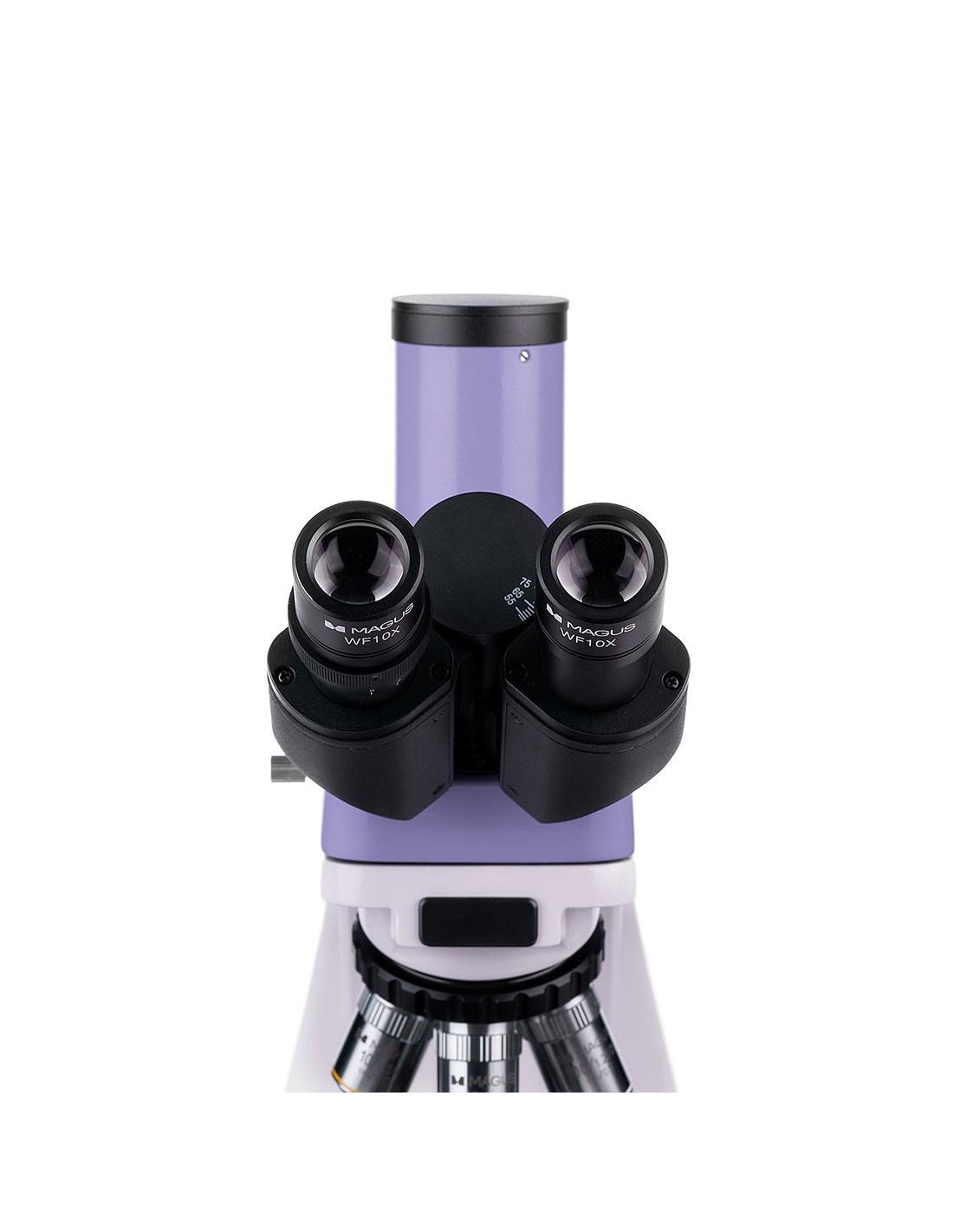

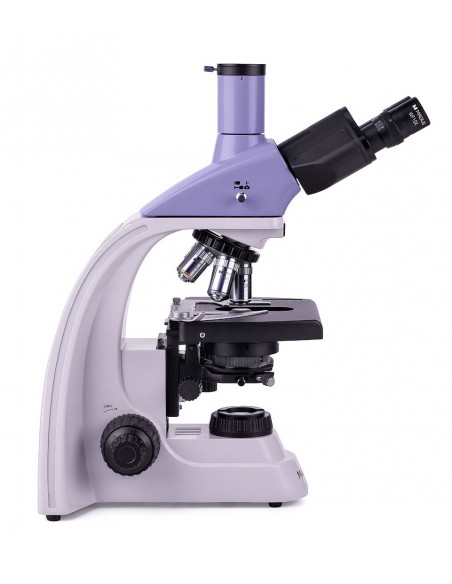

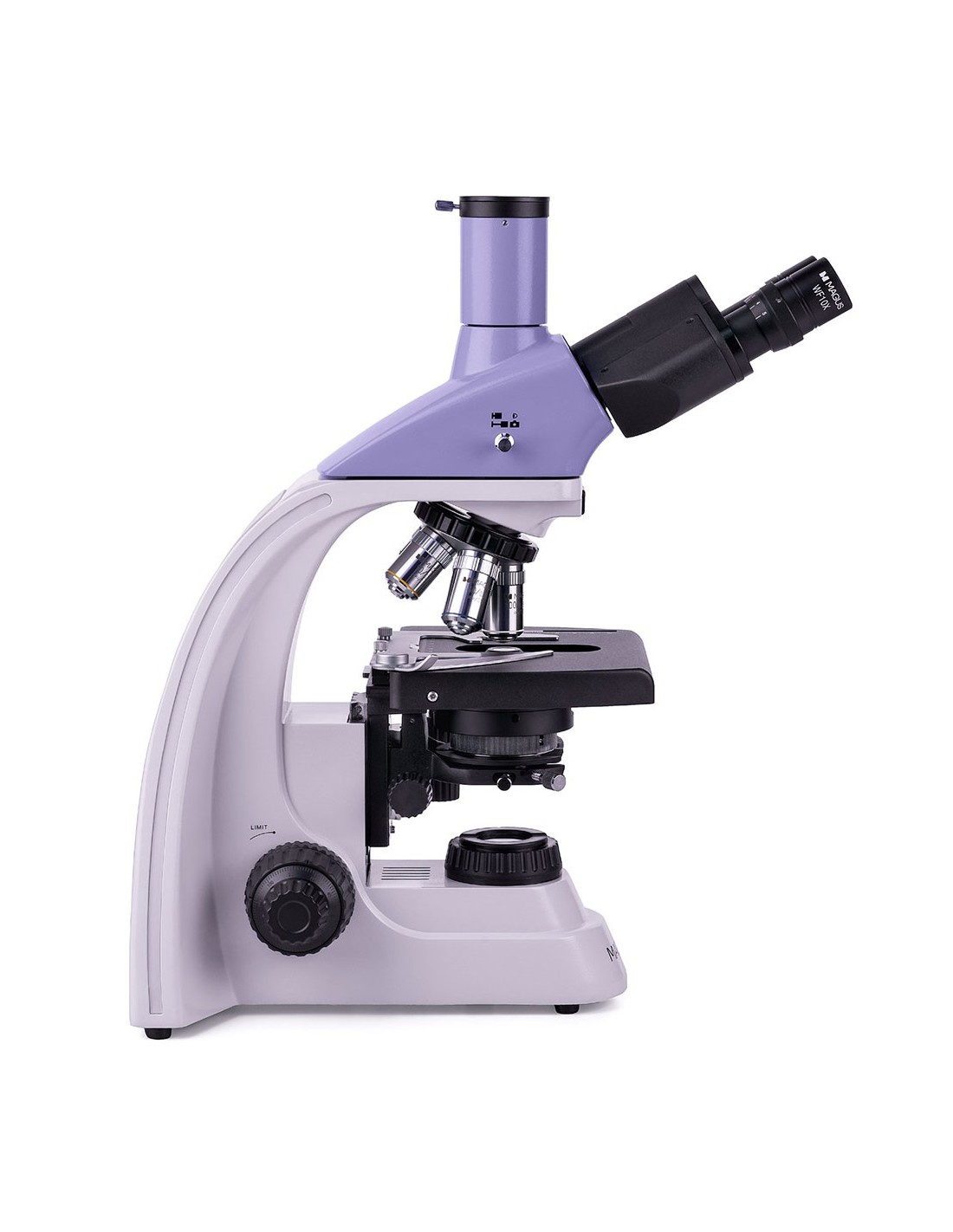

The optical tubes can rotate 360°, which makes it possible to adapt the position of the eyepieces according to the height of the observer. Diopter adjustment is available on the left barrel. There is a vertical tube for accommodating a digital camera (not included).
This microscope uses infinity corrected achromatic objectives and the nosepiece can accommodate up to 5 objectives simultaneously. In the basic configuration, one slot remains free for adding a fifth lens. The nosepiece with its objectives is oriented towards the inside of the instrument: in this way, the user can see which objective is inserted in the optical path. The microscope offers magnification ranging from 40x to 1000x, but the upper limit can be increased up to 1500x, 1600x or 2000x with the use of additional eyepieces.
Illumination

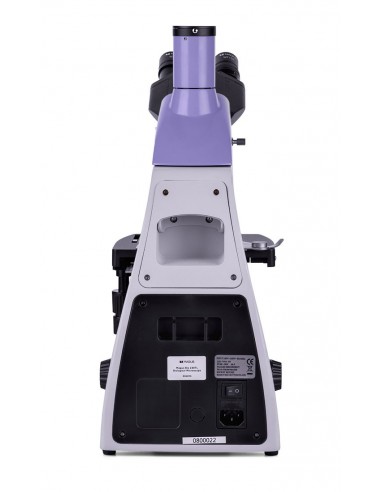

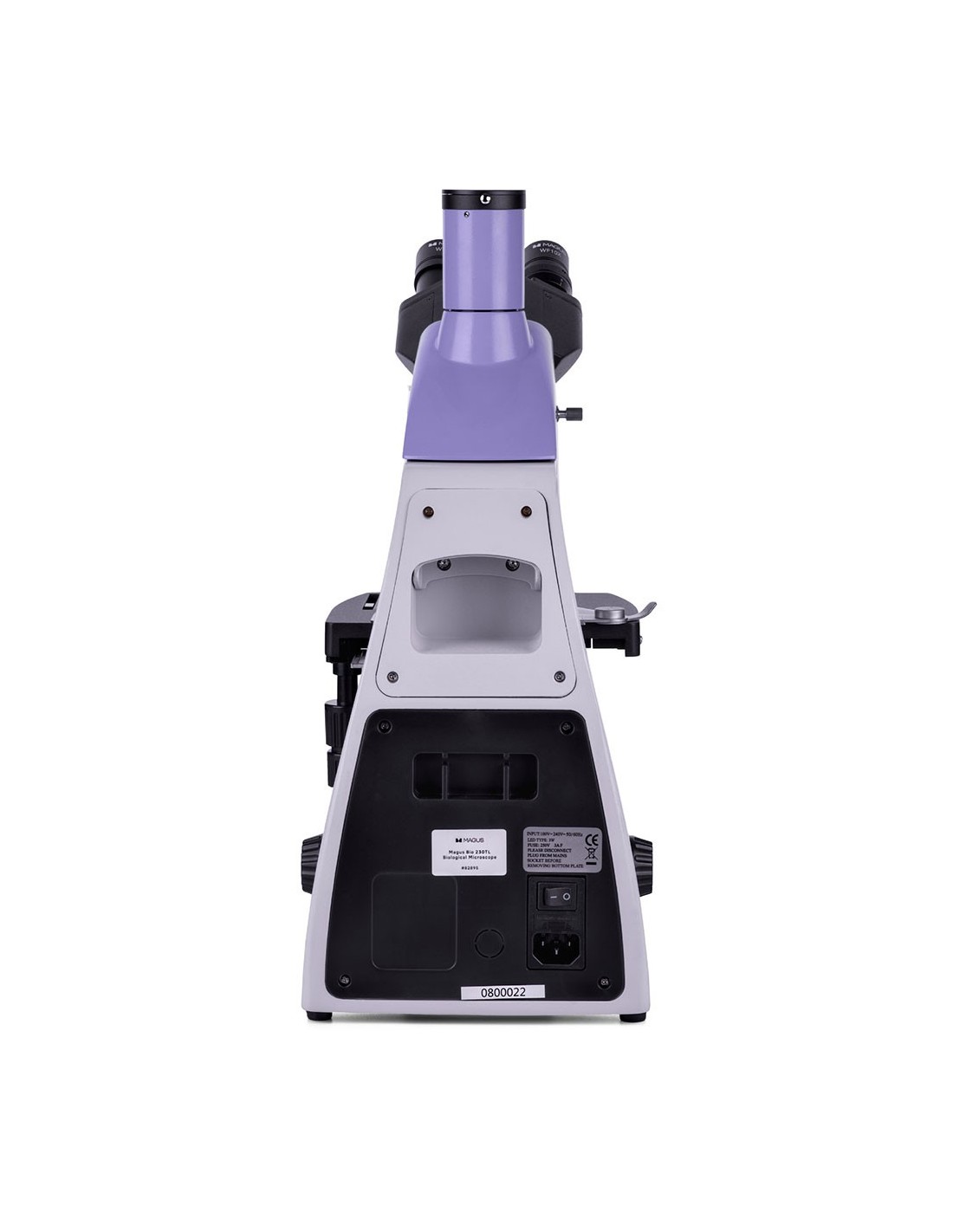

Thanks to the LED lamp, the color temperature does not change when the intensity of the lighting varies. The 3W LED light has a life cycle of 50,000 hours and is AC mains powered.
The Abbe condenser has an available slot for a dark field slider or a contrast slider phase. Thanks to the sliders, switching between the various microscopy techniques is much quicker. The microscope is also equipped with a field diaphragm for setting the Köhler illumination. The condenser is height-adjustable and can be centered.
Focusing stage and mechanism
Moving the sample is smooth and accurate. If necessary, the mechanical insert can be removed from the stage (for example, to perform a manual scan of the sample). Furthermore, it is easier to work with a table without a positioning rack.
The focus knobs are coaxial and positioned on both sides of the microscope base, which allows the user to freely position his hands on the table. There are knobs for coarse and fine focusing (macro- and fine). Their mechanisms move fluidly, without having to apply any effort. There is a tension adjustment knob for the coarse screw and a coarse focus fixing knob (coarse screw).
Accessories
The accessories additional ones expand the capabilities of the MAGUS Bio 230TL microscope, depending on specific applications. Accessories include eyepieces, objectives, dark field and phase contrast condensers, polarization instruments, digital cameras, calibration slides, etc.
Key Features of the Microscope:
- Trinocular head with vertical camera tube, 360° rotation, diopter adjustment on the left optical tube
- Nosepiece nosepiece for 5 objectives, infinity corrected achromatic objectives
- Observations in transmitted light, light source: 3 W LED with long useful life
- Coaxial knobs for coarse and fine focusing (coarse and fine screw), adjustment knob of the voltage for the coarse screw, fixing knob for coarse screw
- Condenser with a slot for a dark field slider or a phase contrast slider
- Possibility to install additional accessories
Key camera features:
- Standalone camera operation without PC connection or software installation
- HDMI interface for stable and fast data transfer
- Resolution 1920x1080 pixels, the ideal choice for viewing images on a Full HD monitor
- 60 fps for observing samples in motion, video recordings and sample movement without delays or stutters
- The color back-illuminated SONY Starvis CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images
- Software for photo and video recording and editing, external display, linear and angular measurements

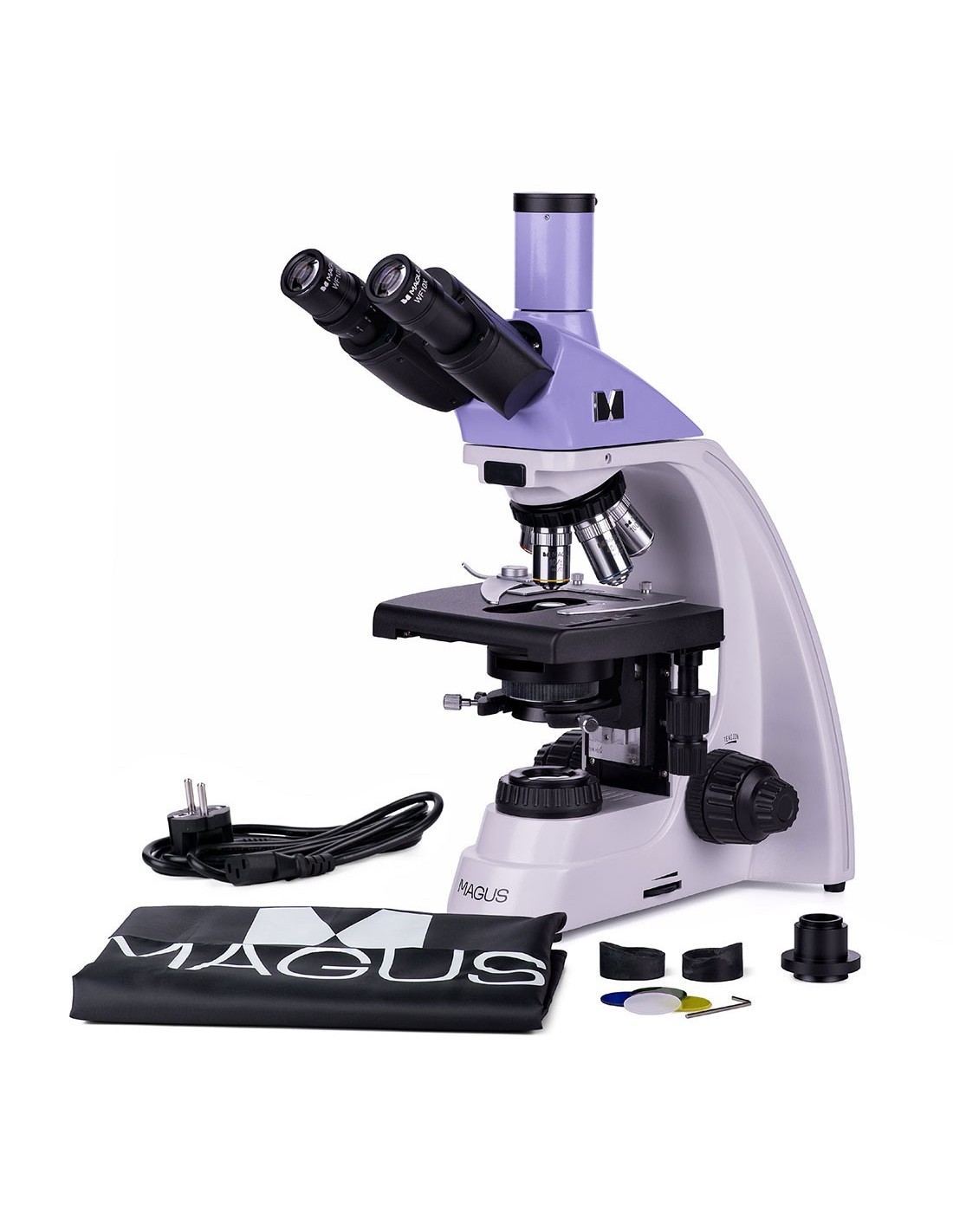

The package contains:
- MAGUS CHD10 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, power adapter AC 12 V/1 A (Euro), user manual and warranty certificate)
- MAGUS MCD20 LCD monitor
- Base with power input, light source for transmitted light observations, mechanism focusing mechanism, stage, condenser attachment and nosepiece revolver
- Abbe condenser
- Trinocular head
- Achromatic infinity objective: 4x/0.10
- Achromatic objective at infinity: 10x/0.25
- Achromatic objective at infinity: 40x/0.65 (with spring mechanism)
- Achromatic objective to infinity: 100x/1.25 oil (with spring mechanism)
- 10x/18 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.) )
- Filter (4 pcs.)
- C-mount adapter
- Vial of immersion oil
- AC power cord
- Dust cover
- User manual and warranty card
Available upon request:
- 10x/20 mm eyepiece with graduated scale
- 15x/11 mm eyepiece (2 pcs.)
- 16x/11 mm eyepiece (2 pcs.)
- Eyepiece 20x/11 mm (2 pcs.)
- Achromatic objective at infinity: 20x/0.40
- Planachromatic objective at infinity: 20х/0.40
- Infinity plan achromatic objective: 60x/0.80 (spring loaded)
- Phase contrast device
- Phase contrast slider
- Dark field condenser with NA 0.9
- Oil dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization instruments
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555017990 |
| Package size (LxWxH) | 43x27x63 cm |
| Shipping weight | 12.65 kg |
| Delimiter | MAGUS Bio 230TL biological microscope |
| === Delimiter === | Specifications of the microscope |
| Type | biological, light/optical, digital |
| Tested | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Tilting angle of the head | 30° |
| Magnification, x | 40–1000 in the basic configuration (*optional : 40–1500/1600/2000) |
| Magnifying range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | 10х/18 mm, eye relief: 10 mm (*optional: 10x/20 mm with scale, 15x/11 mm, 16x/11 mm; 20x/11 mm) |
| Infinity corrected achromatic objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and focus adjustment knob tension of the micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 3 W LED |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with case/case/bag | anti-cover powder |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
| === Delimiter === | Digital camera |
| Sensor | SONY Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size |
| Sensor size |
| td> | 1/2.8" (5.57x3.13mm) |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors | HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Ability to connect additional equipment | mouse with USB |
| Light sensitivity | 1300 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 60@1920x1080 (HDMI) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg |
| Video format | *.h.264, *.mp4 |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated |
| System requirements |
| System requirements |
| td> | does not require a computer connection |
| Mount type | C mount |
| robust aluminum |
| Camera power supply | AC adapter 12 V, 1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % |
| === Delimiter === | Monitor |
| Type of matrix | IPS |
| Display diagonal, inches | 13.3 |
| Resolution display, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Power Consumption, W |
