MAGUS Metal V700 BD inverted metallographic microscope - MAGUS

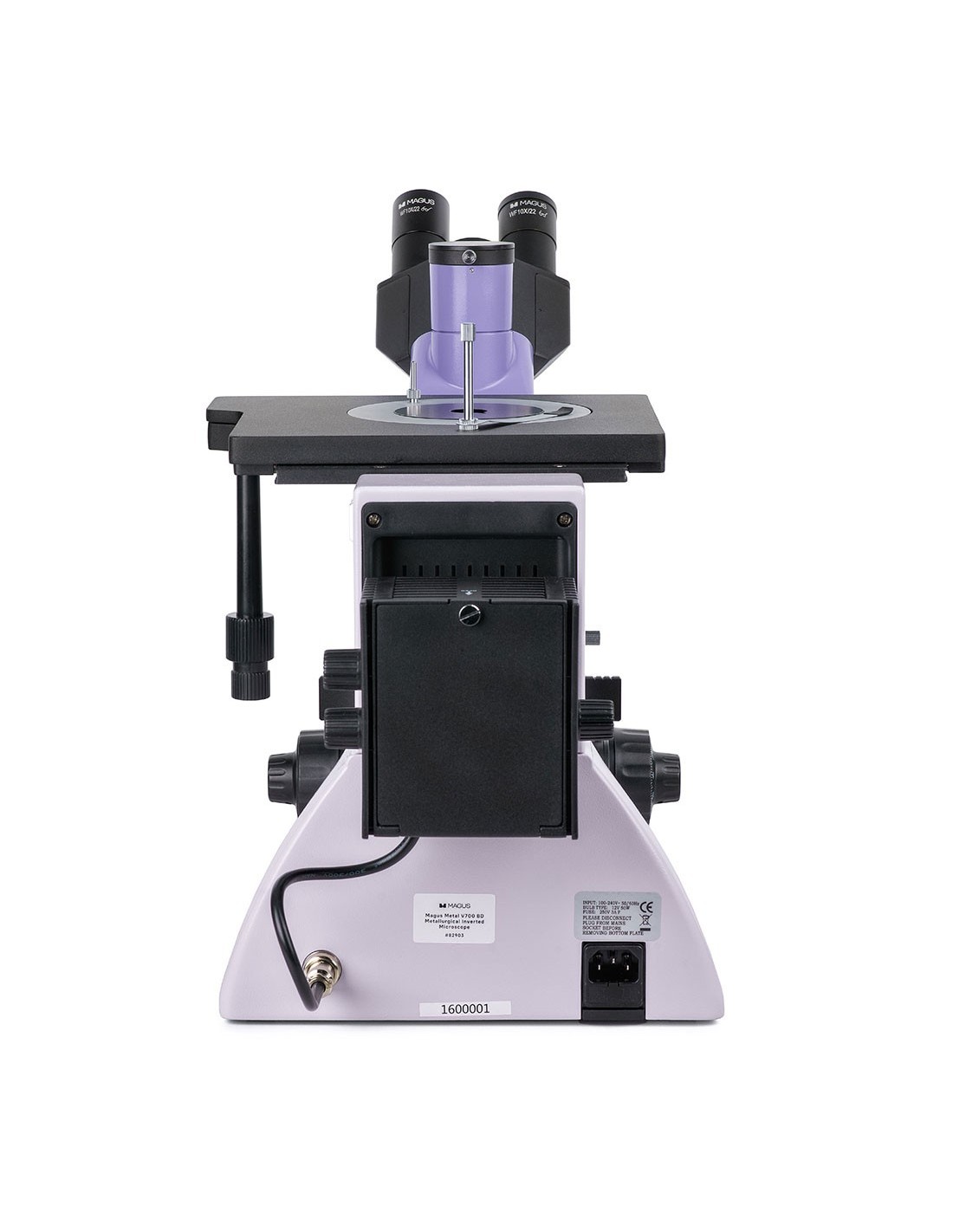

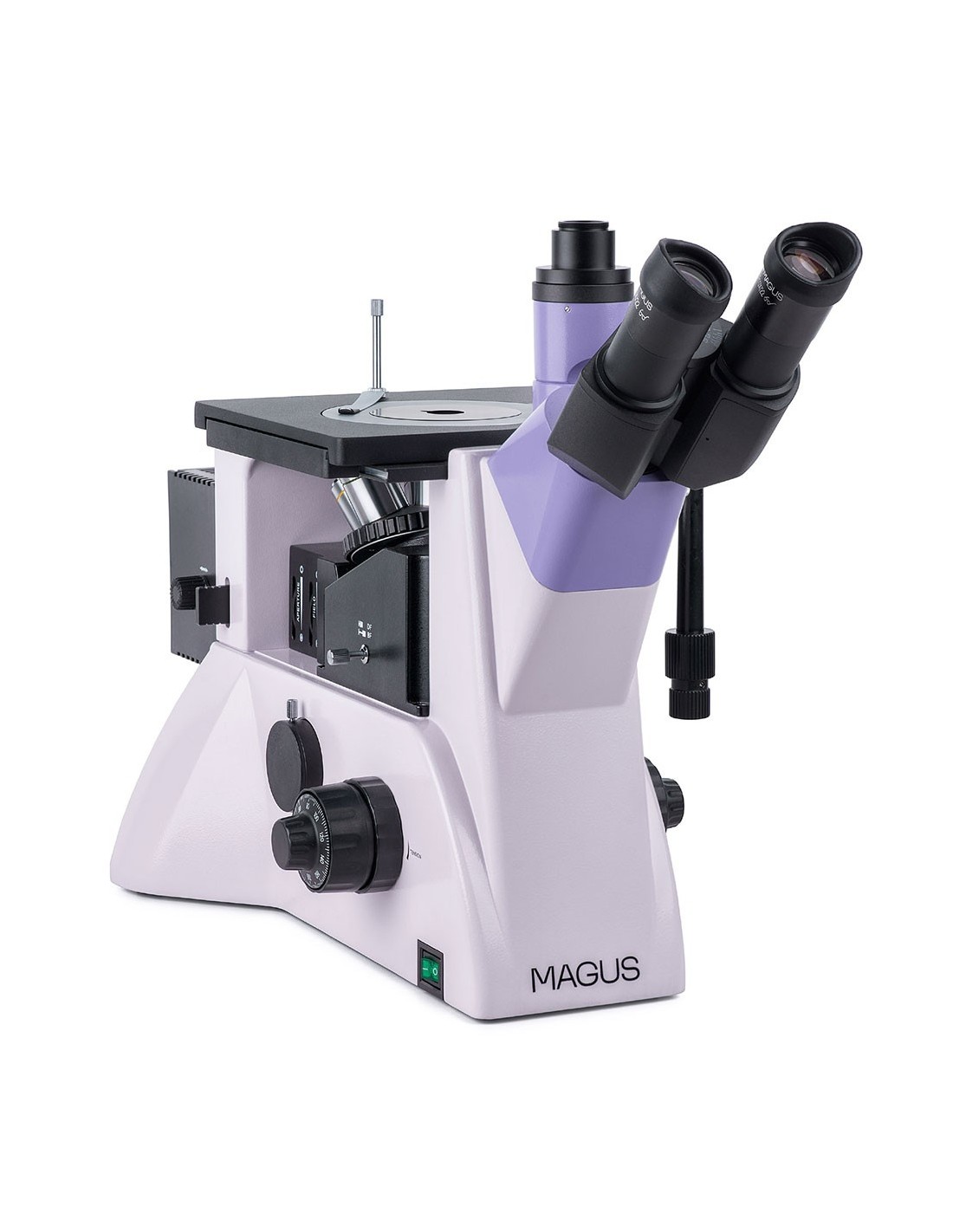

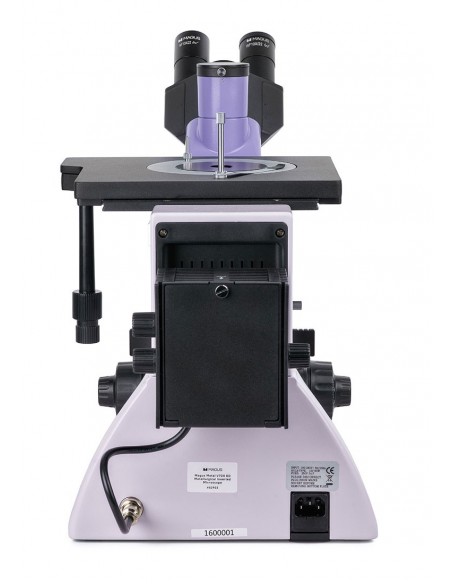

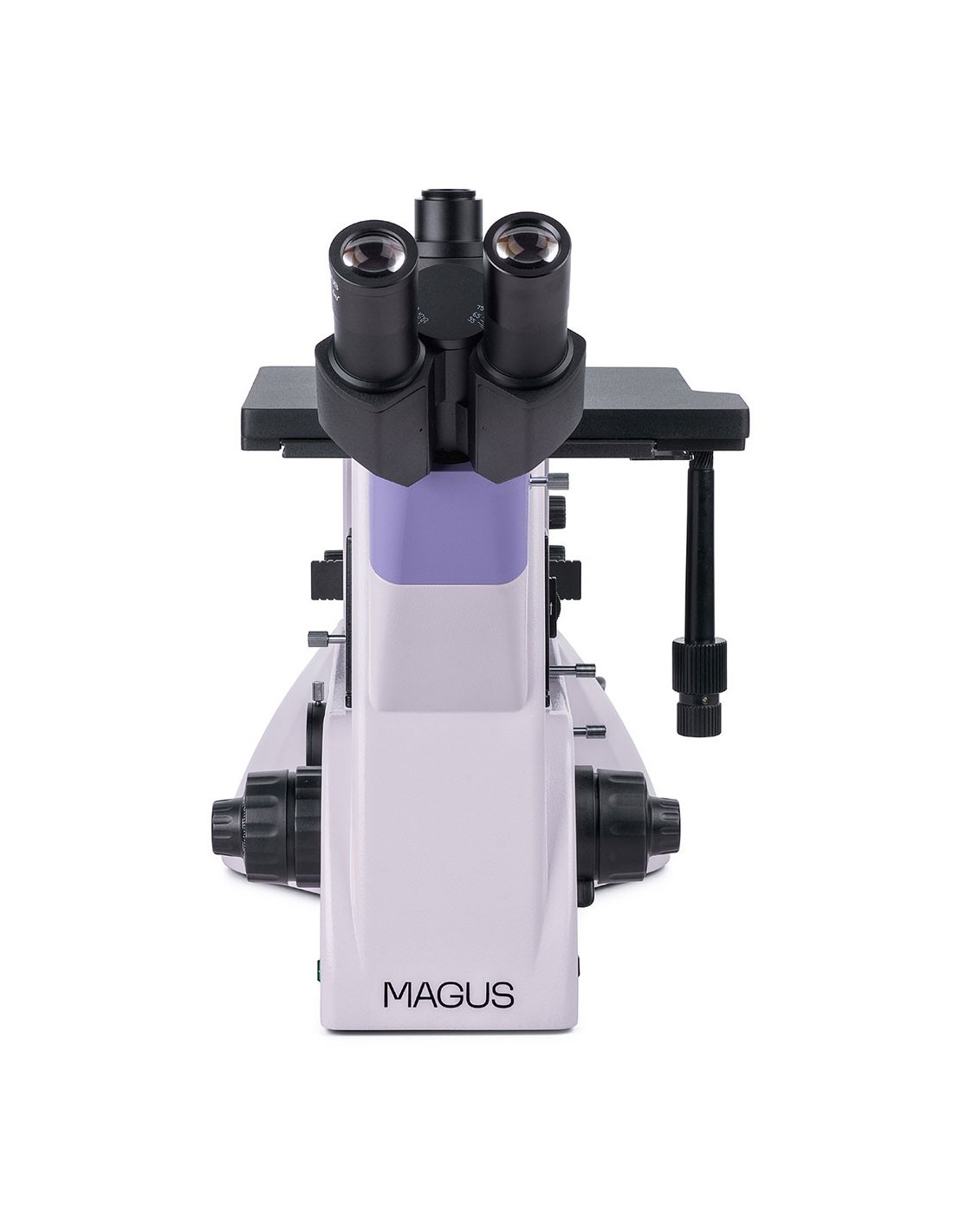

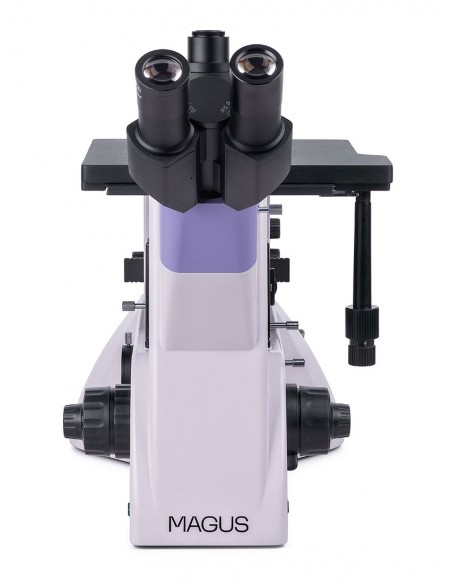

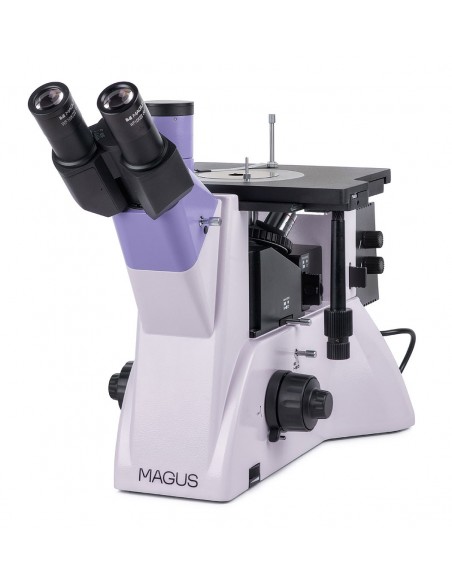

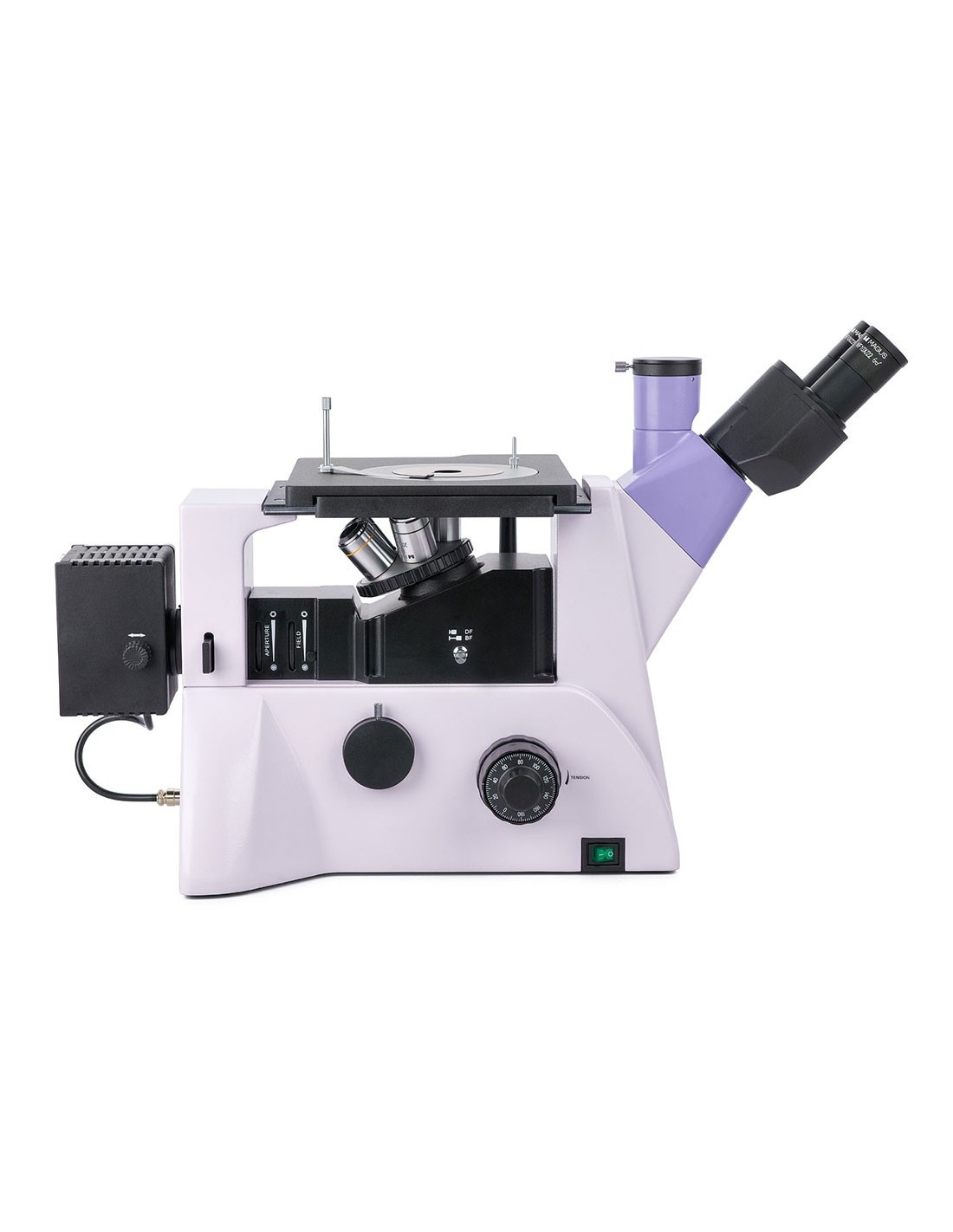

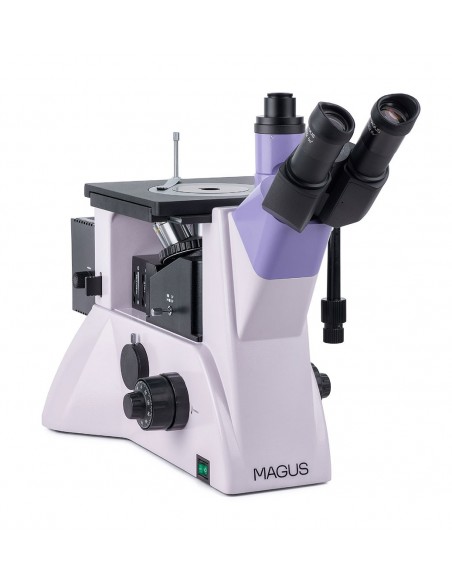

The MAGUS Metal V700 BD metallographic microscope is an inverted metallographic microscope: this means that the nosepiece is positioned below the sample and that observations are carried out in reflected light. Available microscopy techniques: bright field, dark field or polarized light. This microscope is used for the examination of metals, alloys, semiconductor materials and other non-transparent materials of large dimensions weighing up to 2 kg. It is widely used in industrial plants, factories, quality control laboratories as well as universities and research centers.

Optics

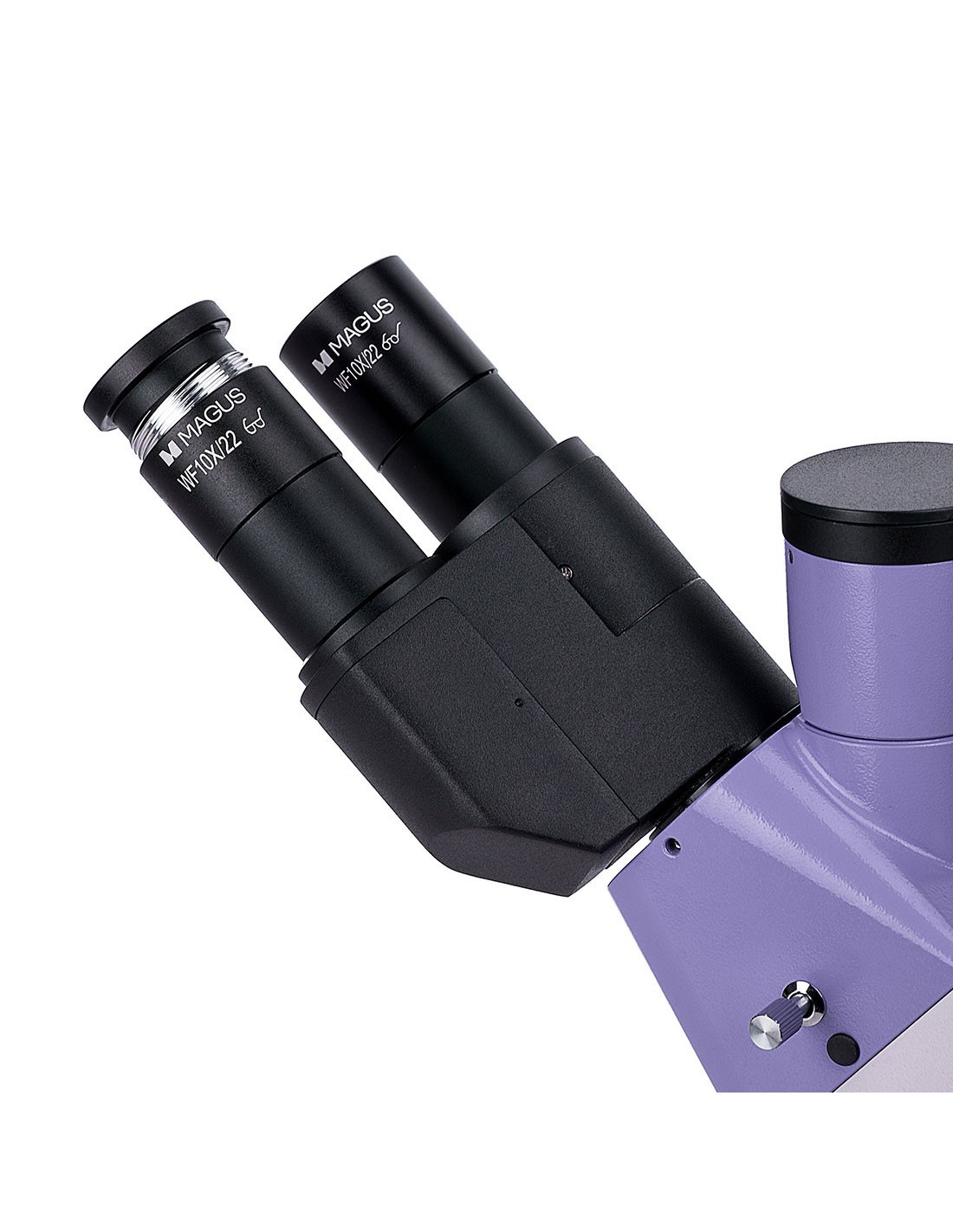

The design of the microscope will allow you to assemble the head in the normal direction or by rotating it 180°. A digital camera and monitor can be installed: the microscope head is equipped with a trinocular tube, and there is a side camera port on the frame. In both optical paths there is a beam splitter: with a ratio of 50:50 and 100:0 for the microscope head, 100:0 and 0:100 for the frame.

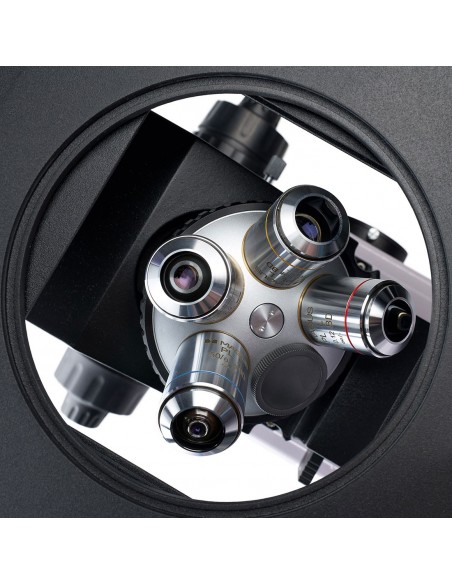

An nosepiece revolver for 5 objectives it is positioned below the sample to be observed. There are 4 slots to install the lenses included in the package and an additional slot for an additional lens. All objectives for this microscope are labeled BD, meaning specifically designed for both brightfield and darkfield microscopy, and have a long working distance.

Illumination

Light source: 50W halogen lamp. The warm light reduces eye strain and is ideal for long hours spent working under the microscope. Thanks to the powerful illumination, you obtain sharp, detailed images using any microscopy technique and any objective. The light source can be centered along the three axes and the Köhler illumination can be adjusted via the field and aperture diaphragms. The illumination system for reflected light observations also includes a polarization device and the necessary instrumentation for dark field microscopy.

Stage and focusing mechanism

A round, rotating plate is positioned in the center of the table. Different plates can be used, depending on the observation you want to make: they differ from each other in the diameter of the hole: 10 mm, 20 mm or 30 mm. After placing the sample on the stage, you can secure it with a support system. The sample moves integrally with the stage in two directions: along the sharpness adjustment. Coaxial knobs for coarse and fine focusing (coarse and fine screw) are positioned on both sides so you can rest your hands on the table while using the microscope, without having to hold them in mid-air to adjust the focus. instrument.

Accessories

By adding additional accessories to the MAGUS Metal V700 BD microscope you can increase its performance. The range of accessories includes eyepieces, darkfield and brightfield objectives with long working distance, digital cameras and calibration slides.

Key features:

• Stage with round plate and 10 mm, 20 mm and 30 mm holes; suitable for examining large and heavy samples
• Bright field, dark field or polarized light microscopy techniques
• Possibility to rotate the microscope head by 180° during installation
• Two options for housing the digital camera and installing a monitor: the trinocular tube and the side camera port; beam splitter: 100:0 and 0:100 in the microscope frame, 50:50 and 100:0 in the trinocular head
• Powerful illumination with halogen lamp (50 W) for comfortable observations using dark field techniques, brightness control, Köhler illumination, color filters and light source that can be centered on three axes
• Optional accessories to improve the performance of the microscope

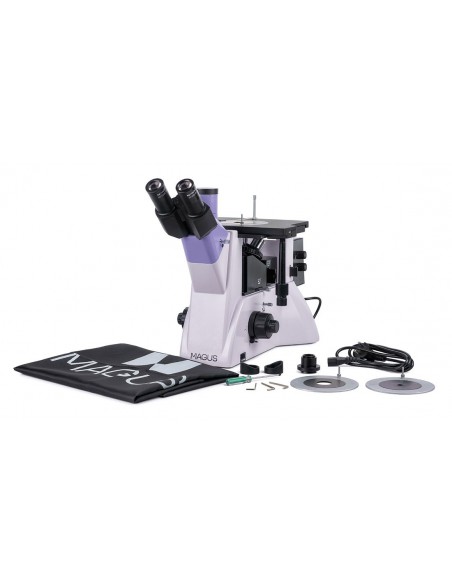

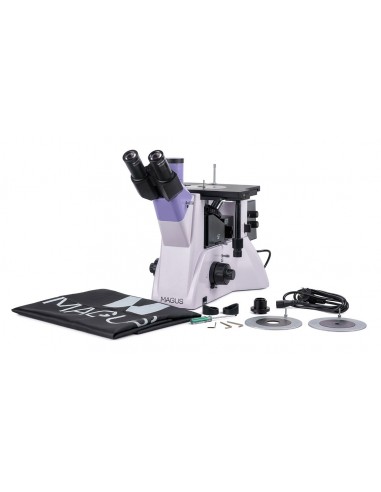

The package contains:

• Stand with power input, focusing mechanism, stage and nosepiece
• Illuminator for reflected light observations with housing for bulb
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
• Infinity plan achromatic objective: PL L10x /0.25 BD WD 9.3 mm
• Plan achromatic infinity objective: PL L20x/0.40 BD WD 7.2 mm
• Plan achromatic infinity objective: PL L50х /0.70 BD WD 2.5 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• Allen key
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• Eyepiece 10x/22 mm with graduated scale
• Eyepiece 12.5x/14 mm (2 pcs.)
• Eyepiece 15x/15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.) li>
• Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
• Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9 mm
• Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8 mm
• Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD : 0.4 mm
• Digital camera
• Calibration glass
