Levenhuk DTX 500 Mobi digital microscope - LEVENHUK

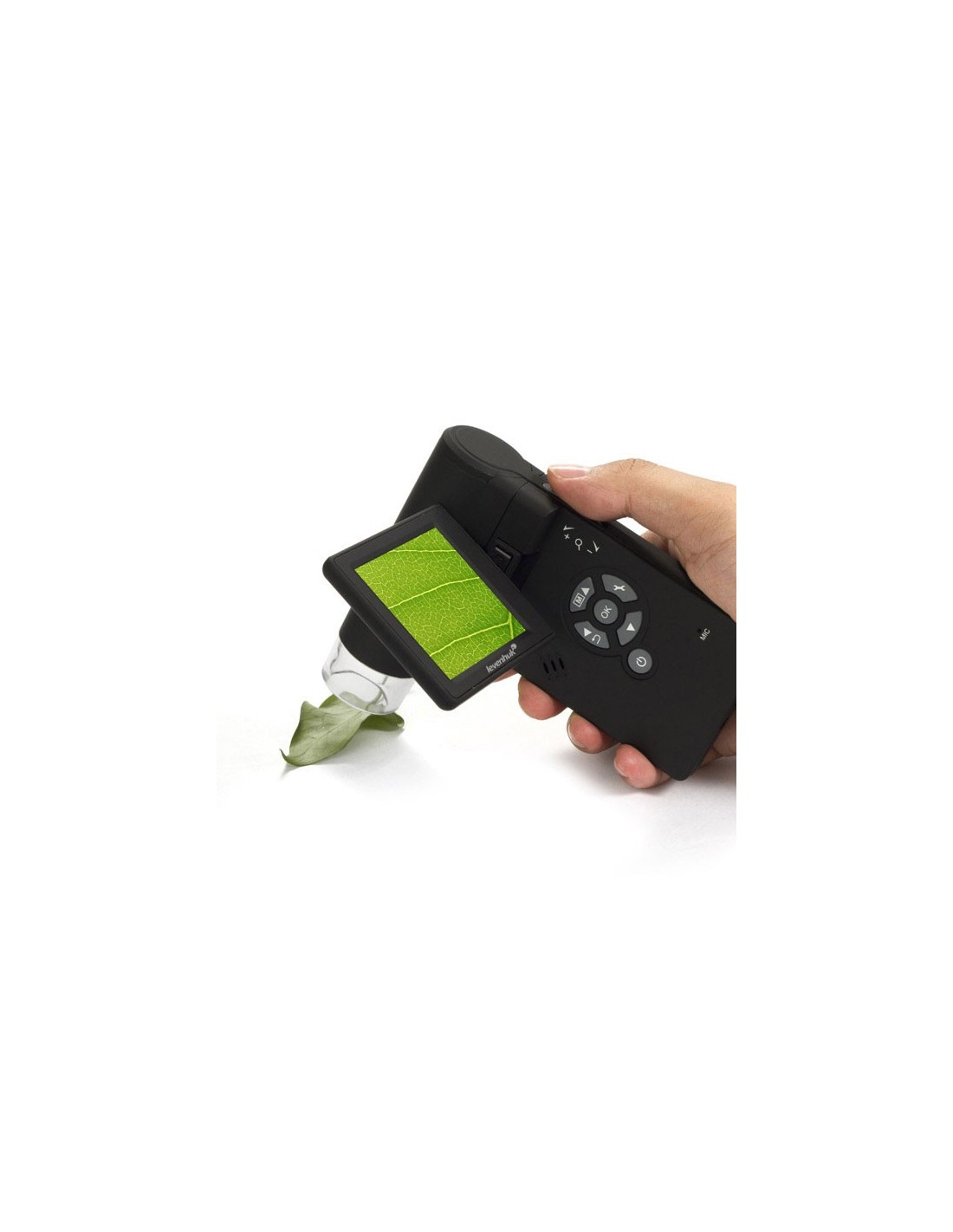

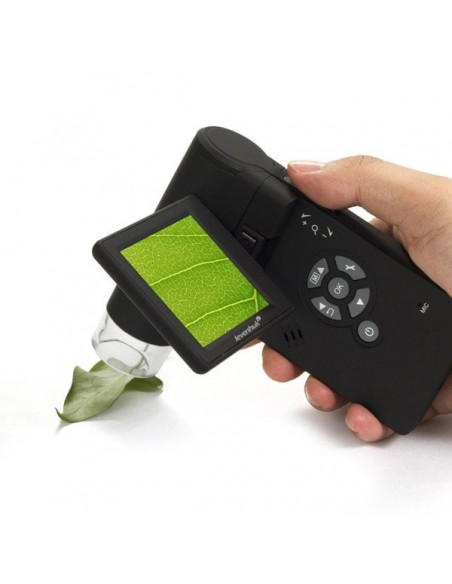

Levenhuk DTX 500 Mobi is a portable microscope with an integrated 3-inch color LCD display. This model provides up to 500x magnification and features a smooth digital zoom of up to 4x. Levenhuk DTX 500 Mobi is ideal for microscope observations of any surface, whether at home or away. All this makes the microscope a great gift for any student. A hand-held microscope is often used to check merchandise in stores and spot any mold growing on fruits and vegetables.
Levenhuk DTX 500 Mobi is a portable microscope with an integrated 3-inch color LCD display. This model provides up to 500x magnification and features a smooth digital zoom of up to 4x. Levenhuk DTX 500 Mobi is ideal for microscope observations of any surface, whether at home or away. All this makes the microscope a great gift for any student. A hand-held microscope is often used to check merchandise in stores for mold growing on fruits and vegetables.
The Levenhuk DTX 500 Mobi digital microscope allows you to easily take photographs and record videos of observed objects. All files created during observations are stored on the microSD card. To transfer images and videos to your PC, you need to connect the microscope to it via the USB cable, included in the kit. The kit also includes special software that allows you to edit the created files and take precise measurements of linear dimensions, radii and angles with accuracy of 1 micrometer.
The Levenhuk DTX 500 Mobi digital microscope is powered by the lithium ion battery, included in the kit, with an autonomy of approximately 4 hours.
The rubber coating of the microscope body makes it pleasant to the touch, offers a comfortable grip and prevents it from slipping from your hand.
Features:

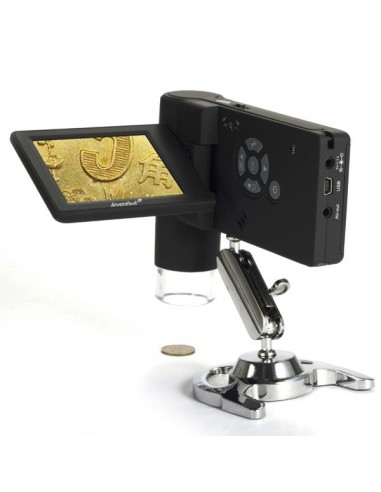

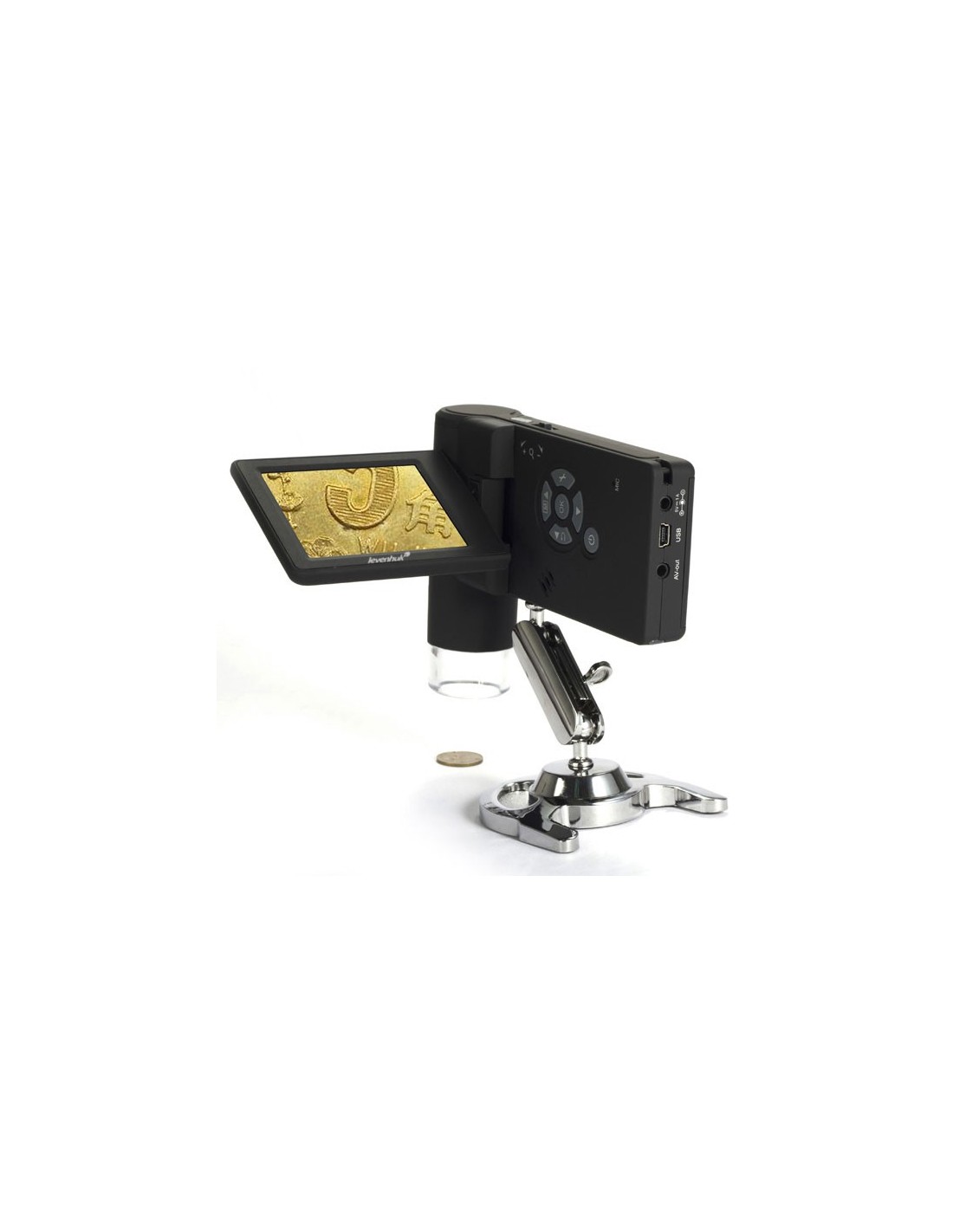

- 3-inch rotatable LCD display
- Support for microSD cards with 32 GB capacity
- PC connection via USB 2.0 interface
- AV socket for connection to TV or projector
- Ability to take photographs/videos
- Automatic exposure and balance of white

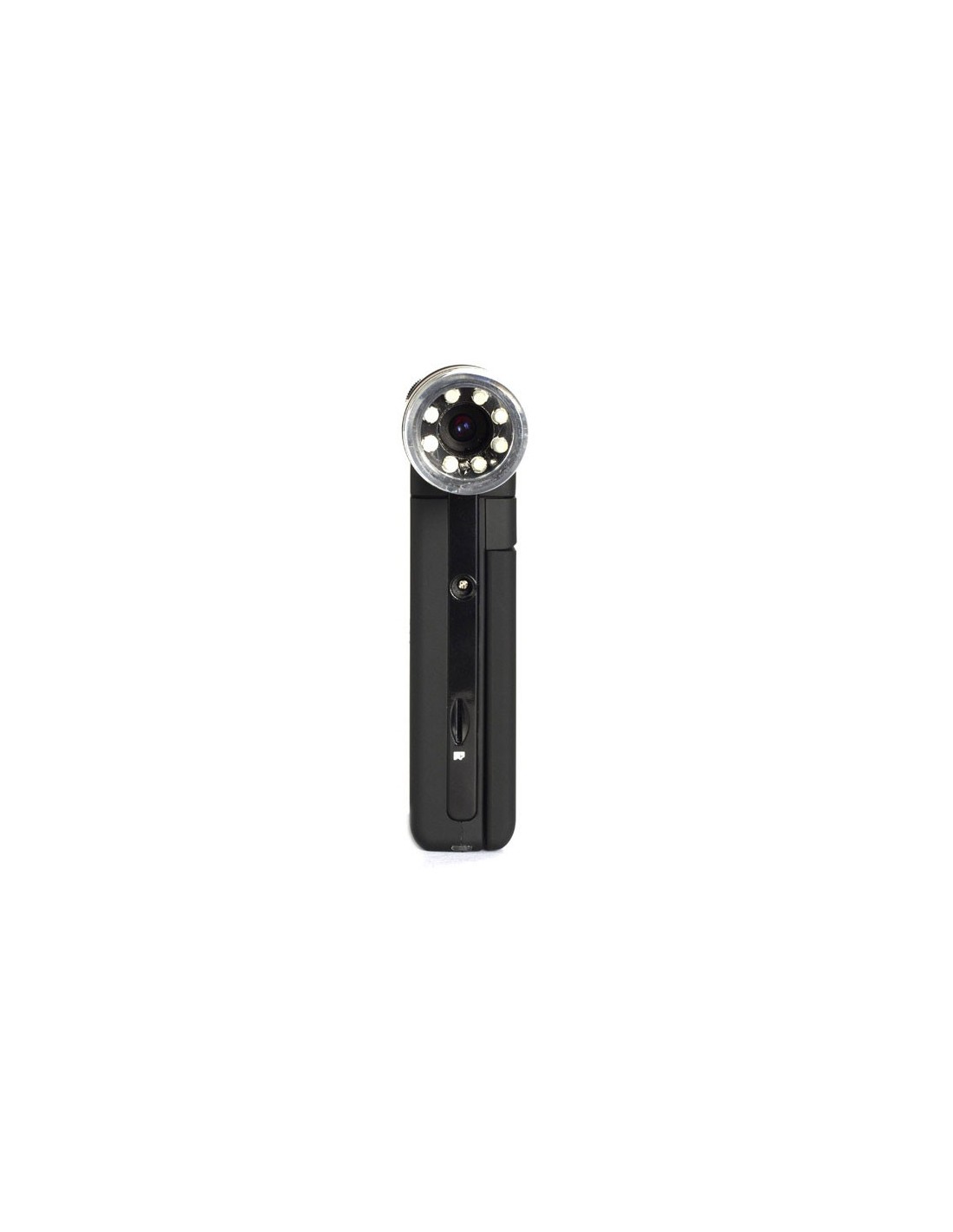

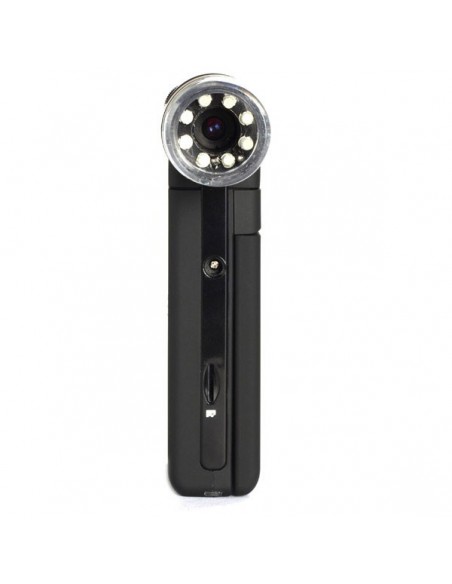

- 8 white LEDs with brightness adjustment
- 4x digital zoom

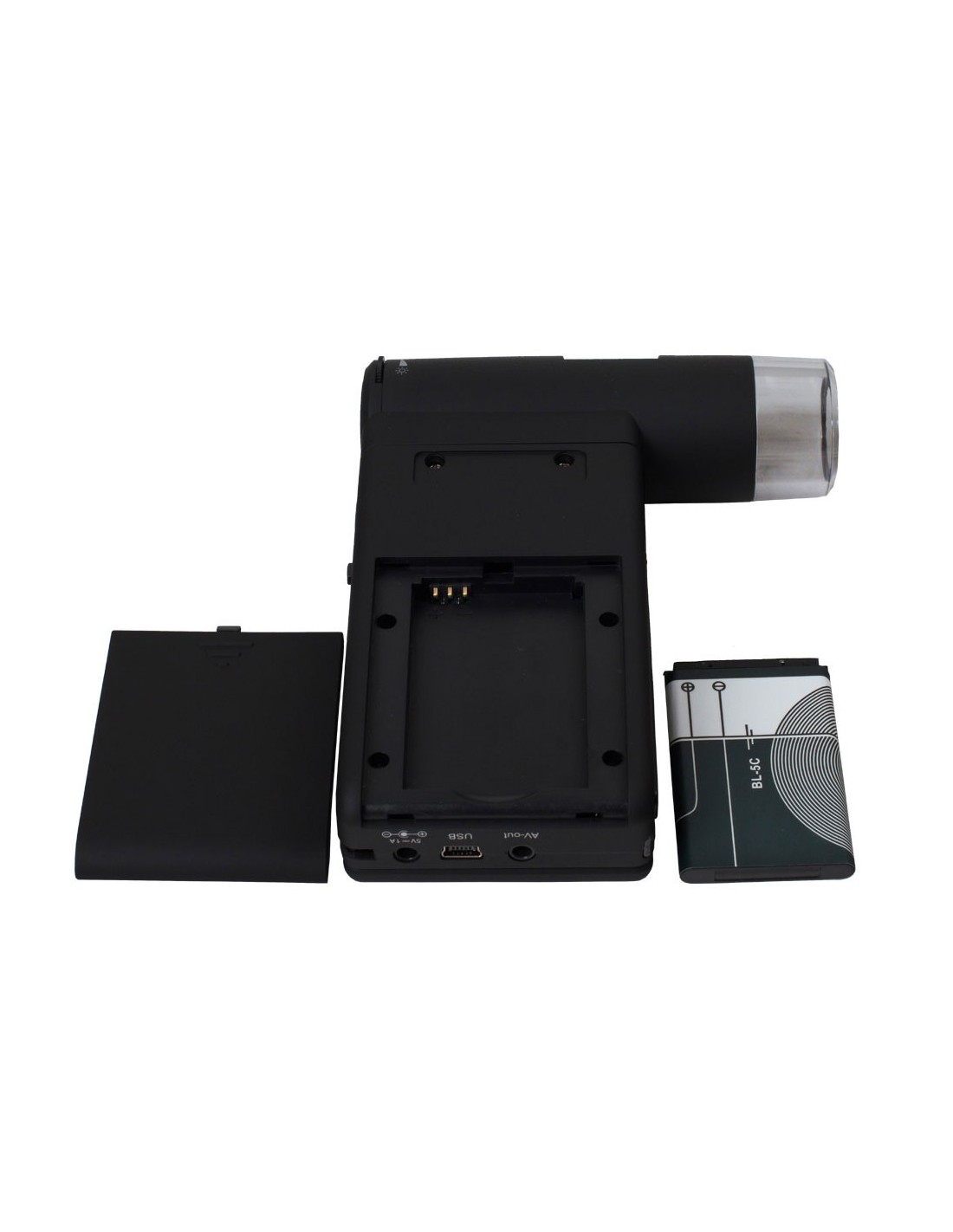

- Rechargeable lithium ion battery
- Equipped with special software to measure the linear dimensions, areas, angles and radii of the studied samples
- Compatible with Windows and Mac OS

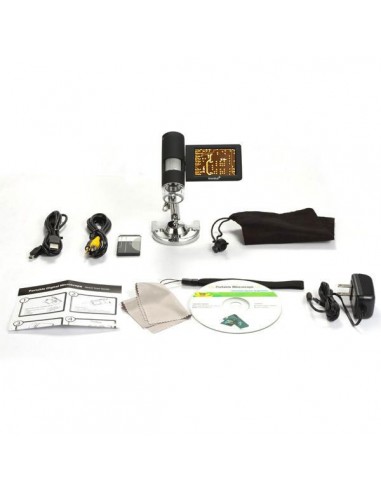

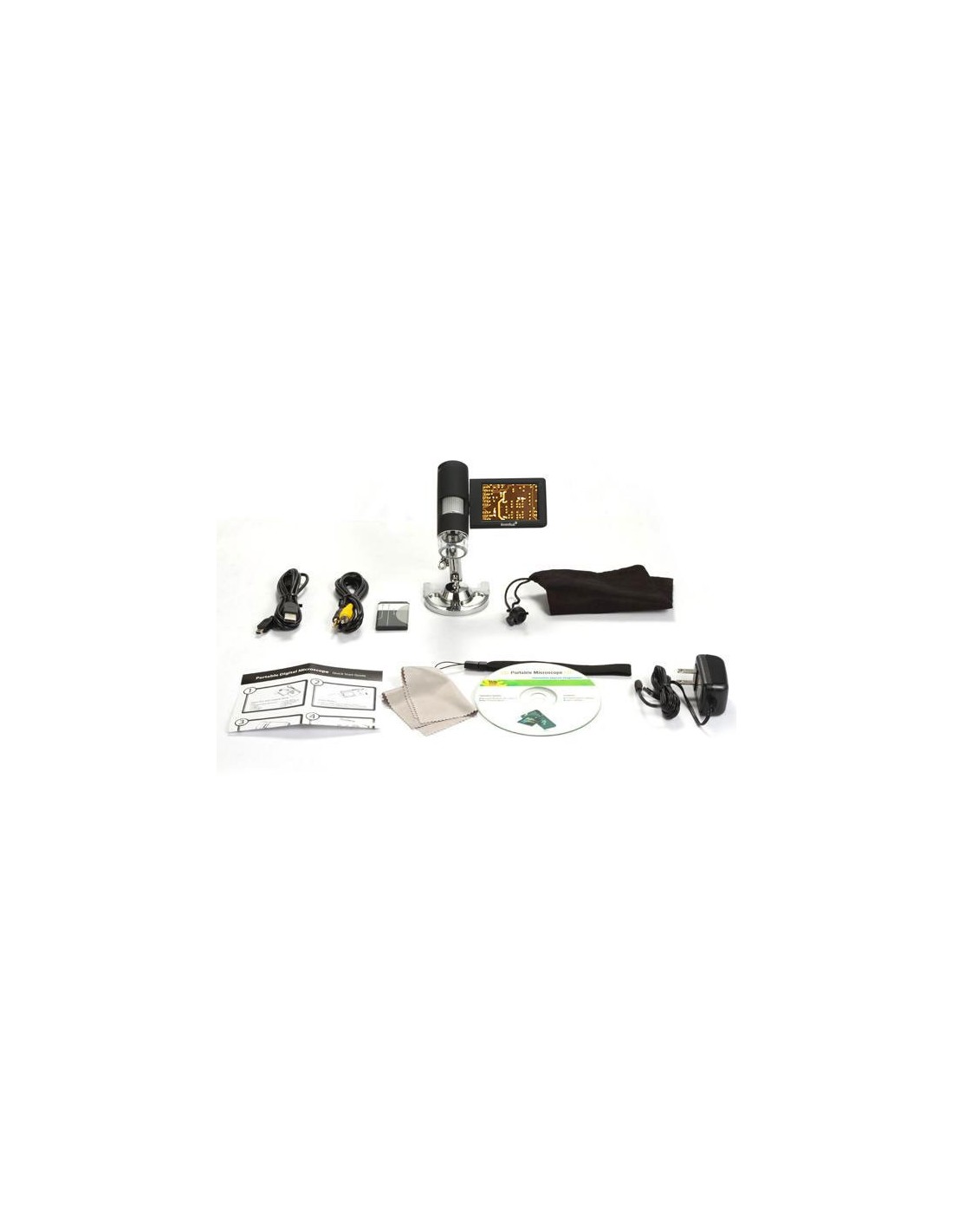

The kit includes:
- Levenhuk DTX 500 Mobi Microscope

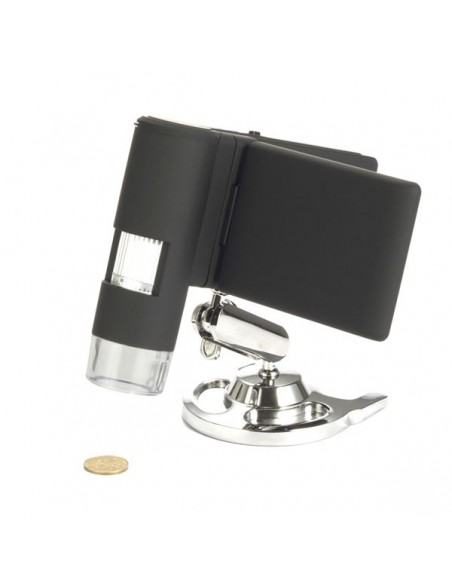

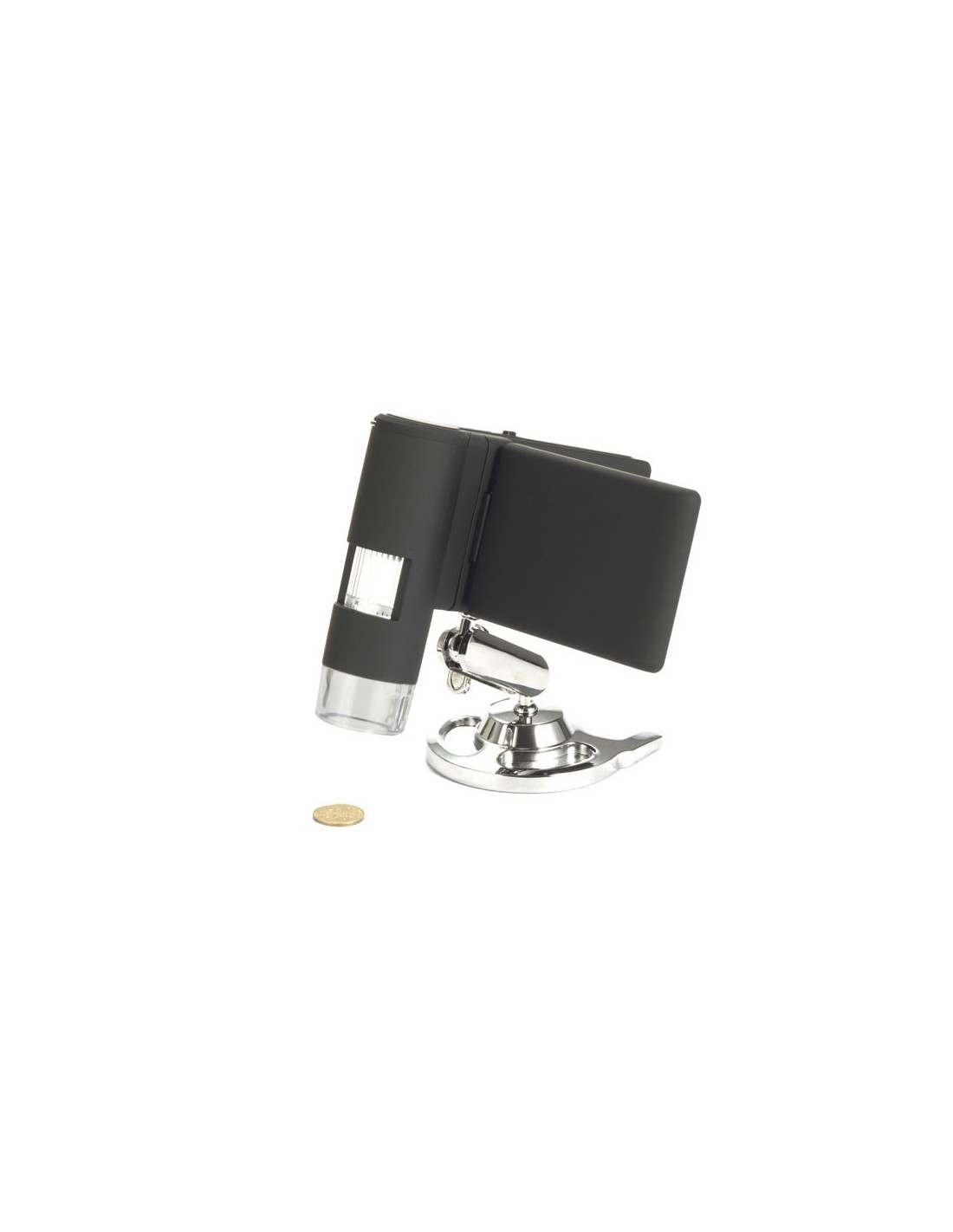

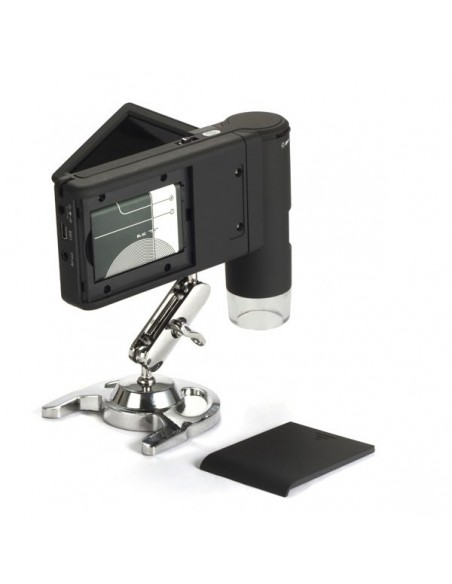

- Tripod
- Adapter*
- Software CD
- USB cable
- AV cable

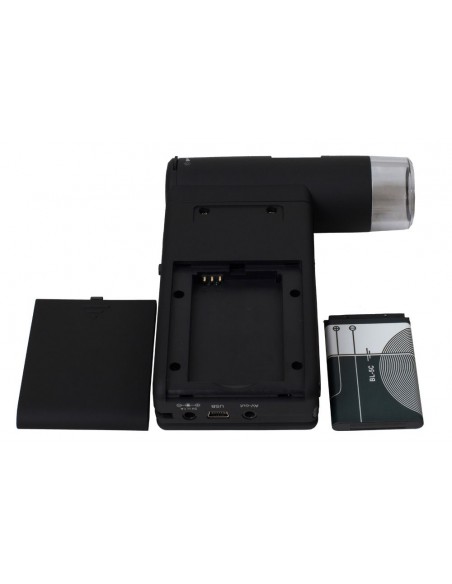

- Rechargeable lithium ion battery
- Case
- Shoulder strap
- Cleaning cloth
- User manual and lifetime warranty
Recommendations for using the software:
- For the correct operation of the program, start the installed application only when the microscope is connected to a PC and you are ready for observations.
- Once connected to the PC, the instrument does not support the magnification switching functionality.
The Levenhuk DTX 500 Mobi digital microscope is not compatible with digital cameras external.
* Caution: Refer to the specification table for the correct mains voltage and never attempt to connect a 110V device into a 220V socket and vice versa, without using a converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.
| Brand | Levenhuk Inc., USA |
| Lifetime Warranty | |
| EAN | 5905555004327 |
| Package size (LxWxH) | 33x7x15 cm |
| Shipping weight | 0.7 kg |
| Type | digital, portable |
| Tested | digital screen/PC monitor |
| Optics material | optical glass |
| Tube vertical | 3" rotatable color LCD screen |
| Magnification, x | 20 — 500 |
| Magnifying range | 200x to 800x |
| Focus | manual, 0–30 mm |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | adapter 110–240V, 50/60Hz , 5V,1A output, 3.7V/1050mAh lithium-ion battery |
| Power supply: batteries/built-in battery | yes |
| Extra elements | battery life: 4 hours; charging time: 5 hours |
| Possibility to connect additional equipment | supports microSD memory card up to 32 GB (not included) |
| User level | beginners, expert users |
| Assembly and installation difficulty level | easy |
| Application | for applied research |
| Upper lighting position | |
| Search method | bright field |
| Set with pencil case/case/bag | case |
| Maximum resolution | 12 MP, 8 MP, 5 MP, 3 MP, 1.3 MP, VGA |
| Megapixel | 5 (up to 12 with interpolation) |
| Video recording | yes |
| Image format | *.jpg |
| Video format | * .avi |
| Frame rate | 30 frames per second |
| Software, drivers | photo and video processing software with object measurement capabilities |
| Output | USB 2.0 |
| System Requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8 GHz Intel P4 and above, 512 MB RAM, 32 MB video card, USB 2.0, CD-ROM |
