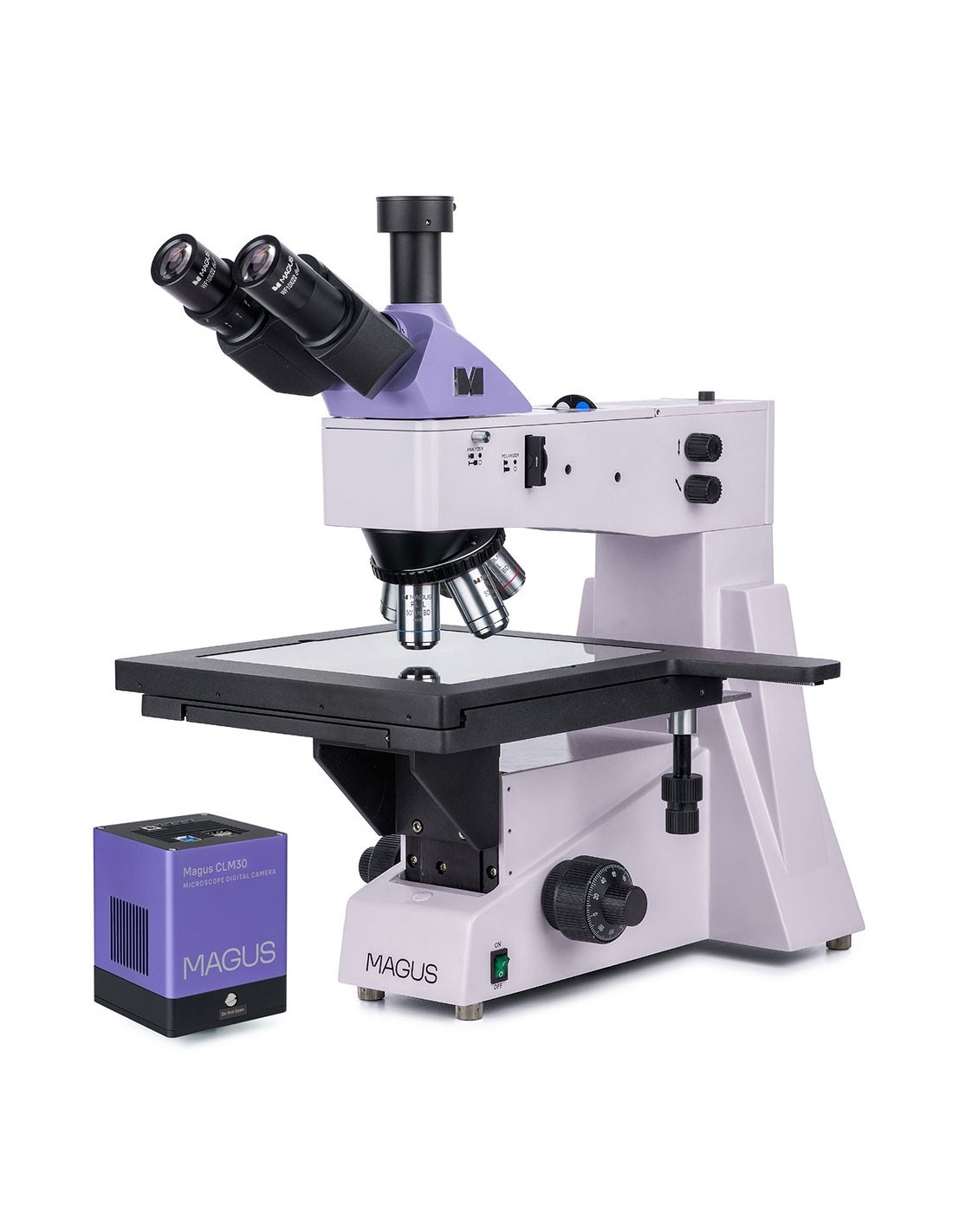

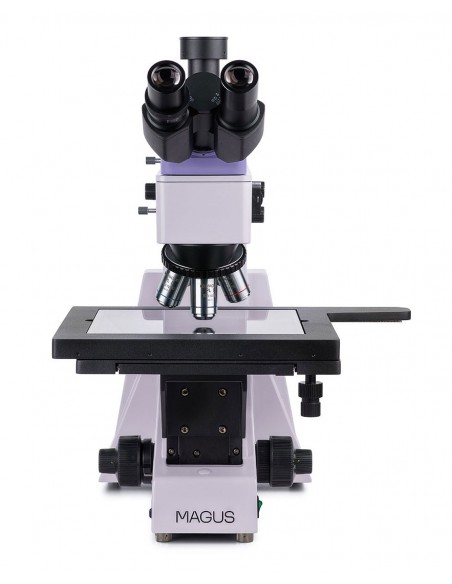

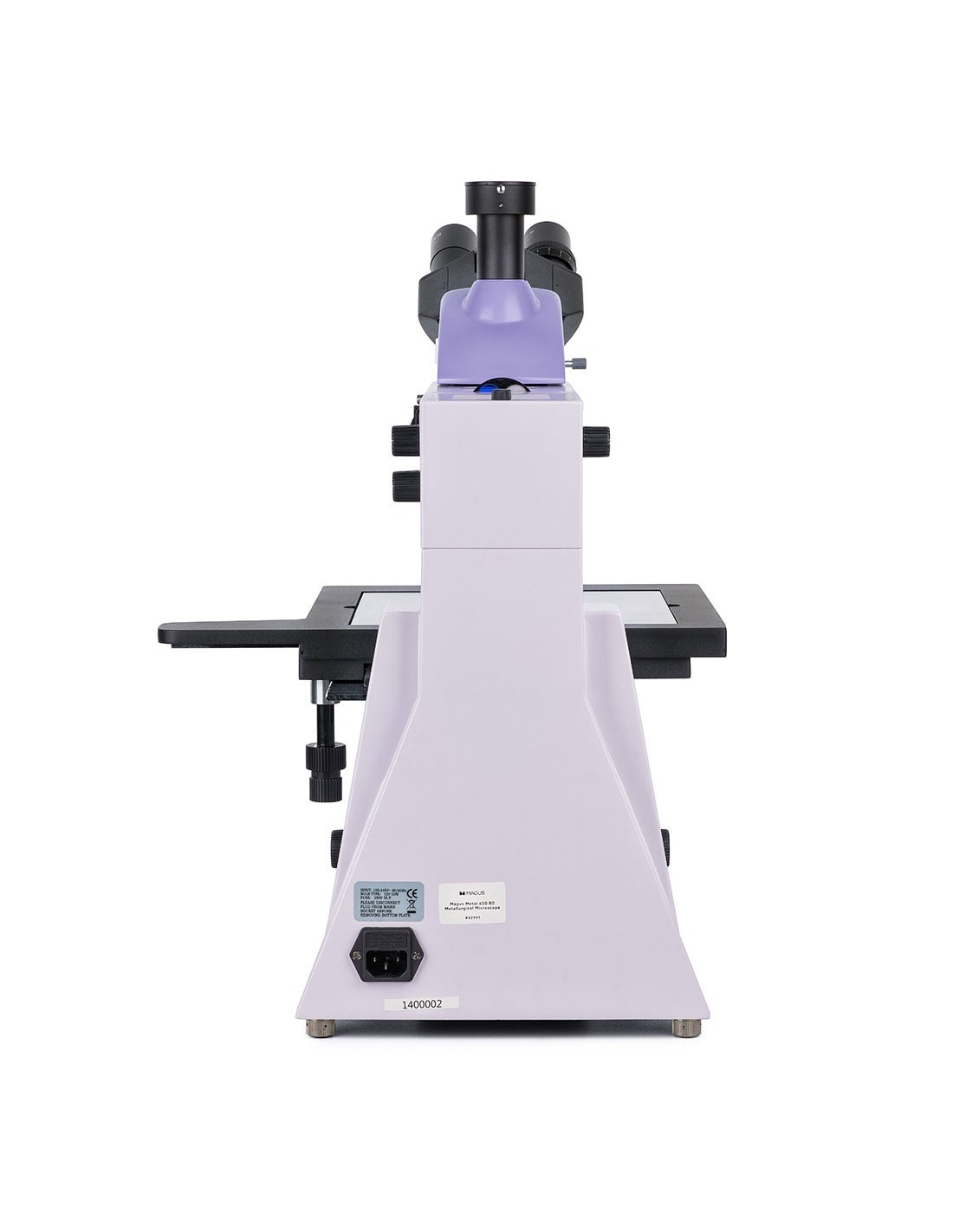

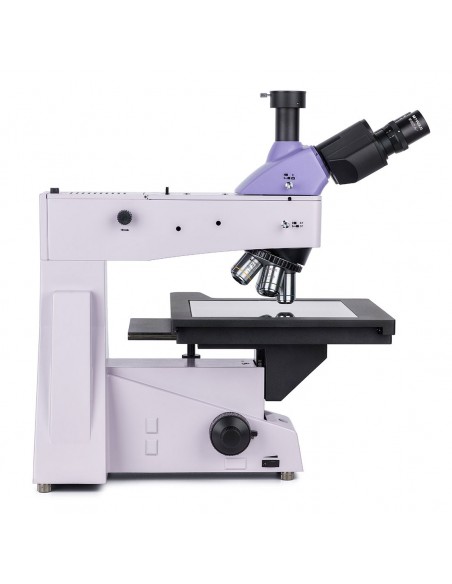

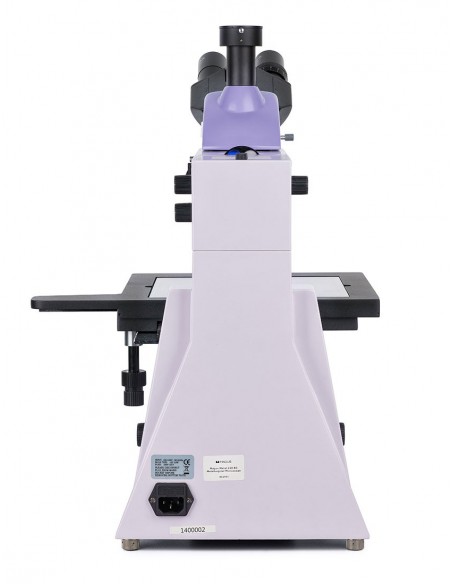

The MAGUS Metal D650 BD digital metallographic microscope is suitable for observing the surfaces of photomasks, integrated circuits, printed circuit boards and other long and wide objects. It features a large stage that can accommodate large specimens and fine focusing with a value of 0.7 µm for high precision observations at high magnification. Microscopy techniques in bright field, dark field and polarized light. The microscope is suitable for quality control laboratories, research centers and university departments.
Digital camera

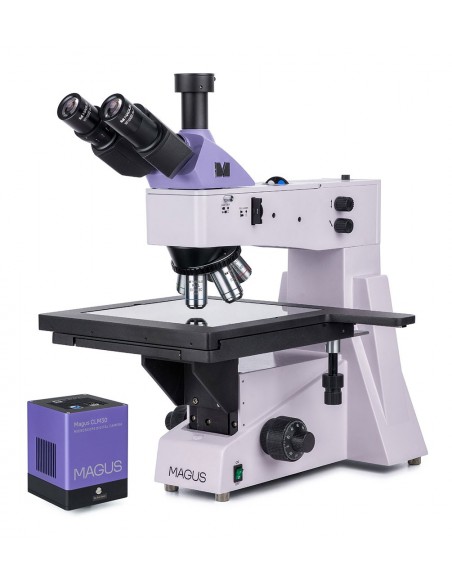

The MAGUS CLM30 digital camera is designed for the dark field and fluorescence microscopy technique. The camera is equipped with an 8.3 MP sensor and produces realistic images at a resolution of 3840x2160 px. It is recommended to use the camera with 4x, 10x, 20x and 40x lenses. When using low magnification lenses, the camera allows the user to see sharper details.
Videos are recorded at 45 fps or 70 fps depending on the resolution - videos flow smoothly with smooth and delicate transactions between frames. The movement of the sample is shown in real time, without delays. The camera facilitates the observation of moving objects and is suitable for academic demonstrations.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research or university education.
Optics

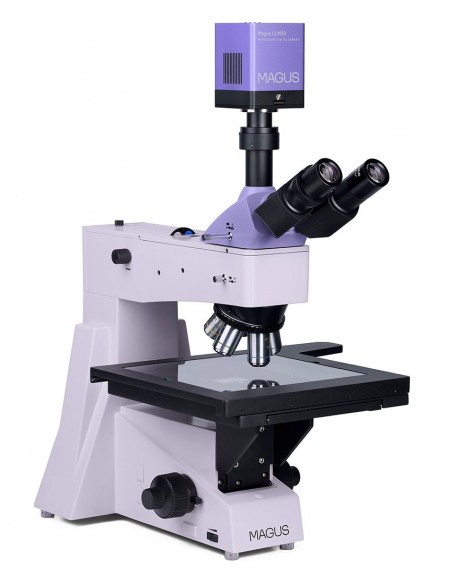

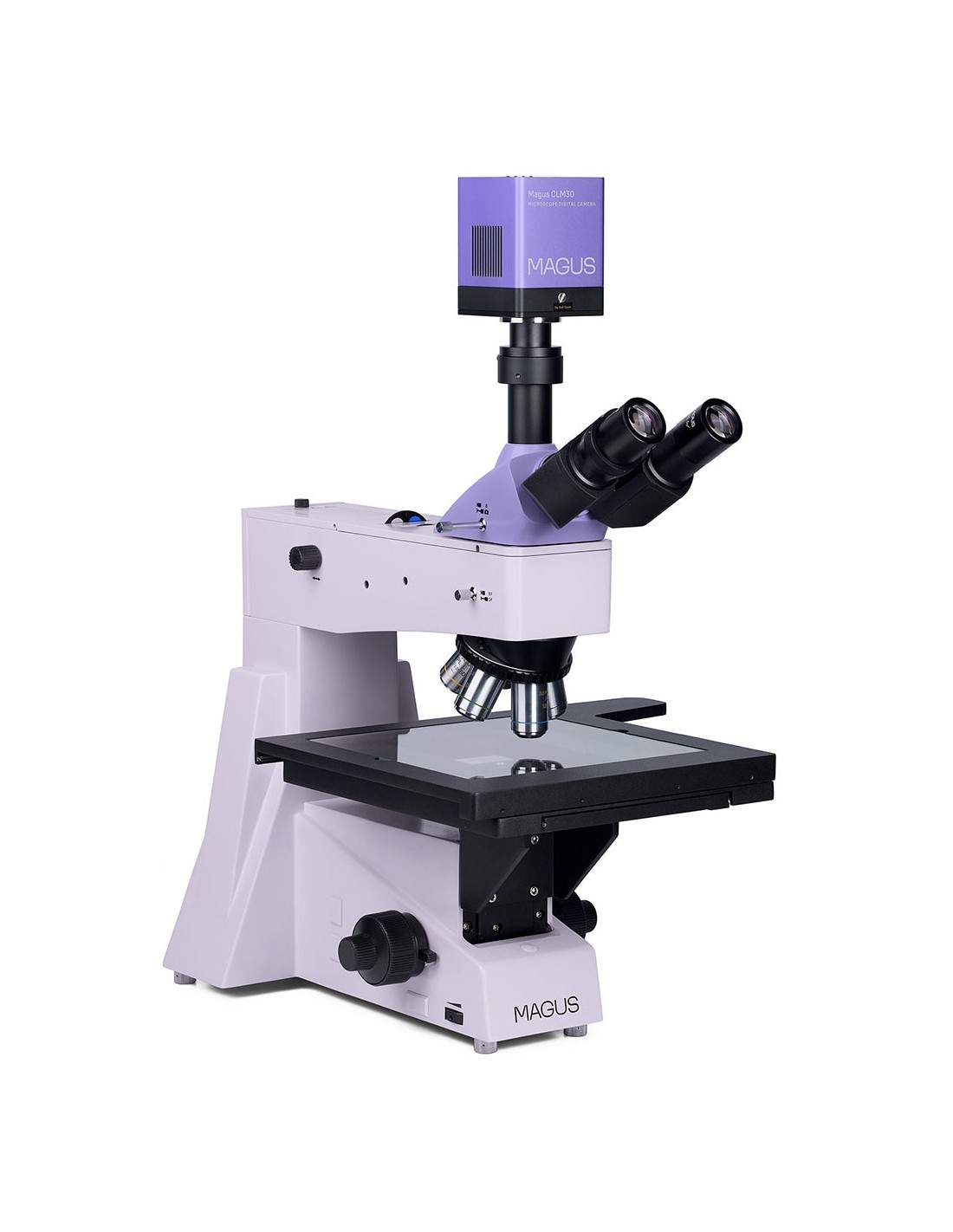

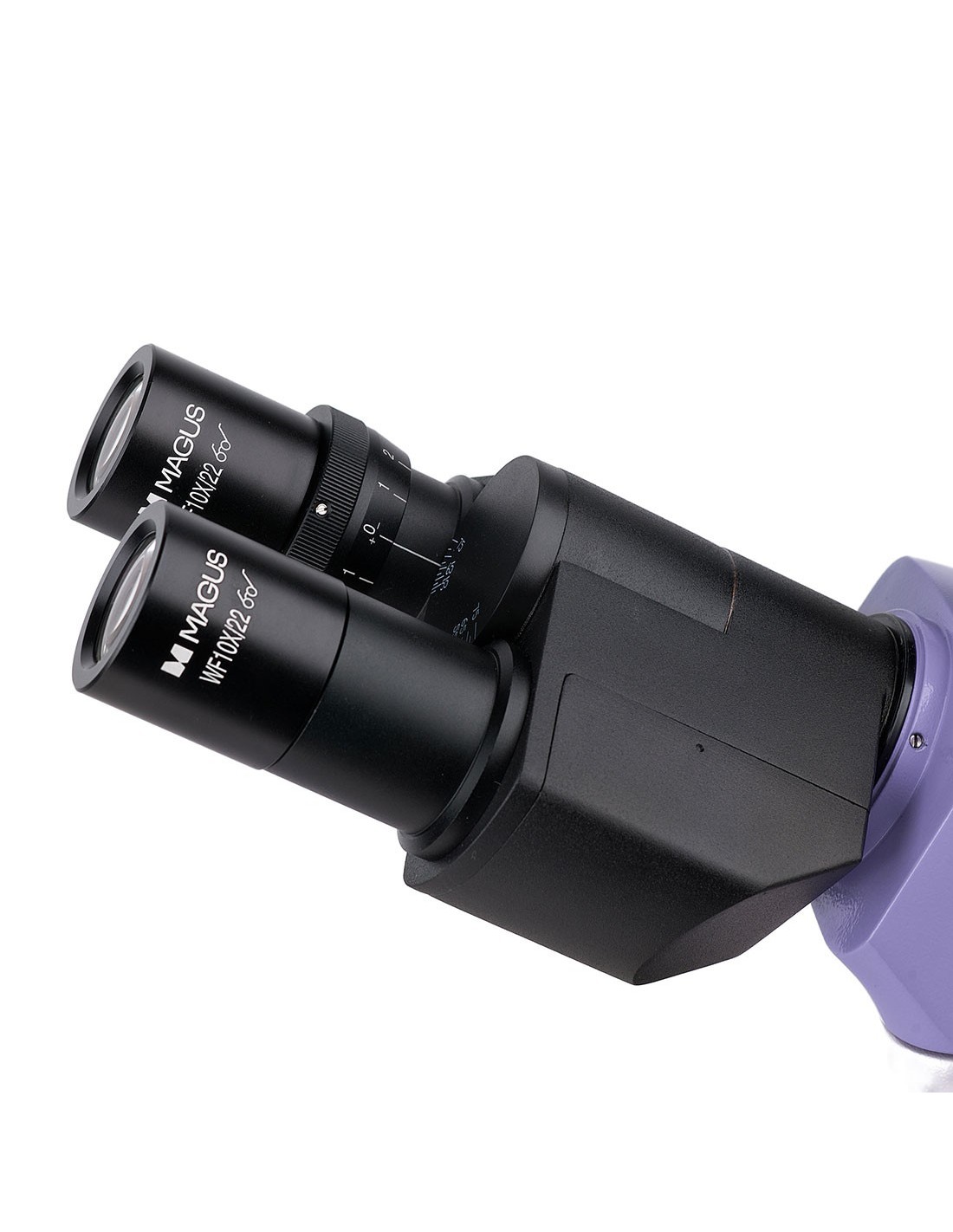

The trinocular head is equipped with a trinocular tube for viewing housing a digital camera. The light/camera selection dial directs the light beam to the camera for bright, well-detailed photos and videos that can be viewed on the external screen. The camera is not included in the basic configuration. The left eyepiece features an image adjustment ring.

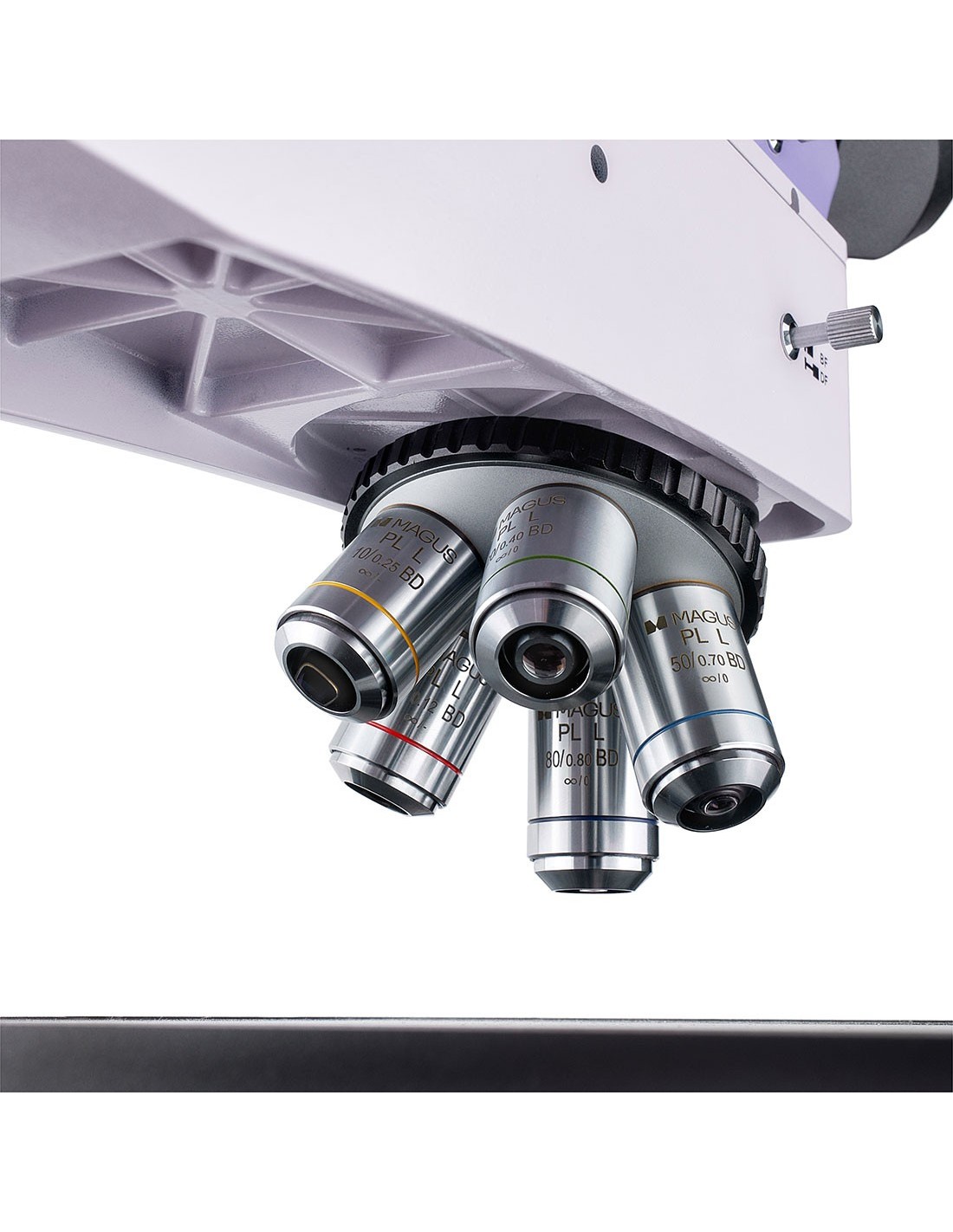

Planachromatic objectives with the BD symbol are specially designed for bright- and dark-field microscopy techniques. The lenses have a long working distance. The kit includes five objectives, one for each nosepiece socket. Each installed lens can be replaced with an optional one if necessary. Infinity corrected optics with magnification from 50x to 800x. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination
The reflected light illumination system is designed so that all observations are well detailed regardless of the objective used and microscopy techniques. The light source is a 50W halogen lamp which creates a bright, warm and uniform light. You can use the Köhler lighting method to adjust the lighting. Filters to create a colorful effect and a polarization device (integrated analyzer and removable polarizer) are included. The light source, aperture and field diaphragms can be centered. The illumination system also includes a dark field device.
Stage and focusing mechanism
The large 280x270 mm stage is a special feature of the microscope. It has a range of motion of 204mm on the X and Y axis. Focus is adjusted by rotating the coarse and fine focus knobs. They work smoothly and thanks to the fine focus value, the operation at a high magnification level is precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing handles are positioned at the base of the microscope so you can assume a relaxed and comfortable position. This way the operator can keep his hands resting on the table instead of holding them in the air.
Accessories
To get the most out of the MAGUS Metal 650 microscope BD you can purchase other additional accessories, such as eyepieces, long working distance objectives for bright field and dark field, calibration slides and digital cameras.
Key features of the microscope:
- Precise focusing: fine focus value of 0.7 µm, coarse focus with a locking knob and tension adjustment
- Stage large size for easily observing long and wide objects, wide range of stage movement on two axes
- Planachromatic optics, trinocular head with 100:0 and 0:100 beam splitter, trinocular tube for installation of the camera
- Light source, centrable aperture and field diaphragms, Köhler illumination adjustment, polarization device, color filter set, dark field microscopy techniques
- Illuminator – 50W halogen lamp with 220V power supply and brightness adjustment
- Optional accessories
Key camera features:
- For darkfield and fluorescence microscopy with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: When performing observations with low magnification objectives, the camera allows the user to see sharper details
- 45 fps and 70 fps, respectively at 3840x2160 pixels and 1920x1080 pixels of resolution, for observing samples with moving elements, for recording videos and for moving the specimen without jerking or lag
- The Peltier cell lowers the temperature of the sensor during prolonged operation and eliminates thermal noise, thus allowing you to use a long shutter speed when taking photographs.
- The color back-illuminated SONY Exmor CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- USB 3.0 interface for fast and smooth data transfer
- Software for recording and editing photos and videos, recording functions external display, linear and angular measurements

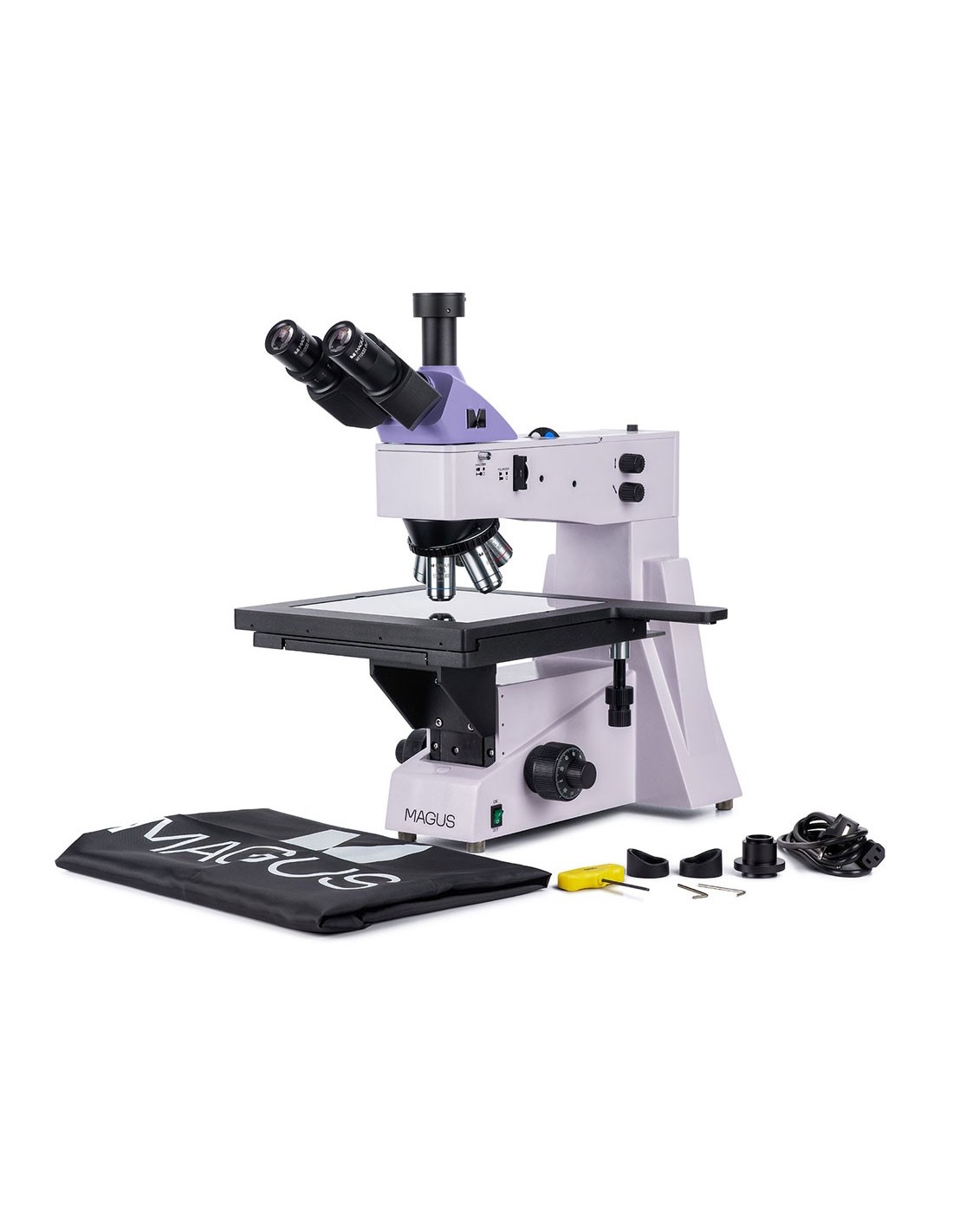

The package contains:
- The MAGUS CLM30 digital camera (digital camera, USB cable , 12 V, 3 A adapter, carrying case, installation CD with drivers and software, user manual and warranty card)
- Base with power input, reflected light illuminator, focusing mechanism, stage and nosepiece revolver
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
- Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5 mm
- Planachromatic infinity objective: PL L80x/0.80 BD WD 0.8 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- 1x C-mount adapter
- Allen key
- AC power cable
- Dust cover
- User manual and warranty card
Available upon request:
- 10x eyepiece/ 22 mm with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x /12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective: PL L40x/0.60 BD WD 3.0 mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018423 |
| Package size (LxWxH) | 58x49x60 cm |
| Shipping weight | 23.8 kg |
| Delimiter | MaGUS Metal 650 BD metallographic microscope |
| Type | light/optical, metallographic |
| Trinocular head | Trinocular |
| Vertical tube | Siedentopf |
| Head tilt angle | 30° |
| Magnification, x | 50–800 basic (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, extraction pupil: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L50x/0.70 BD, PL L80x/0.80 BD; parfocal distance 45 mm (*option: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 (5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 280x270 |
| Range of movement of the stage, mm | 204/204 |
| Stage features | two-axis mechanical |
| Eyepiece diopter adjustment, diopters | ±5 (on the barrel left) |
| Iris | Integrated field and aperture |
| Focus | coaxial, coarse focus (30 mm, 13.1 mm/rev, with locking knob and tension adjustment) and fine focus (0.0007 mm) |
| halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/50 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C< /td> | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Lighting position | upper |
| Research method | bright field, dark field, polarized light |
| Set with case/case/bag | dust cover |
| === Boundary === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature at 42°C below room temperature | yes |
| Light sensitivity | 5970 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 45 @3840x2160, 70@1920x1080 |
| ADC digital capacity (bit) | 8/12 (selectable) |
| Installation location | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, control of exposure |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS up to 2.8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type |
| Mount type |
| td> | C-mount |
| Body | CNC aluminum alloy |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
