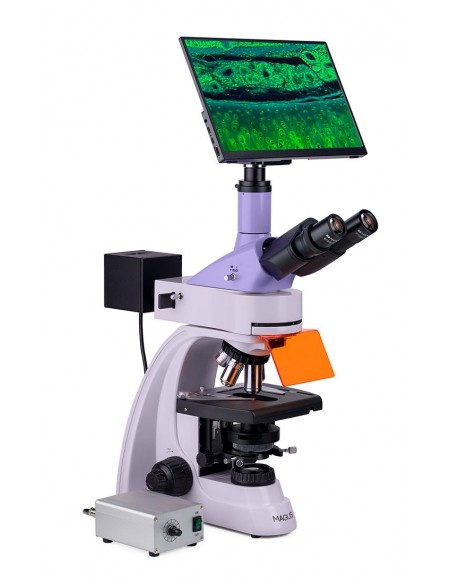

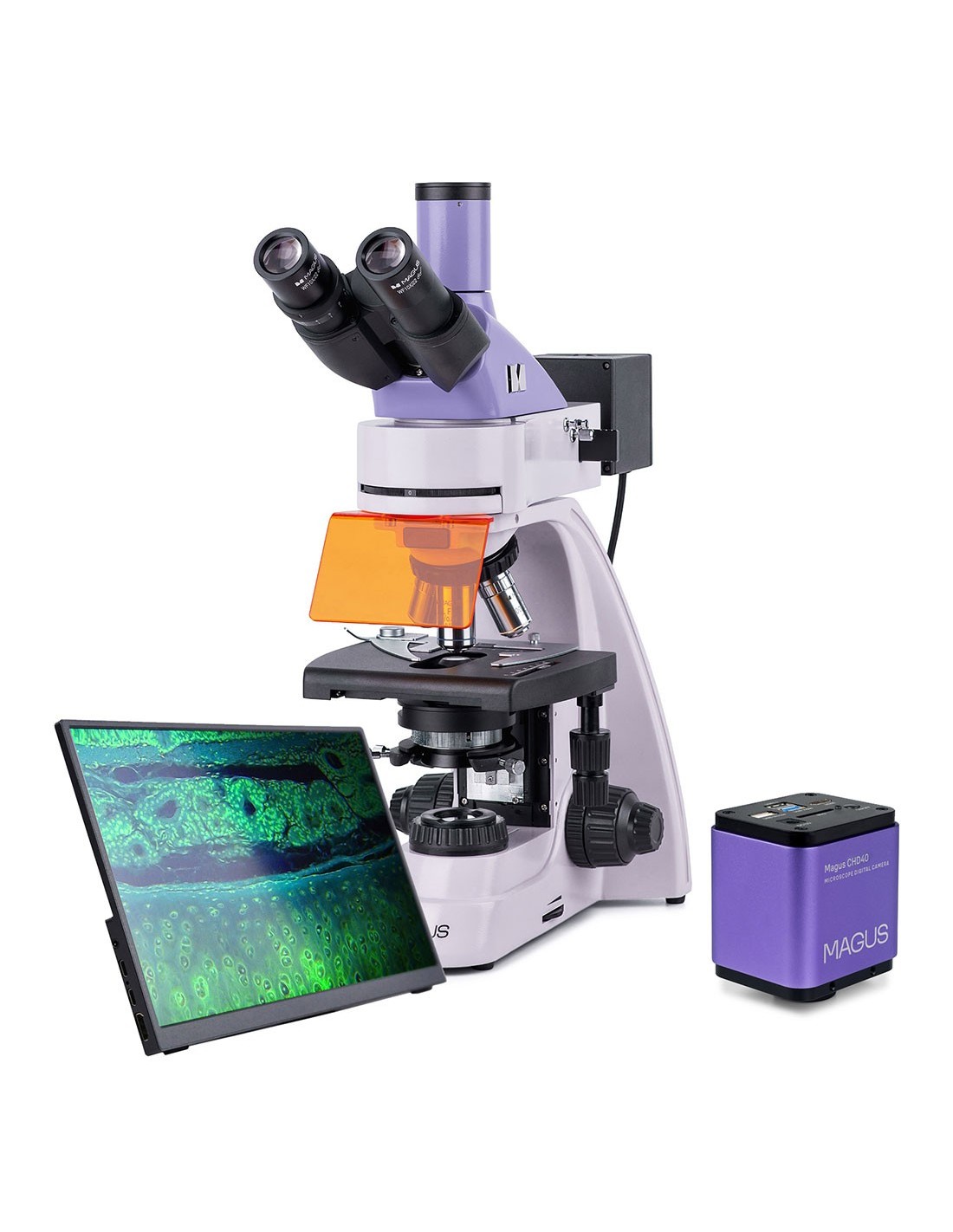

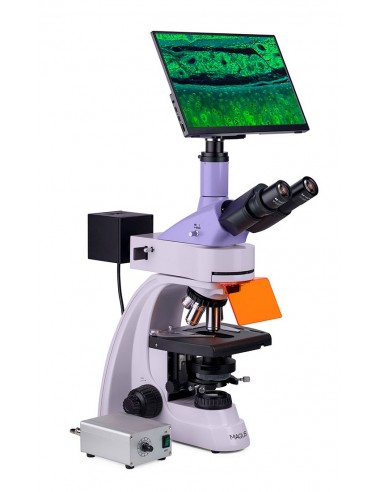

The MAGUS Lum 400L fluorescence microscope can be used for two microscopy techniques: fluorescence in reflected light and bright field in transmitted light. When equipped with additional accessories, the microscope can be used to conduct research in polarized light and for phase contrast and dark field techniques. You can use the microscope for laboratory research and diagnostics in the fields of medicine, pharmacology, forensic science, biotechnology, veterinary medicine, etc.

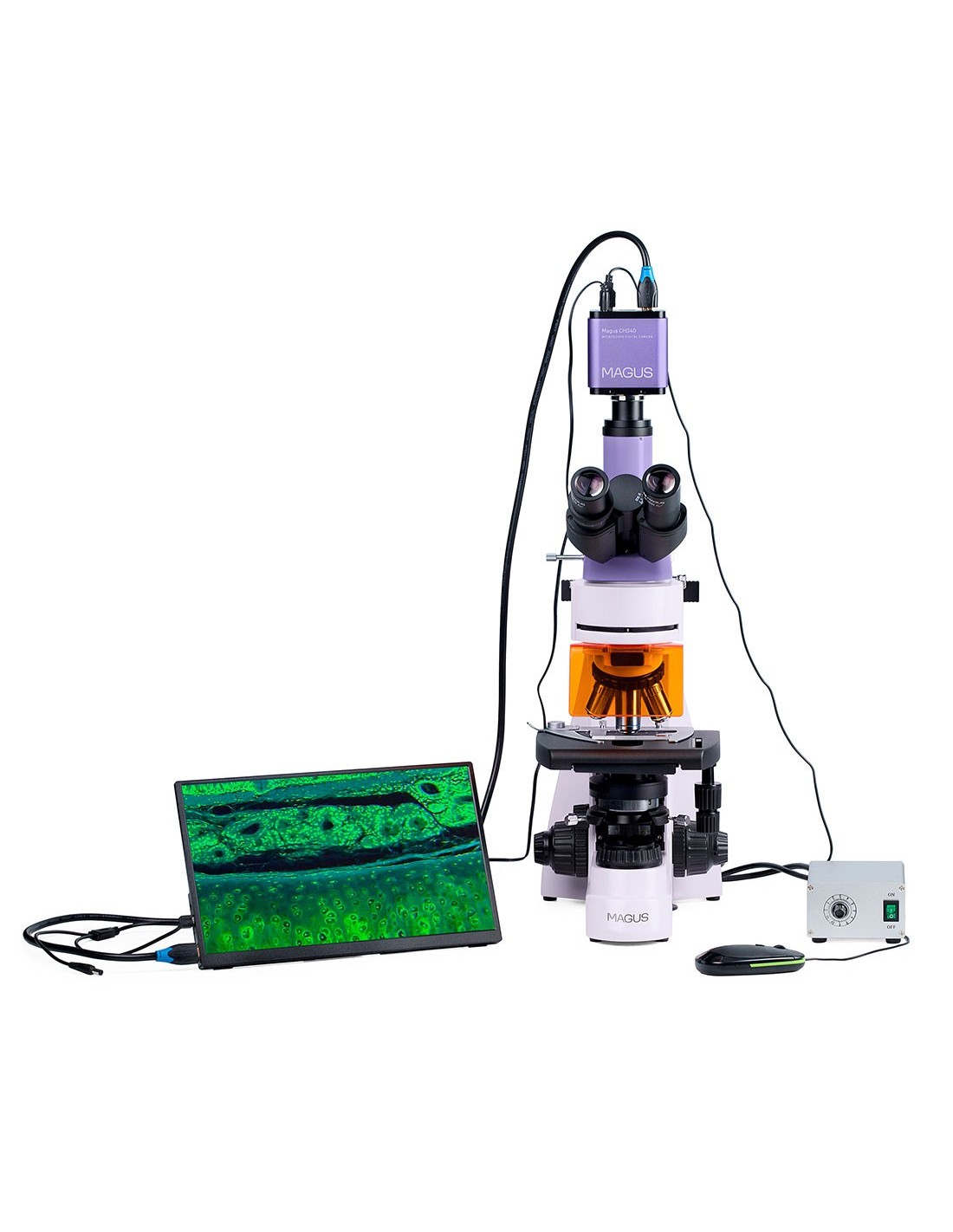

Digital camera
MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on the monitor resolution.
The camera is equipped with an 8 MP sensor and produces realistic images at 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.

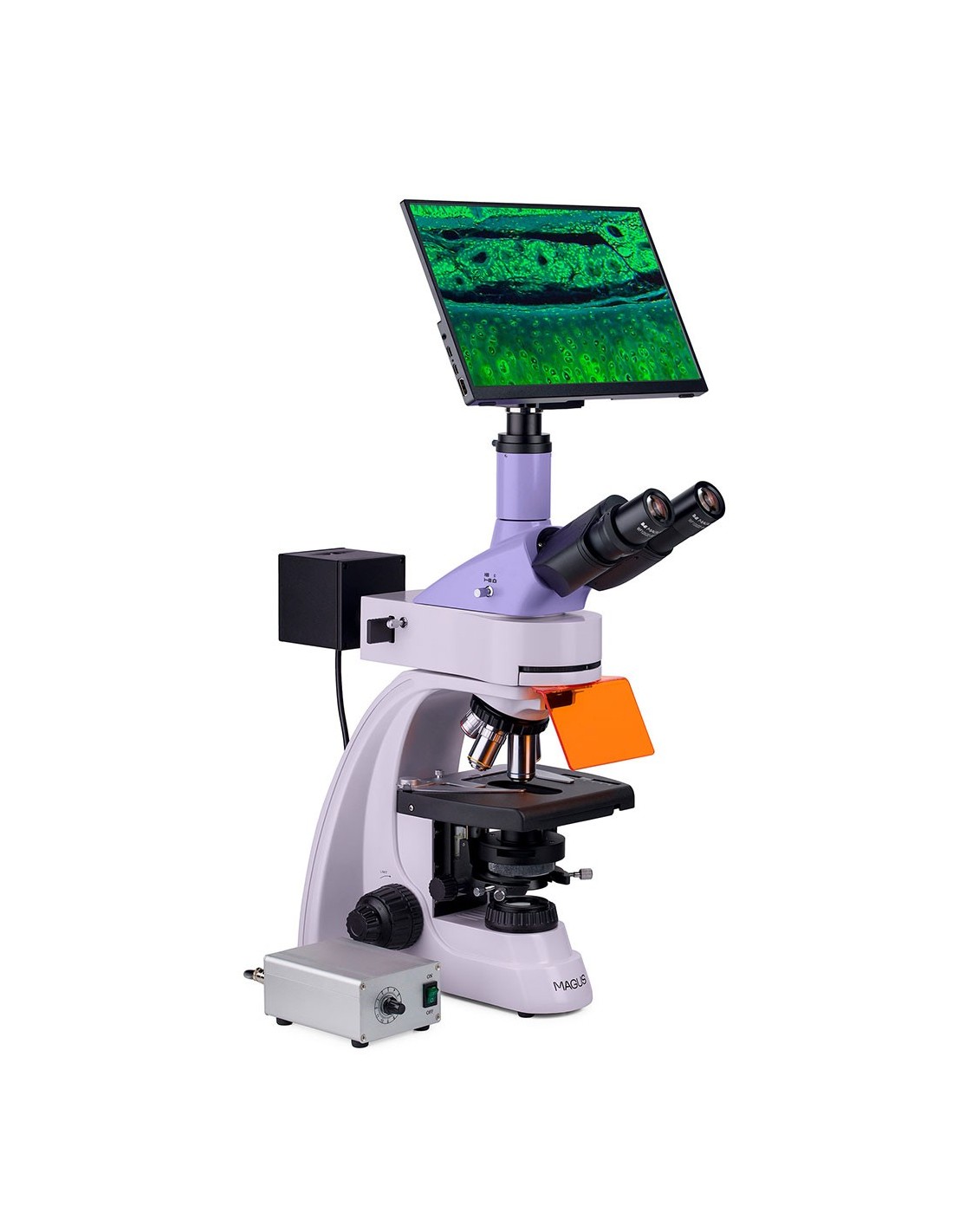

Monitor
The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf using a folding stand or install it directly on the camera or microscope base.
Optics

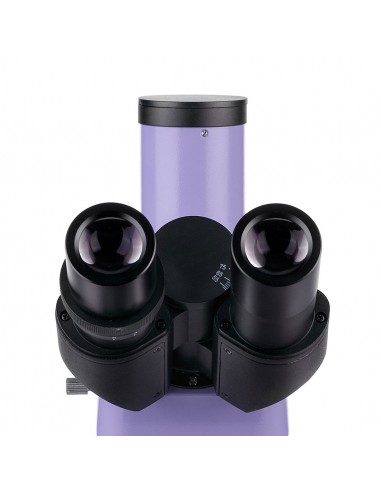

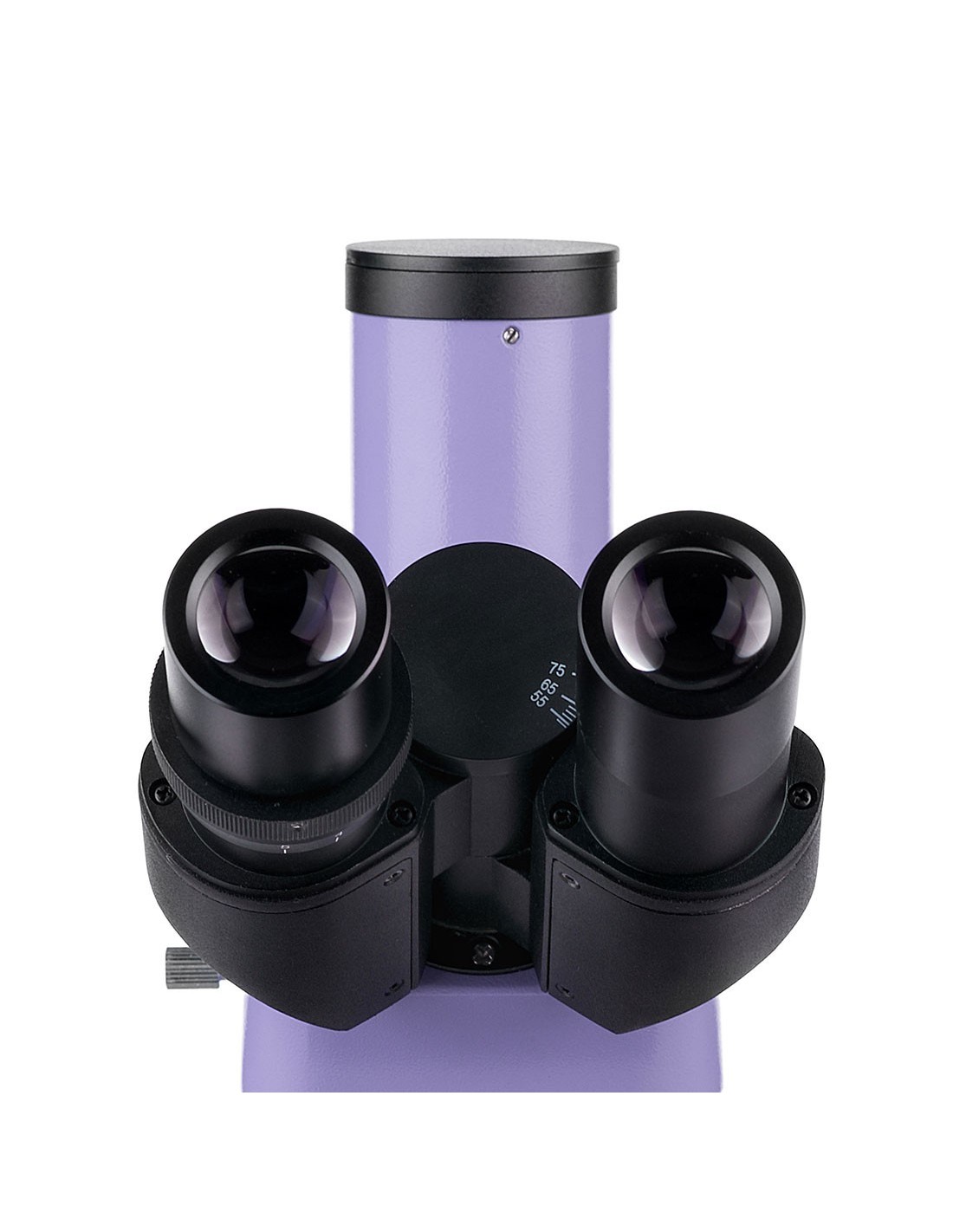

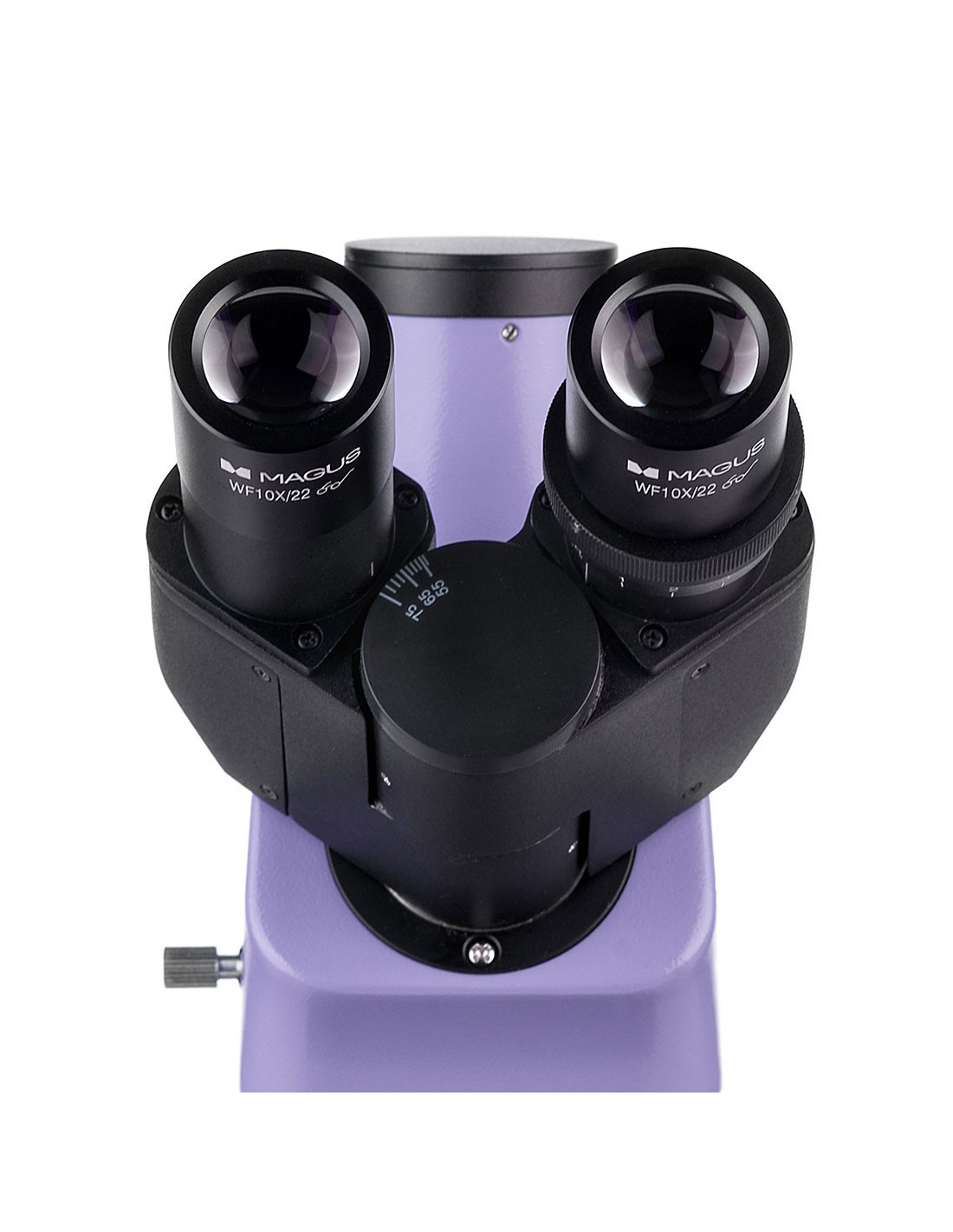

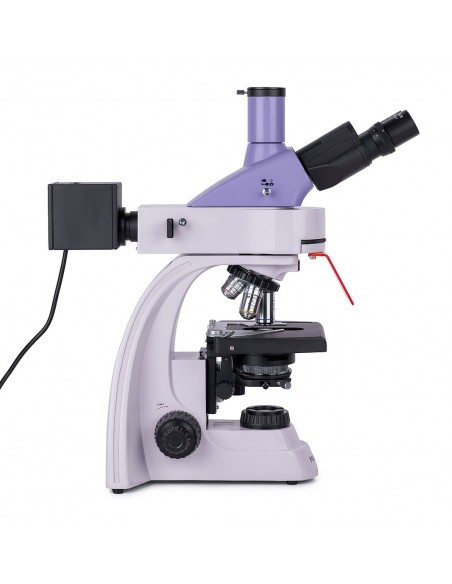

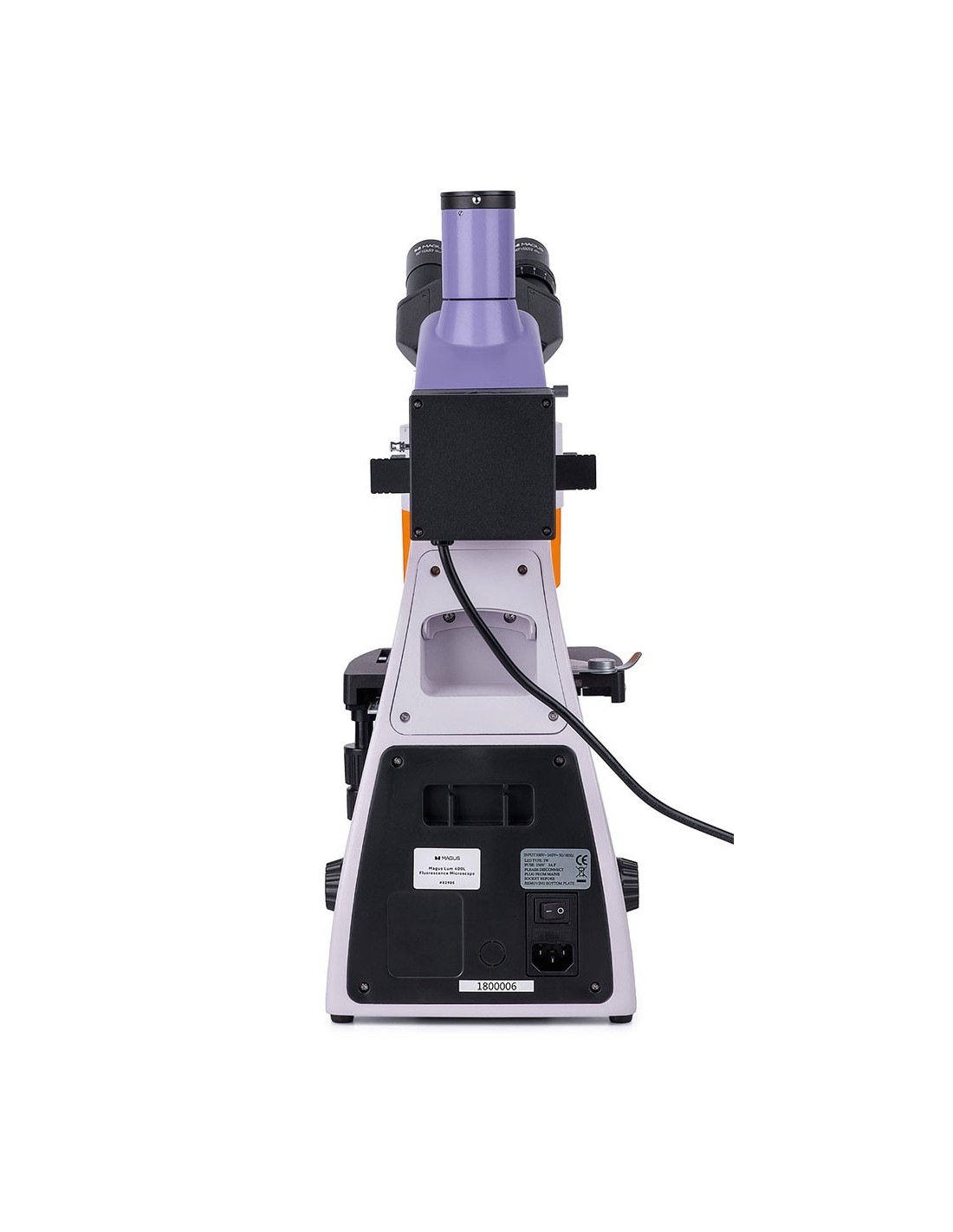

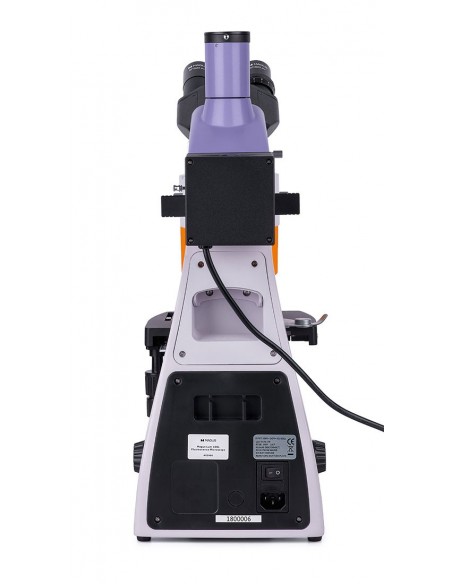

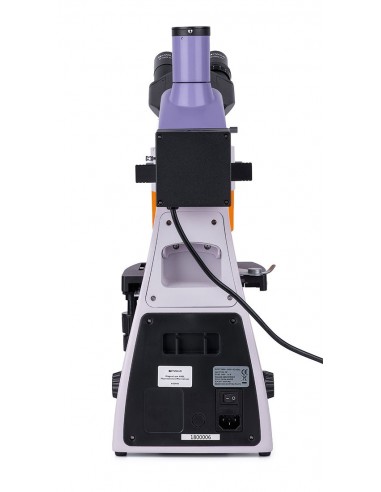

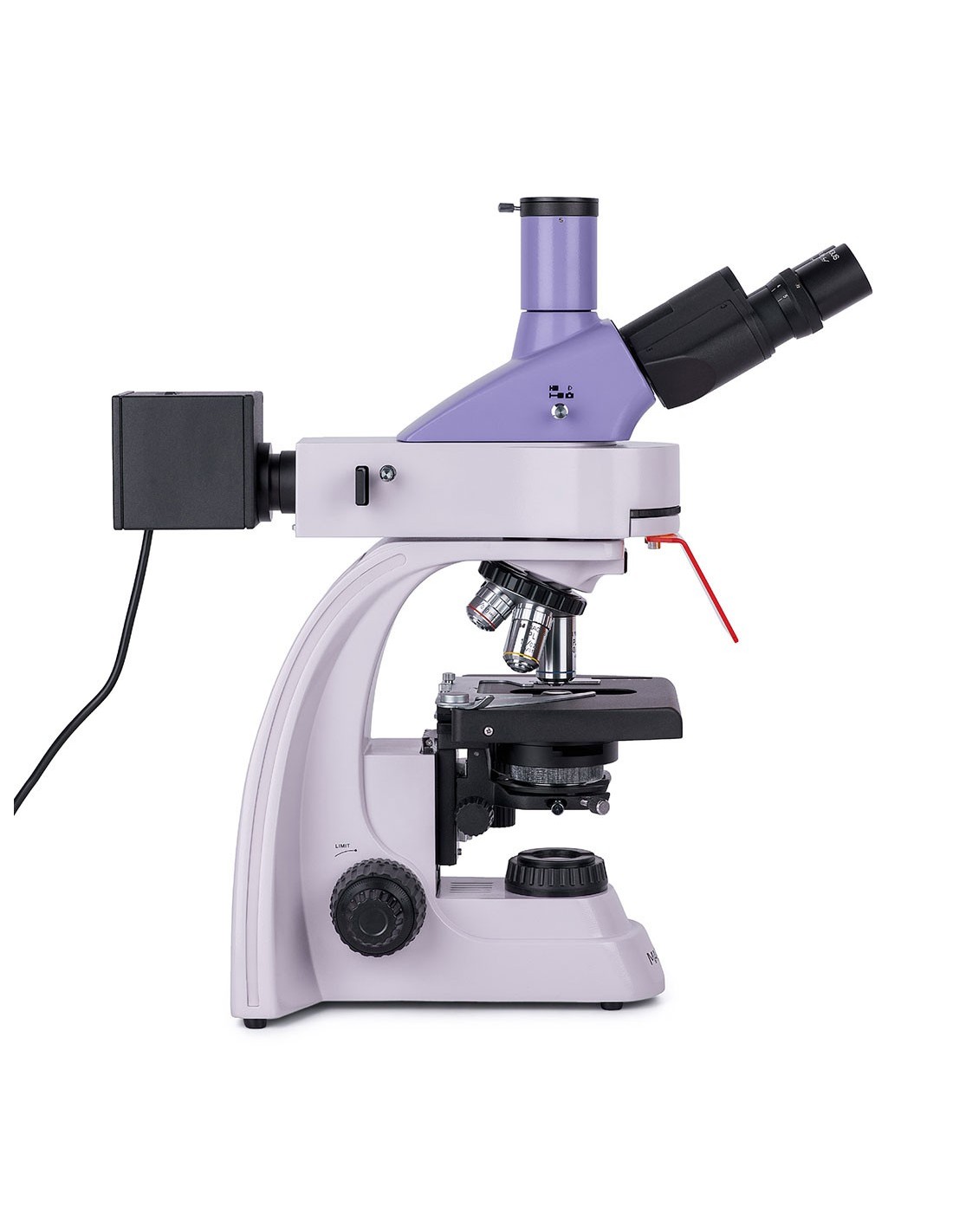

The trinocular head is composed of two optical tubes for conducting observations and a trinocular tube for housing a digital camera (not included). To face long periods of observation in maximum comfort, it is possible to adjust the eyepiece tubes by rotating them 360° to adapt to the height of the observer. They are inclined by 30°.
The nosepiece with five objectives is oriented inwards, so that the user can see which objective is inserted in the optical path. It is equipped with infinity planachromatic objectives: three for the bright field technique and one for the fluorescence (fluorescent) technique. Once all objectives are installed on the nosepiece, one slot remains available. It is used to adjust the position of the illuminator for reflected light observations. You can also install an optional lens to achieve higher magnification.
Illumination
Reflected light: five 5W LEDs. Each LED falls into four bands specifications: blue (B), green (G), violet (V) and ultraviolet (UV). To choose the LED you need to rotate the ring. The advantage of LED lighting is that it quickly reaches maximum brightness and turns off quickly, making it easy to switch from brightfield to fluorescence and vice versa. The LEDs do not overheat, do not require a heat sink and have a lifespan of 50,000 hours before needing replacement. LED fluorescence is a safe and easy to maintain microscopy technique, therefore it is recommended for use in schools and universities.
The transmitted light is produced by a 3 W LED. The life cycle of LEDs is 50,000 hours. The lighting system also includes a capacitor. The condenser has an available slot for a dark field slider or a phase contrast slider. The slider makes it quick and easy to switch from one microscopy technique to another without having to change the condenser.
In transmitted and reflected light, Köhler illumination can be set. The study object is sharp and has no image artifacts. The edges do not darken and each objective reaches maximum resolution.
Stage and focusing mechanism
The microscope stage is equipped with a holder removable sample in order to perform manual scans of the same. The table does not have a positioning rack, therefore it requires less working space. You can install a black plate on the stage to eliminate any unwanted light from the transmitted light light source when observing in reflected light.
The coaxial fine (micrometer screw) and coarse (micrometer screw) focus knobs macrometric) are positioned on both sides at the base of the microscope. The coarse focus is equipped with a fixing knob and tension adjustment.
Accessories
The MAGUS Lum 400L microscope features a wide range of compatible optional accessories that can be used to expand its potential. They include eyepieces, objectives, dark field, phase contrast and polarized light devices, digital cameras and calibration slides.
Key Microscope Features:
- Study of reflected light samples using the fluorescence microscopy technique and transmitted light using the bright field microscopy technique.
- Planachromatic objectives at infinity: three bright field objectives and one fluorescent objective
- Trinocular head with 360° rotatable body, trinocular tube for mounting a digital camera
- Four reflected light LEDs with four different wavelengths: blue (B), green (G), violet (V) and ultraviolet (UV
- 3 W LED with transmitted light, Köhler illumination with reflected and transmitted light
- Stage without positioning rack, sample holder removable
- Wide range of accessories, including devices for phase contrast, polarized light and dark field
Key camera features:
- The camera works independently without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
- The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

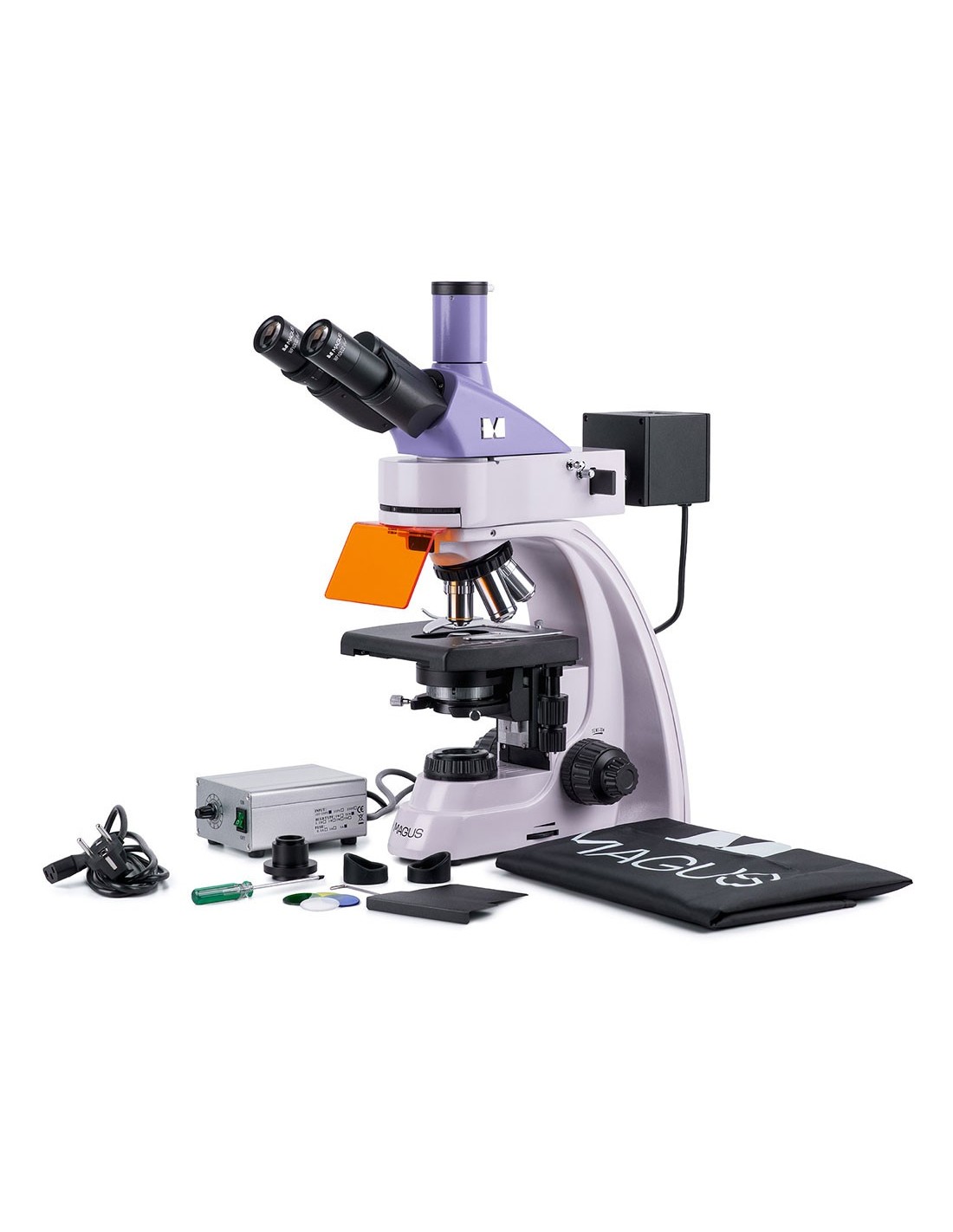

The package contains:
- MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
- MAGUS MCD40 LCD monitor
- Support with integrated power supply, transmitted light source, focusing mechanism, stage, condenser mount and nosepiece
- Abbe condenser
- Illuminator for reflected light observations
- LED lamp housing
- Trinocular head
- Infinity plan achromatic objective: PL 4x/ 0.10 WD 19.8 mm
- Infinity plan achromatic objective: PL 10x/0.25 WD 5.0 mm
- Infinity plan achromatic objective, fluorescent: PL FL 40x /0.85 (with spring mechanism) WD 0.42 mm
- Planachromatic infinity objective: PL 100x/1.25 (with spring mechanism, oil) WD 0.36 mm li>
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- UV screen
- Slider filter
- Black protective plate for installation under the table
- C-mount adapter
- Color filter (4 pcs.)
- Oil bottle for immersion
- Reflected light illuminator power supply
- Power cable
- Reflected light illuminator power cable
- Power cable of the reflected light illuminator power supply
- Dust cover
- User manual and warranty certificate
Available on request:< /p>
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x/15 mm eyepiece (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective, fluorescent: PL FL 10x/0.35 WD 2.37 mm
- Infinity plan achromatic objective: PL 20х/0.40 WD 8.8 mm
- Infinity plan achromatic objective : PL 60x/0.80 ∞/0.17 WD 0.46 mm
- Phase contrast device
- Dark field condenser with NA 0.9 < li>Oil-filled dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarizer tool
- Calibration slide li>
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018195 |
| Package size (WxDxH) | 45x30x96 cm |
| Shipping weight | 17.25 kg |
| Delimiter | Microscope fluorescent lamp MAGUS Lum 400L |
| Type | biological, light/optical, digital |
| Tested< /td> | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Tilting angle of the head | 30° |
| Magnification, x | 40–1000 in the basic configuration (*optional: 40–1250/1500/2000/2500) |
| Eyepiece tube diameter, mm | 30 |
| Objectives | infinity planachromatic and fluorescent objectives: PL 4x/0.10, PL 10x/0.25, PL FL 40x/0.85, PL 100x/1.25 (oil); parfocal distance 45 mm (*optional: PL FL 10x/0.35, PL 20х/0.40, PL 60x/0.80 ∞/0.17) |
| Revolver nosepiece | for 5 objectives |
| Working distance, mm | 19.8 (4x); 5.0 (10x); 0.42 (FL 40x); 0.36 (100x); 2.37 (FL 10х); ); 8.8 (20х); 0.46 (60х) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage characteristics | two-axis mechanical translator, without positioning rack |
| Condenser | condenser from Abbe, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm< /td> | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39 .8 mm/turn, with fixing knob and micrometer screw tension adjustment knob) and fine focus (0.002 mm micrometer screw) |
| Illumination | LED, fluorescent |
| Brightness adjustment | yes |
| Power supply | AC mains, 85–265 V, 50/60 Hz |
| Type of light source | reflected light: 4 LEDs of different lengths wave, 5 W; transmitted light: 3 W LED |
| Optical filters | yes |
| Possibility to connect equipment additional | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer), dark field slider |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Fluorescent module | filters: ultraviolet (UV), violet (V), blue (B), green (G) |
| Fluorescence filter: filter type/excitation wavelength/dichroic mirror/emission wavelength | ultraviolet (UV), 320–380 nm/ 420nm/435nm; violet (V), 380–415 nm/460 nm/475 nm; blue (B) 410–490 nm/505 nm/515 nm; green (G) 475–550 nm/580 nm/595 nm |
| Application | laboratory/medical |
| Illumination position | double |
| Research method | bright field, fluorescence |
| === Delimiter === | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 8 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors | Wi-Fi, HDMI 1.4, USB 3.0 |
| Memory card | SD up to 32 GB |
| Possibility of connecting additional equipment | mouse with USB, stick (USB), Wi-Fi adapter (USB) |
| Light sensitivity |
| Signal to noise ratio | 0.13 mV with 1/30 s |
| Exposure time | 0.14 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@3840x2160 (USB 3.0)< /td> |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH ), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED< /td> |
| LED backlight life, h | 50000 |
| Interface | HDMI< /td> |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C ) |
| Energy consumption, W | 12 (max.) |
