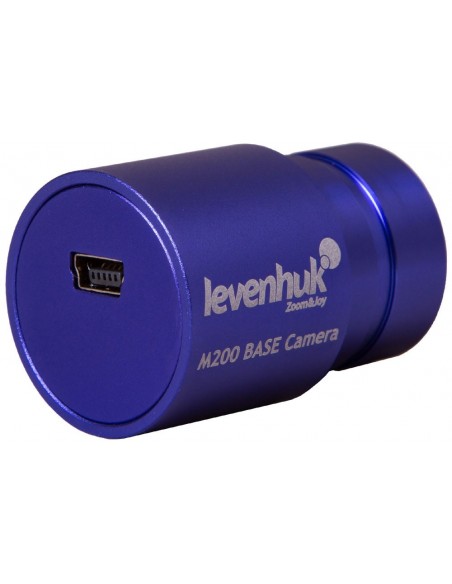

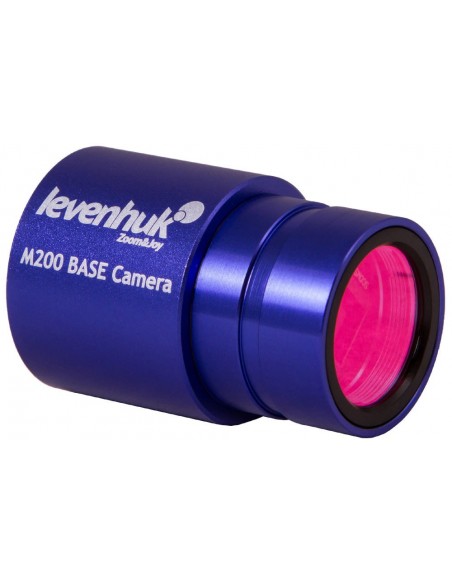

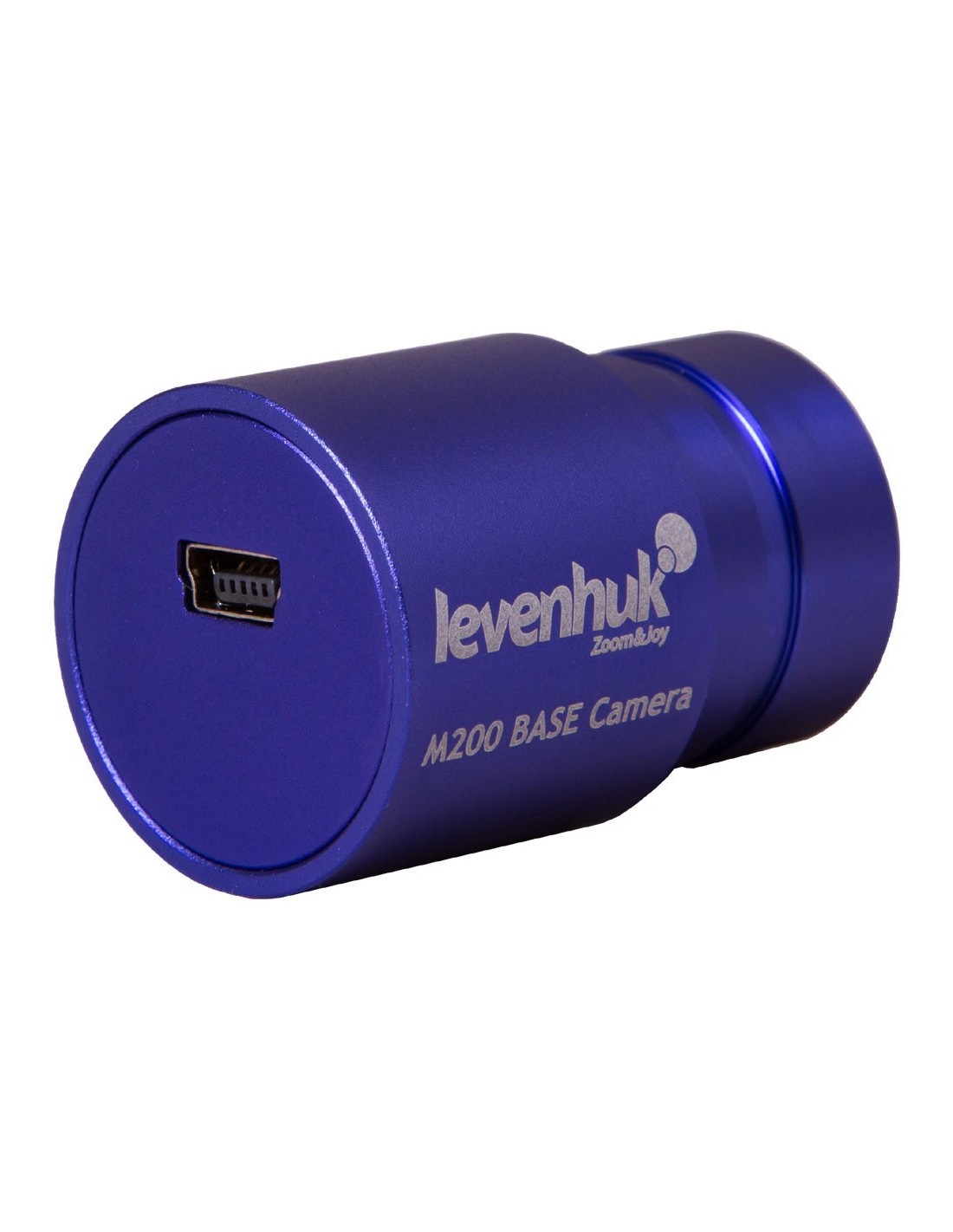

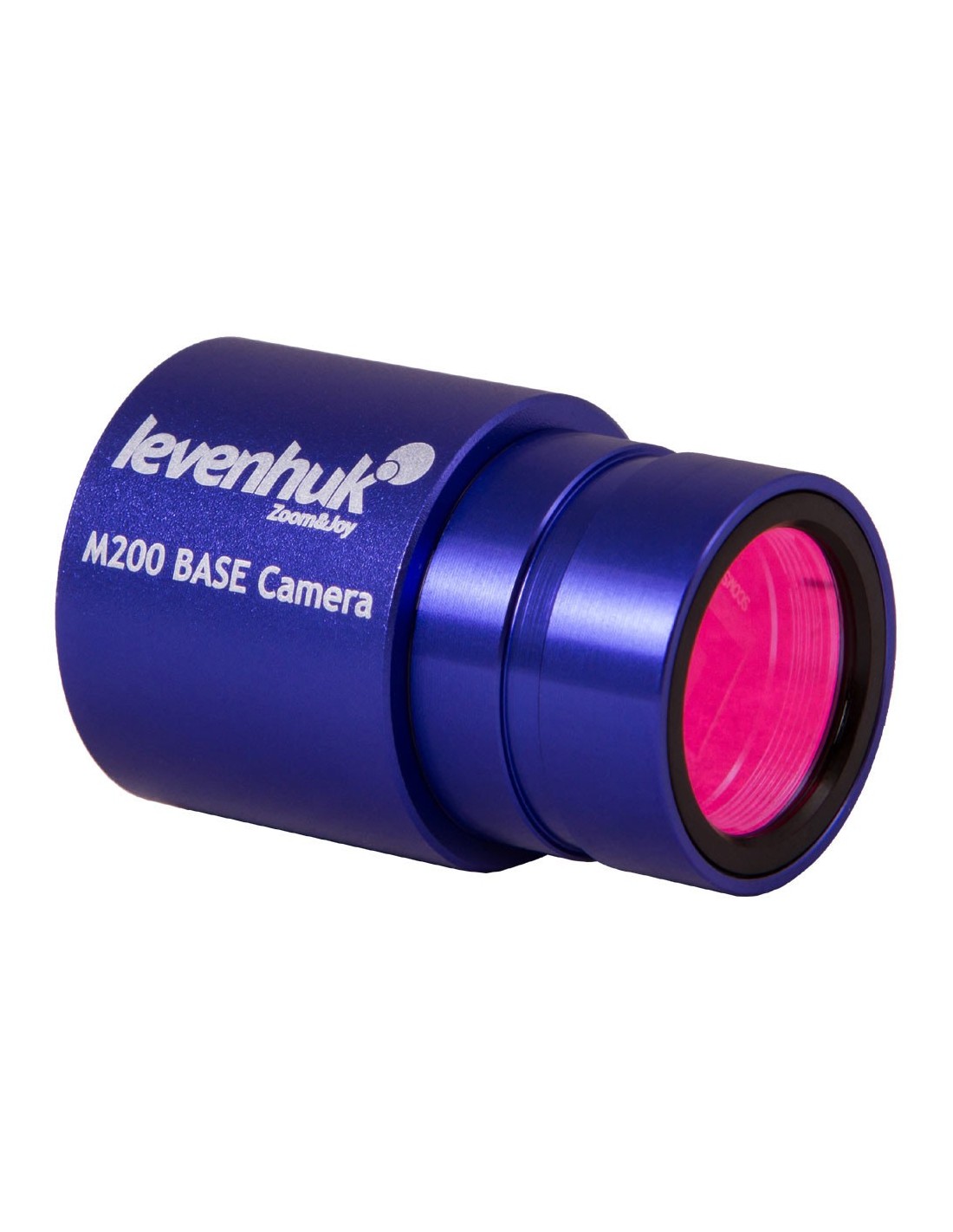

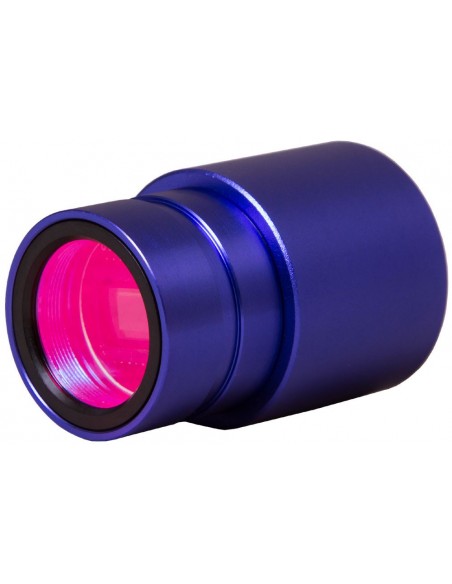

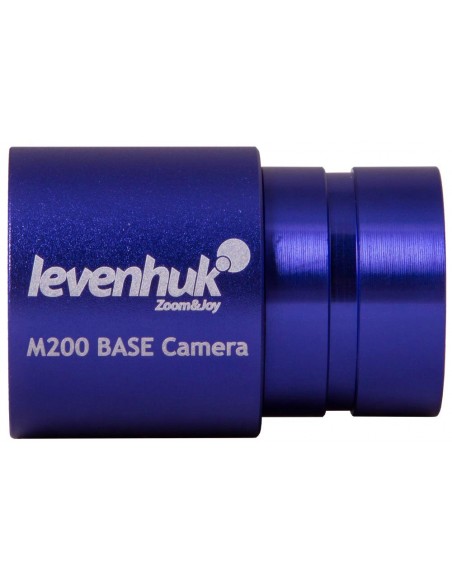

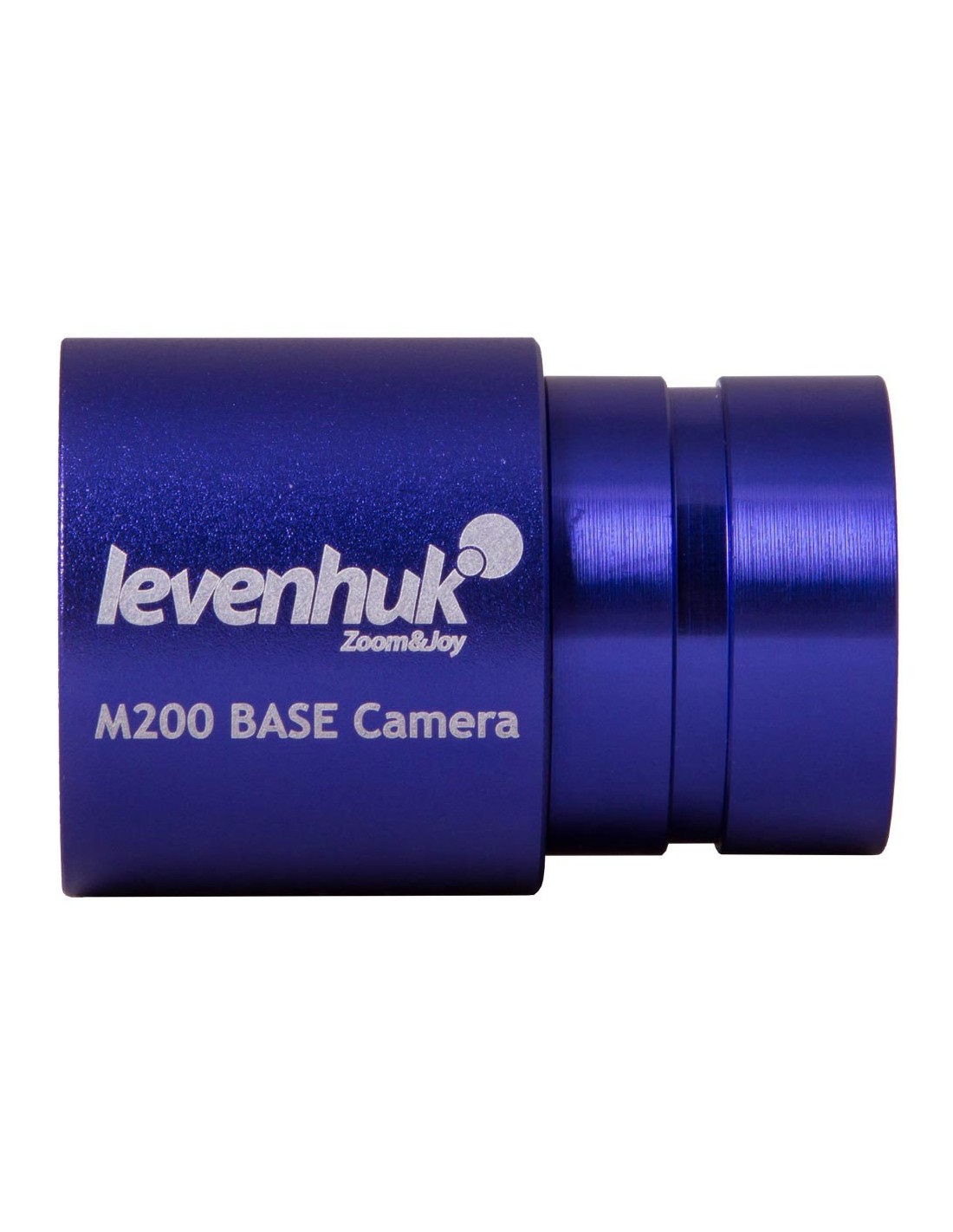

The Levenhuk M200 BASE digital camera is a modern tool for taking photos and recording videos through a microscope. The camera offers a resolution of up to 1600x1200 pixels and allows you to take videos in four different modes. The high frame rate of 20 frames per second produces smooth, high-contrast video. The package includes special Levenhuk software and a USB cable to connect the camera to your computer.
You can install the Levenhuk M200 BASE camera on any modern microscope with a 23.2 mm eyepiece tube. An adapter, which can be purchased separately, will be required for microscopes of other diameters. The camera is great for studying and science hobby. The Levenhuk M200 BASE digital camera, thanks to its ability to transmit in real time, allows it to be used in conferences and seminars. The sharpness of the image is sufficient to look through the structures of the specimens with high magnification.
The kit includes a CD with special software that allows you to edit previously saved images, enlarge them, crop them, edit contrast, etc.
To ensure the best possible performance of your new camera, make sure your computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on your computer, please contact us and specify your operating system and version (for Linux: platform and kernel version).
The latest version of Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

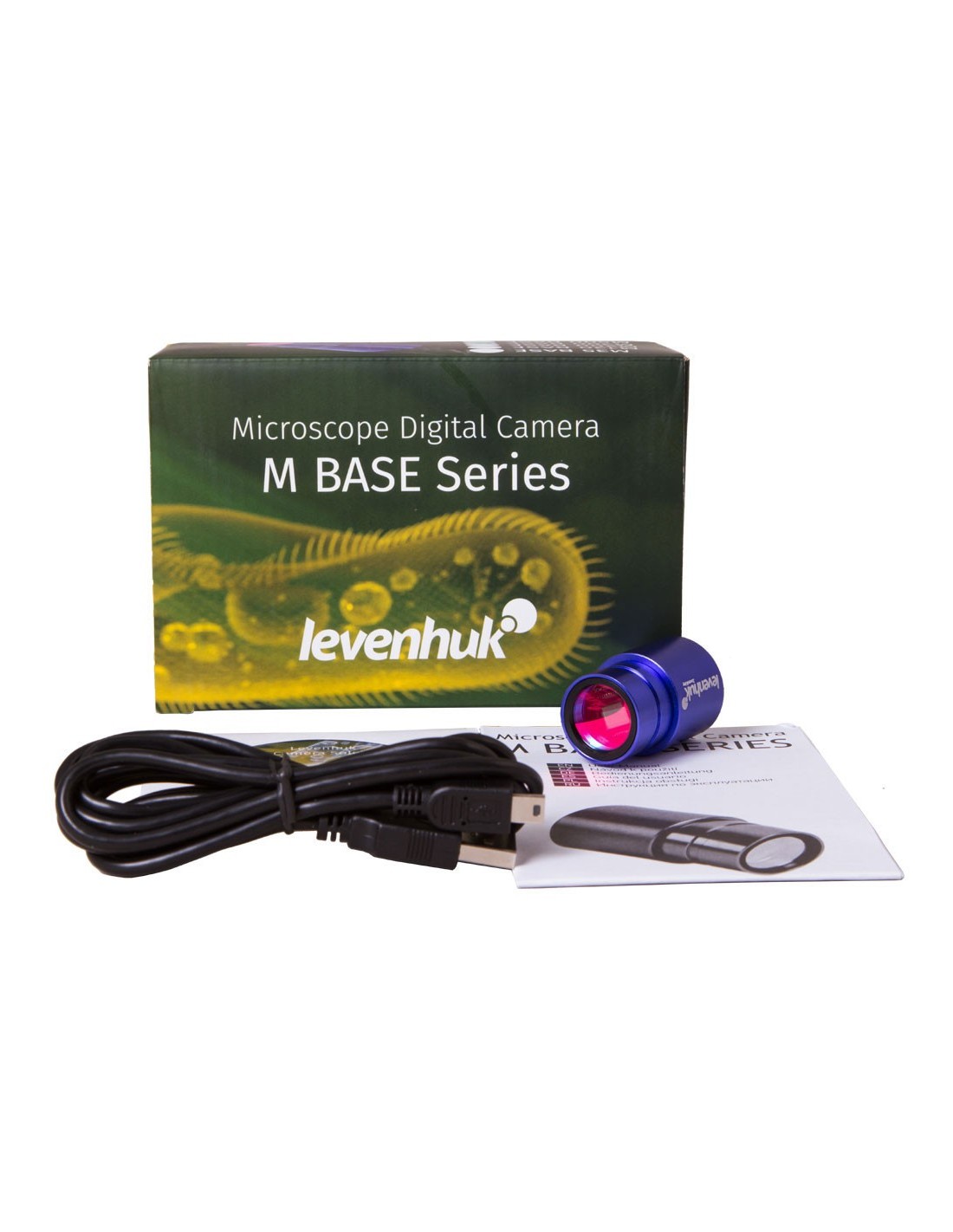

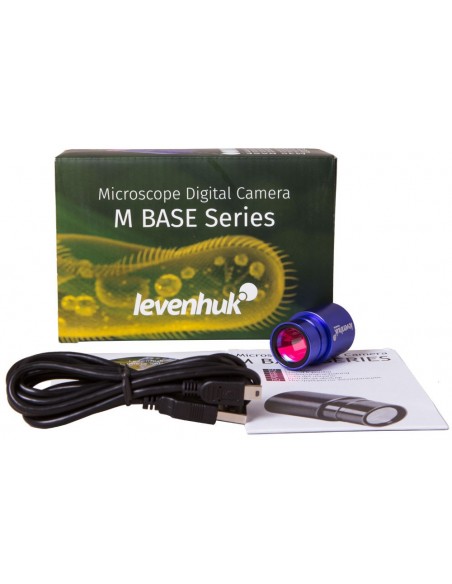

The kit includes:
- Digital camera for Levenhuk microscope
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and necessary drivers
- User Manual and Lifetime Warranty
| Brand | Levenhuk Inc., USA |
| Lifetime guarantee | |
| EAN | 5905555003405 |
| Package size (LxWxH) | 6x14x9 cm |
| Shipping weight | 0.17 kg |
| Sensor | CMOS |
| Megapixel | 2 |
| Resolution maximum, px | 1600x1200 |
| Sensor size | 1/3.2" |
| Pixel size, µm | 2.8x2.8 |
| Exposure time | automatic |
| Video recording | yes |
| Frame rate, fps@resolution | 7.5@ 1280x1024, 5@1600x1200, 7.5@1280x960, 20@800x600 |

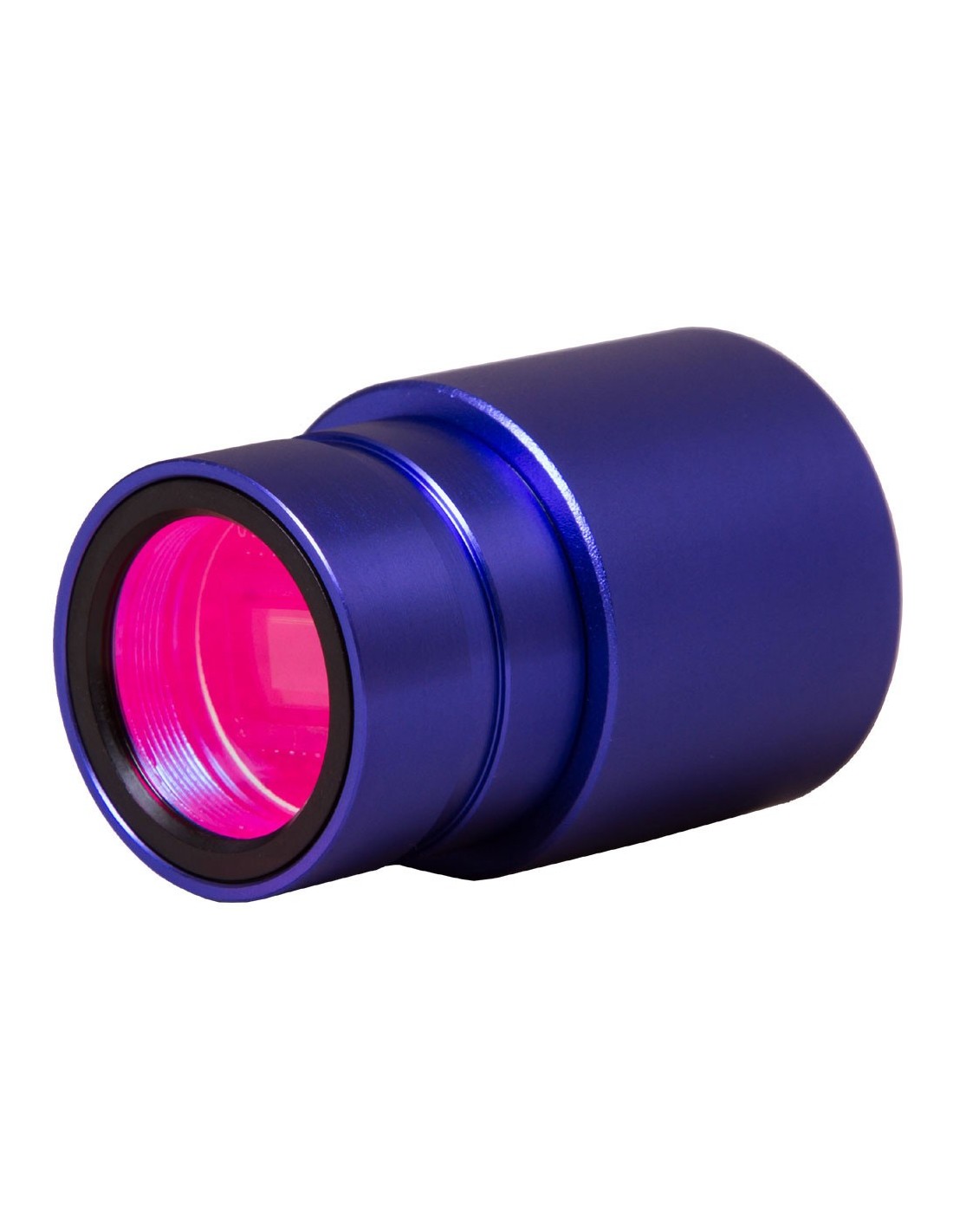

| Installation location | optical tube with a diameter of 23.2 mm instead of the current eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |

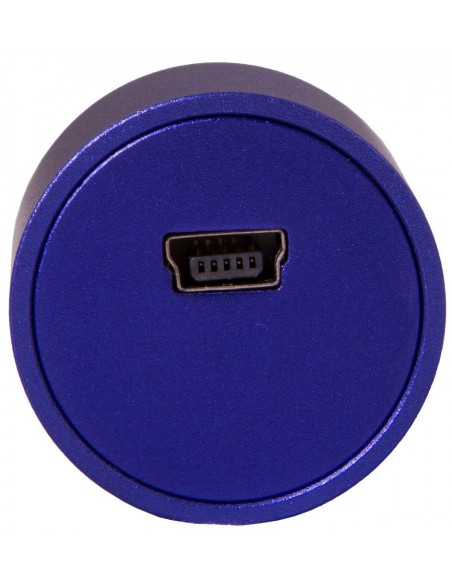

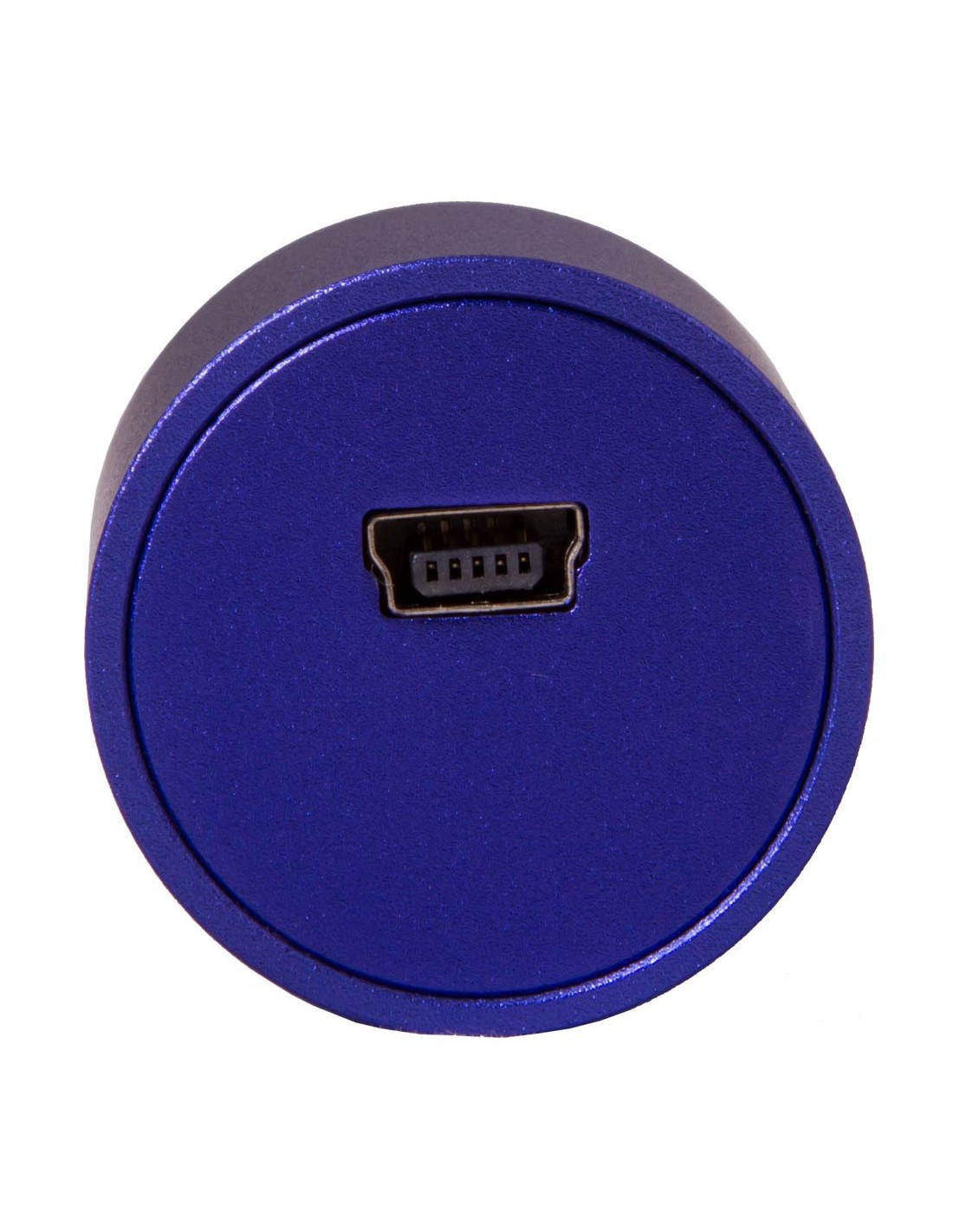

| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 ( 32 bit and 64 bit), Mac OS td>Software | Levenhuk |
| Body | metal |
| Power< /td> | USB 2.0 cable |
| Operating temperature range, °C | -10 — 50 |
